Product Specifications

Model Number	3500/25 149369-01+135473-01
Typical Power Consumption	3.2 Watts
Minimum Input Impedance	21.8 kΩ
Supply Voltage	-24 V DC
Maximum Power Consumption	7.7 W
Operating Temperature	-30 °C to +65 °C
Storage Temperature	-40 °C to +85 °C
Humidity	95% non-condensing

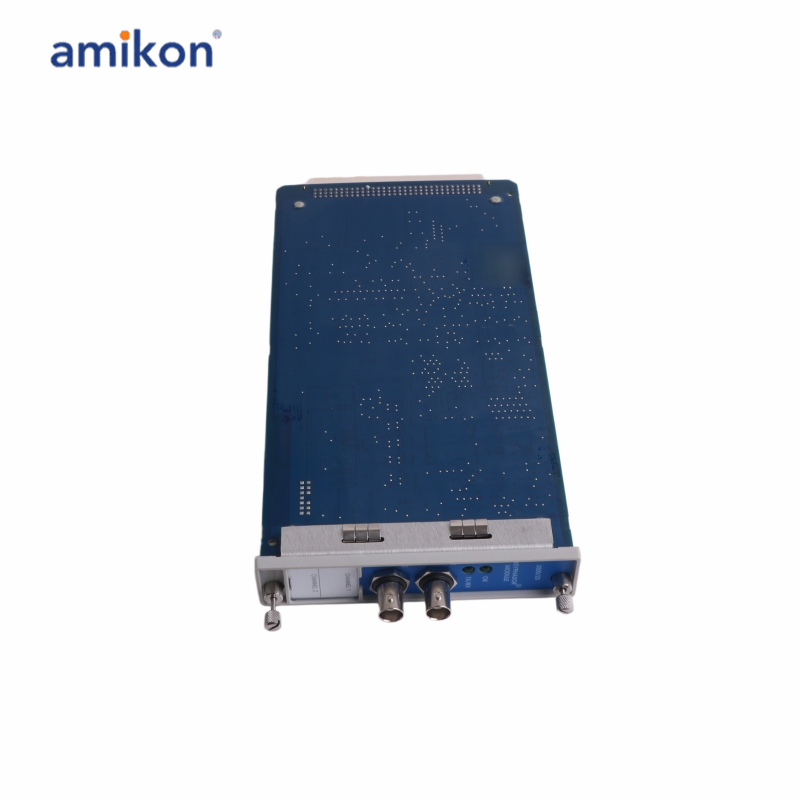

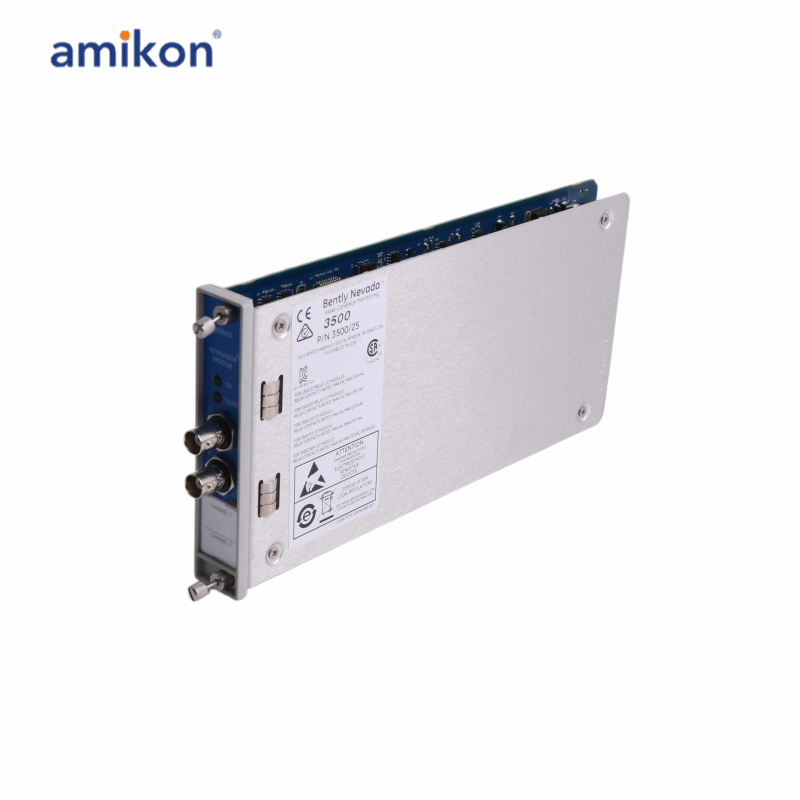

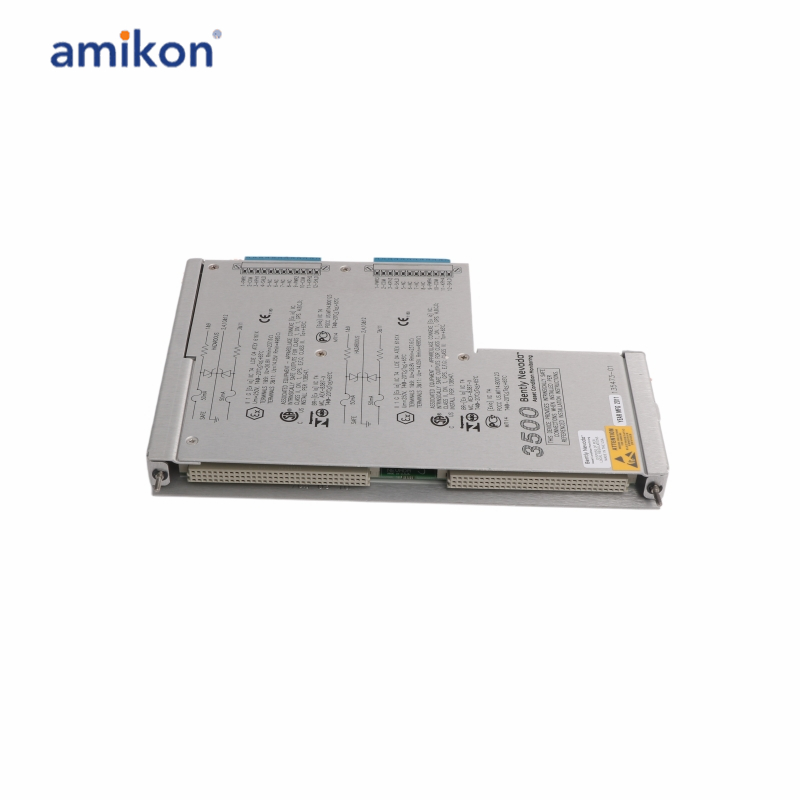

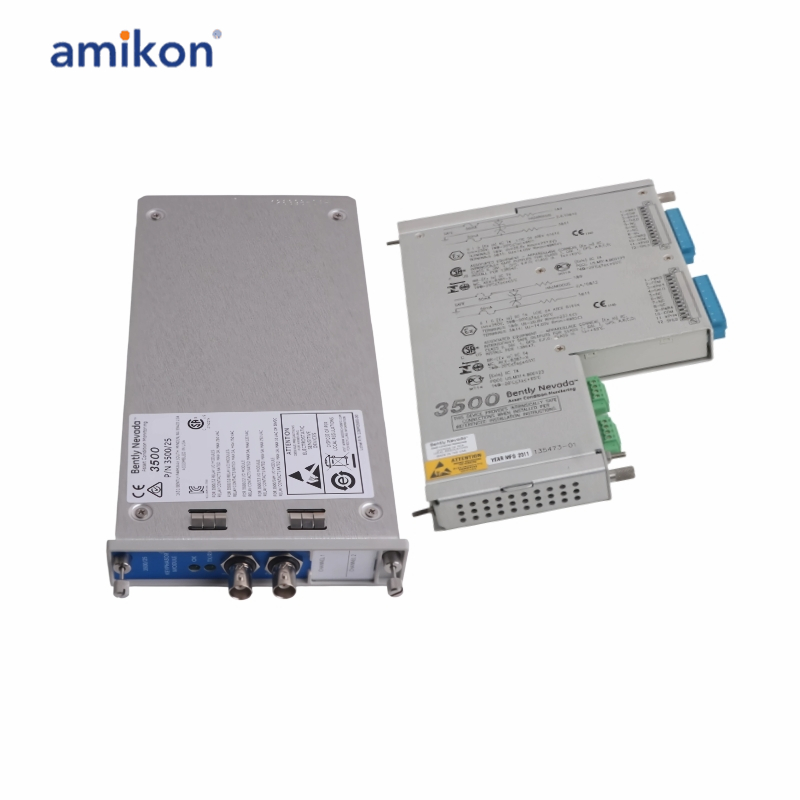

The Bently Nevada 3500/25 149369-01 is an Enhanced Keyphasor Module, part of the 3500 Machinery Protection System, used to supply speed and phase reference signals to monitoring modules. This half-height, two-channel module (often PWA 149369-01) supports magnetic pickups or proximity probes
The Bently NevadatM 3500/25 Enhanced Keyphasor Module isa half-height, two-channel module used to provideKeyphasor signals to the monitor modules in a 3500 rack. Themodule receives input signals from proximity probes ormagnetic pickups and converts the signals to digitalKeyphasor signals that indicate when the Keyphasor mark onthe shaft coincides with the Keyphasor transducer. The 3500Machinery Protection System can accept up to fourKeyphasor signals for normal configuration and up to eightKeyphasor signals in a paired configuration.

Frequently asked questions：

Q1: What is the Bently Nevada 3500/25 Enhanced Keyphasor Module?
A1: It is a module used in the 3500 monitoring system to provide precise shaft rotational position and speed reference signals for vibration analysis and machinery protection.

Q2: What is the 3500/25 typical power consumption?
A2: The 3500/25 module consumes approximately 3.2 watts during operation.

Q3: What is the 3500/25 minimum input impedance?
A3: The 3500/25 minimum input impedance is 21.8 kΩ, ensuring accurate signal acquisition from connected sensors.

Q4: What is the 3500/25 supply voltage requirement?
A4: The 3500/25 module operates on a −24 V DC power supply.

Q5: What is the 3500/25 operating temperature range?
A5: It operates within −30°C to +65°C, suitable for industrial environments.

Product Applications

Oil and Gas/Petrochemical Industry
Power Industry
Steel and Metallurgical Industry
Chemical Industry
