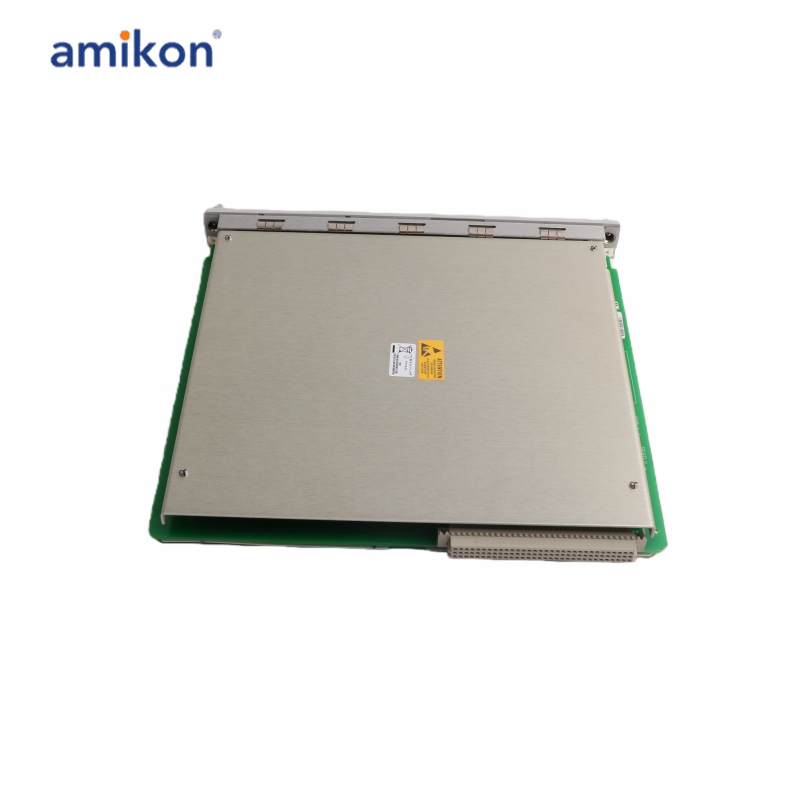

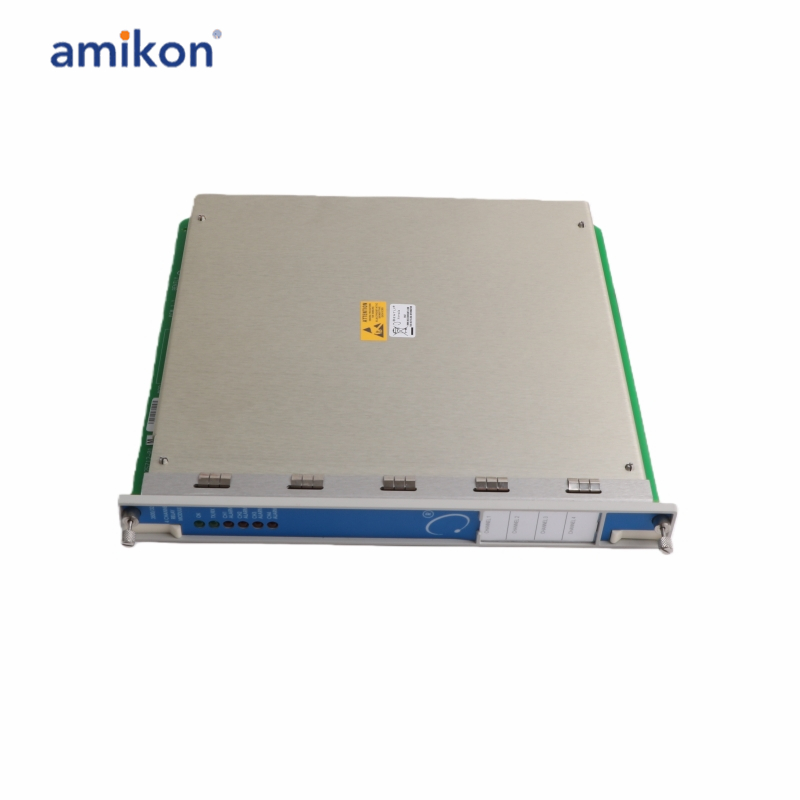

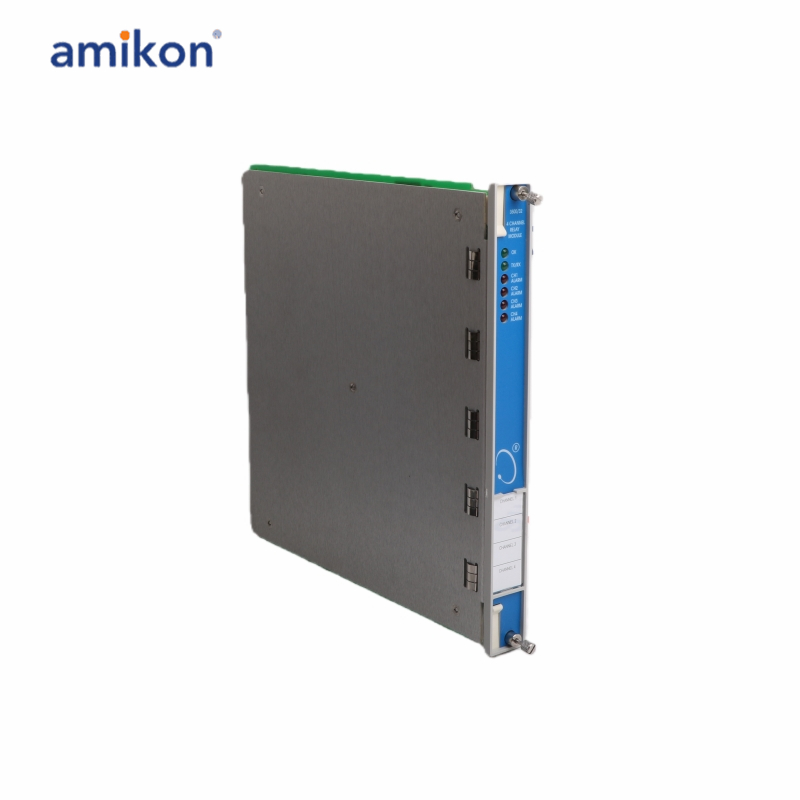

Product Specifications

Part Number	3500/32-01-01
Manufacturer	Bently Nevada
Series	3500
Product Type	4-Channel Relay Module
Operating Temperature	-30°C to +65°C(-22°F to +150°F
Storage Temperature	-40°C to +85°C(-40°F to +185°F)
Humidity	95%, non-condensing
Arc Suppressor	250 Vrms, installed as standard
Contact Life	100,000 cycles
Typical Power Consumption	5.8 Watts
Minimum Switched Current	100 mA @ 12 Vdc
Maximum Switched Voltage	250 Vac
Maximum Switched Current	2 A
Maximum Switched Power	450 VA

The 4-Channel Relay Module is a full-height module thatprovides four relay outputs. Any number of 4-Channel RelayModules can be placed in any of the slots to the right of theTransient Data Interface Module. Each output of the 4-Channel Relay Module can be independently programmed toperform voting logic.Each relay utilized on the 4-Channel Relay Module includesAlarm Drive Logic.
Programming for the Alarm Drive Logic uses AND and ORlogic, and can use alarming inputs (Alert and Dangerstatuses), Not- OK, or individual PPLs from any monitorchannel or any combination of monitor channels in the rack.You can program this Alarm Drive to meet your applicationneeds using the Bently NevadatM 3500 Rack ConfigurationSoftware.

Frequently asked questions：

Q1: What is the Bently Nevada 3500/32-01-01?
A1: It is a 4-channel relay module used in the 3500 monitoring system to provide alarm outputs and control signals for machinery protection.

Q2: What is the 3500/32-01-01 operating temperature range?
A2: The 3500/32-01-01 module operates within −30°C to +65°C (−22°F to +150°F), suitable for industrial environments.

Q3: What is the 3500/32-01-01 humidity tolerance?
A3: It supports up to 95% relative humidity, non-condensing.

Q4: What is the arc suppressor specification?
A4: A 250 Vrms arc suppressor is installed as standard, helping protect relay contacts and extend service life.

Q5: What is the 3500/32-01-01 contact life of the relay?
A5: The 3500/32-01-01 relay contacts are rated for approximately 100,000 cycles under normal operating conditions.

Product Applications

Oil and Gas
Petrochemicals
Power Plants
Metallurgy
Chemical Industry
Paper & Printing
