Power Consumption: 7.7 W (Typical)
Standard I/O Impedance: 10 kΩ
Transducer Power Supply: -24 V DC
Recorder Output: +4 to +20 mA
Voltage Compliance (Current Output): 0 to +12 V DC
Output Impedance:
Standard: 550 Ω
Shaft Absolute: 300 Ω
Radial Vibration Sensitivity: 3.94 mV/μm (100 mV/mil)
Thrust Sensitivity: 3.94 mV/μm (100 mV/mil)
Gap Filter: -3 dB at 0.09 Hz
Direct Filter: -3 dB at 1.2 Hz
Not 1X Filter: 60 cpm to 15.8× running speed
Gap Filter Alternate: -3 dB at 0.41 Hz
Accuracy:
Within ±0.33%

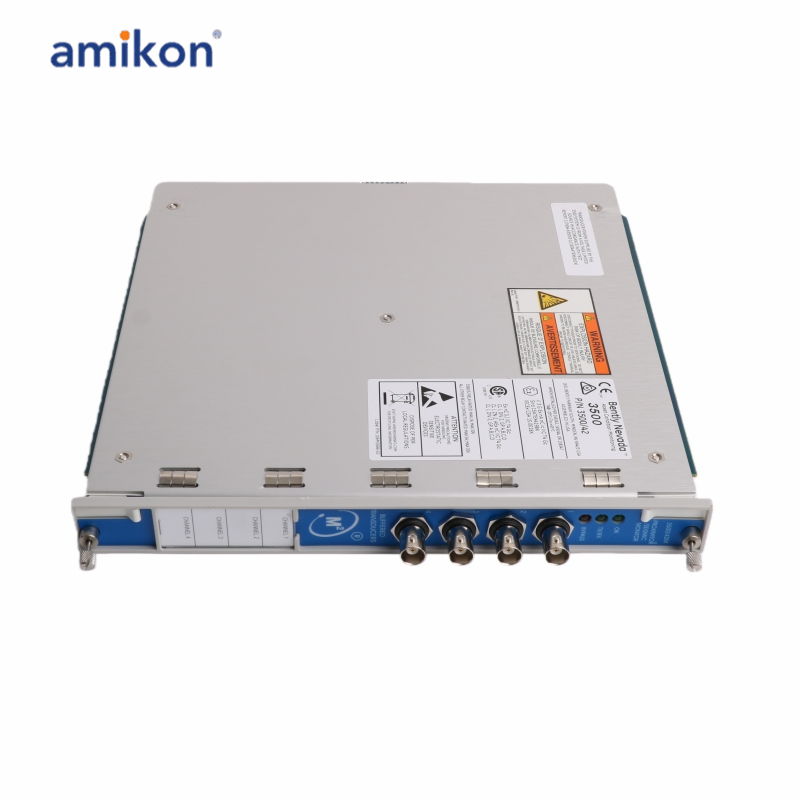

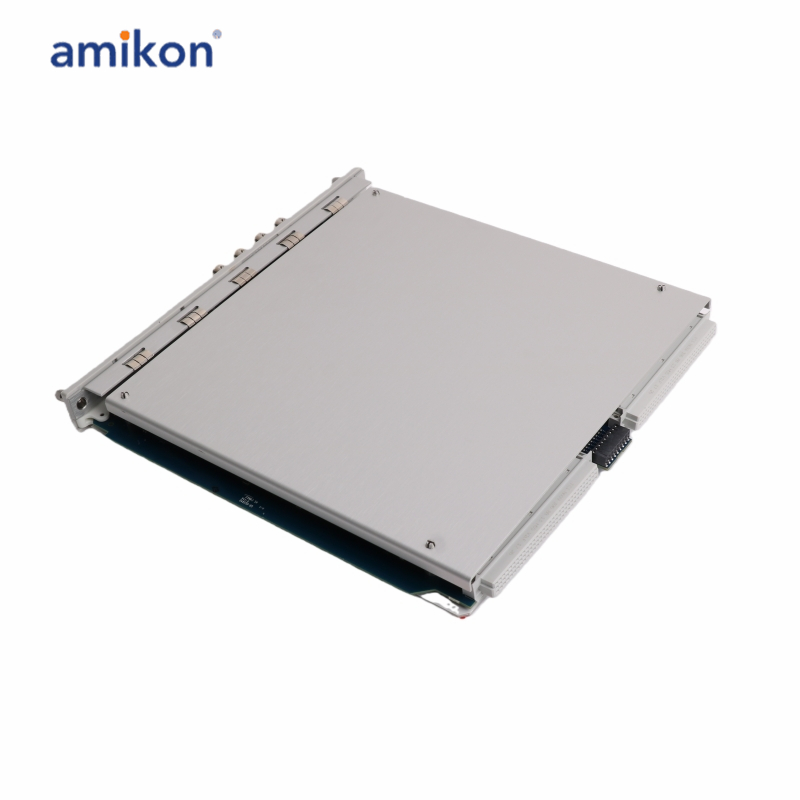

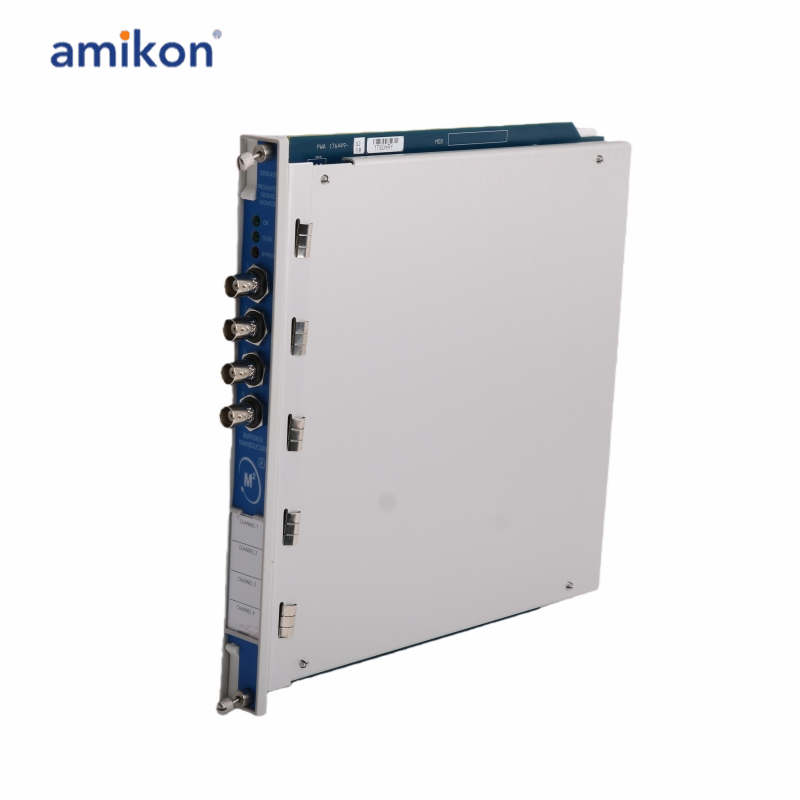

The Bently Nevada 3500/42 Series Proximitor /Seismic Monitor Modules are four channel monitor that accepts input from Proximitor and Seismic Transducers and uses this input to drive alarms. The monitor can be programmed using the 3500 Rack Configuration Software to perform any of the following functions: Radial Vibration, Thrust Position, Eccentricity, Differential Expansion, Acceleration, and Velocity. The monitor can receive input from many types of transducers including the following Bently Nevada transducers: Proximitor Transducers, Acceleration, and Velocity.
The primary purpose of the 3500/42 monitor is to provide 1) machinery protection by continuously comparing current machine vibration against configured alarm setpoints to drive alarms and, 2) essential machine vibration information to both operator and maintenance personnel. Alarm setpoints are configured using the 3500 Rack Configuration Software. Alarm setpoints can be configured for each active proportional value and danger setpoints can be configured for two of the active proportional values.
