Input Impedance:
20 kΩ (Standard)
40 kΩ (TMR)
7.15 kΩ (Internal Barrier)
Power Consumption: 5.8 W (Typical)
Transducer Power Supply: -24 V DC
Recorder Output: +4 to +20 mA
Voltage Compliance (Current Output): 0 to +12 V DC
Resolution: 0.3662 µA per bit ±0.25%
Output Impedance: 550 Ω
Signal Conditioning: Specified at +25°C (+77°F)
RPM/Min Accuracy: ±20 rpm/min
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Humidity: 95%, non-condensing

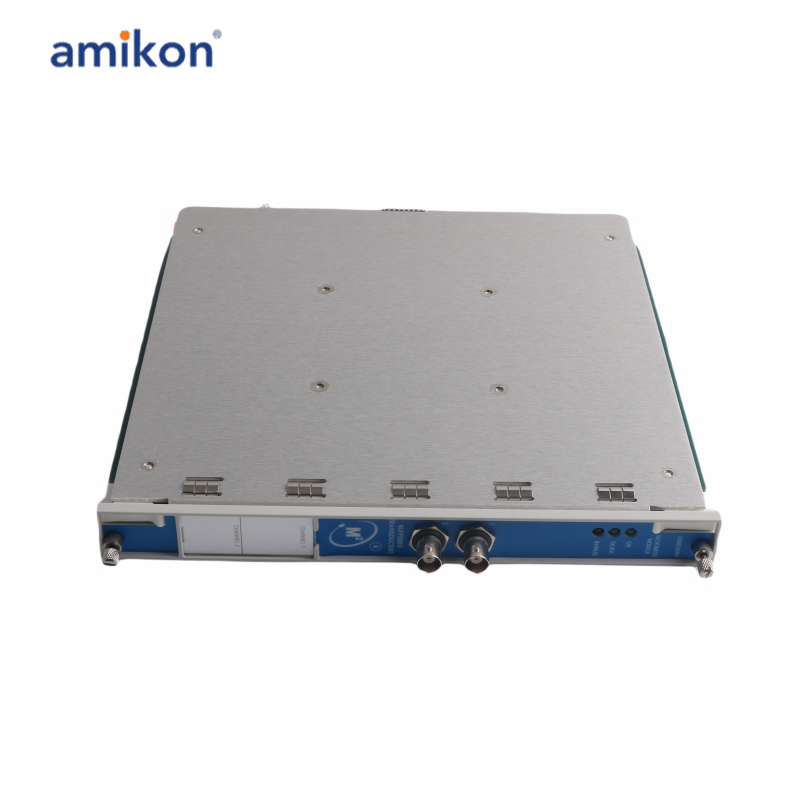

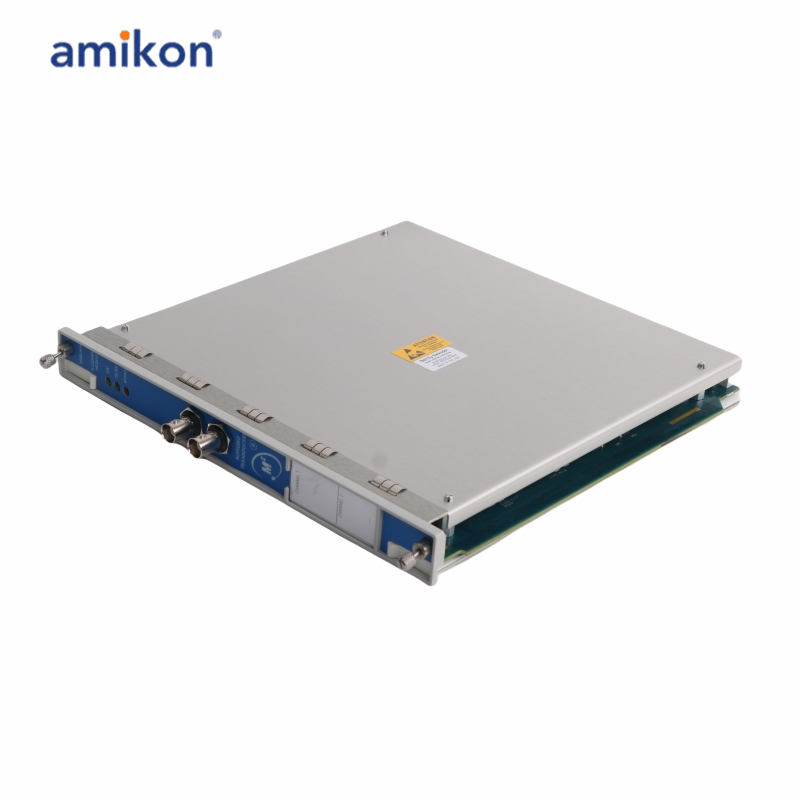

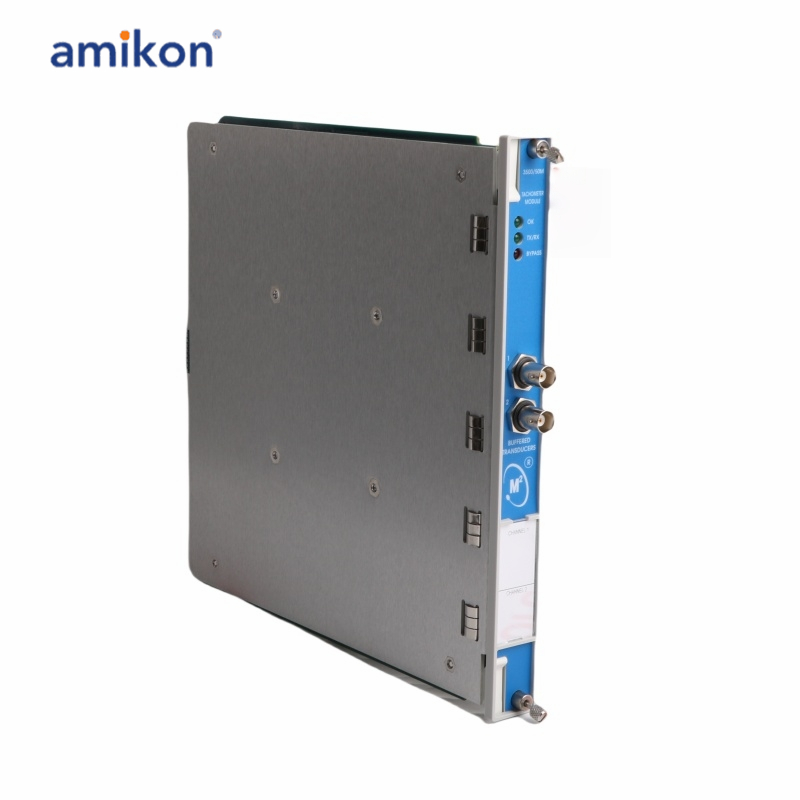

The 350050 Tachometer Module is a 2-channel modulethat accepts input from proximity probes or magneticpickups (except as noted) to determine shaft rotativespeed, rotor acceleration, or rotor direction, comparesthese measurements against user-programmable alarmsetpoints, and generates alams when these setpoints areviolated.
The 3500/50 can be configured to supply conditionedKeyphasor® signals to the backplane of the 3500 rack foruse by other monitors, thus eliminating the need for aseparate Keyphasor@ module in the rack. The 3500150also has a peak hold feature that stores the highest speedhighest reverse speed, or number of reverse rotations(depending on channel type selected) that the machine hasreached. These peak values can be reset by the user.
