Product Specifications

Part Number	DGSL-12-30-PA
Operating Pressure	0.1～0.8 MPa（1～8 bar）
Max Speed	0.8 m/s
Repetition Accuracy	0.3 mm
Operation Type	Double-acting
Ambient Temperature	0℃～60℃
End Position Impact Energy	0.25 Nm
Cushioning Length	1 mm
Max Radial Force Fy	1075 N
Max Radial Force Fz	1075 N
Max Moment Mx	15 Nm
Max Moment My	10 Nm
Max Moment Mz	10 Nm
Return Stroke Theoretical Force @0.6 MPa(6 bar/87 psi)	104 N

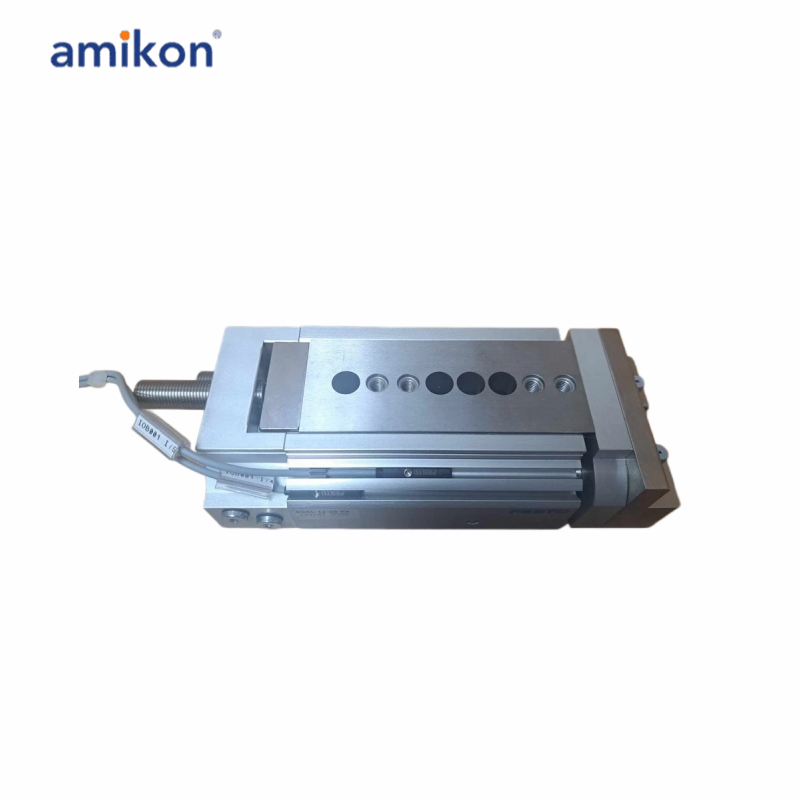

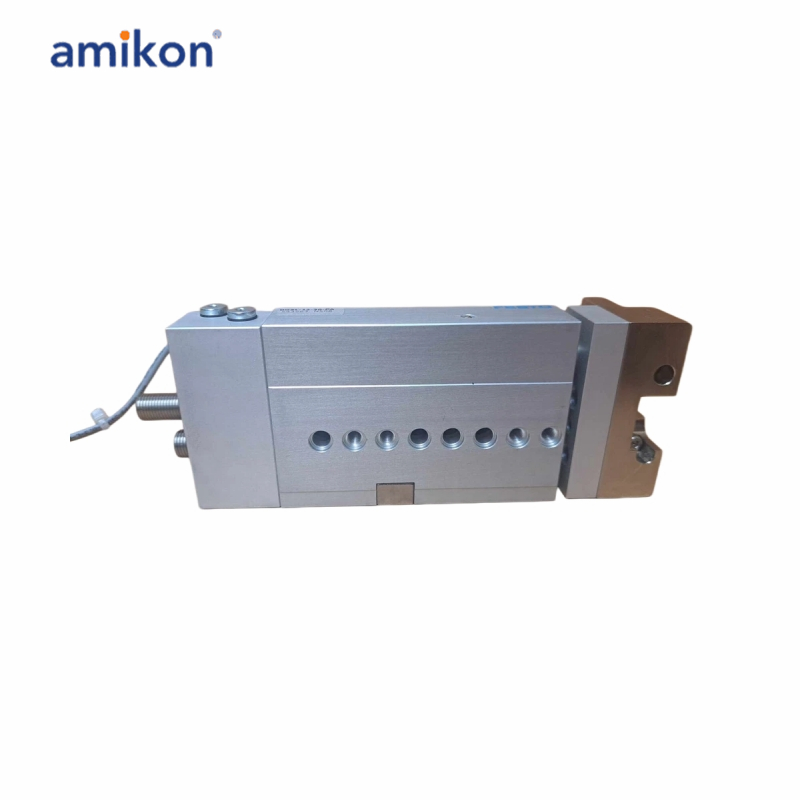

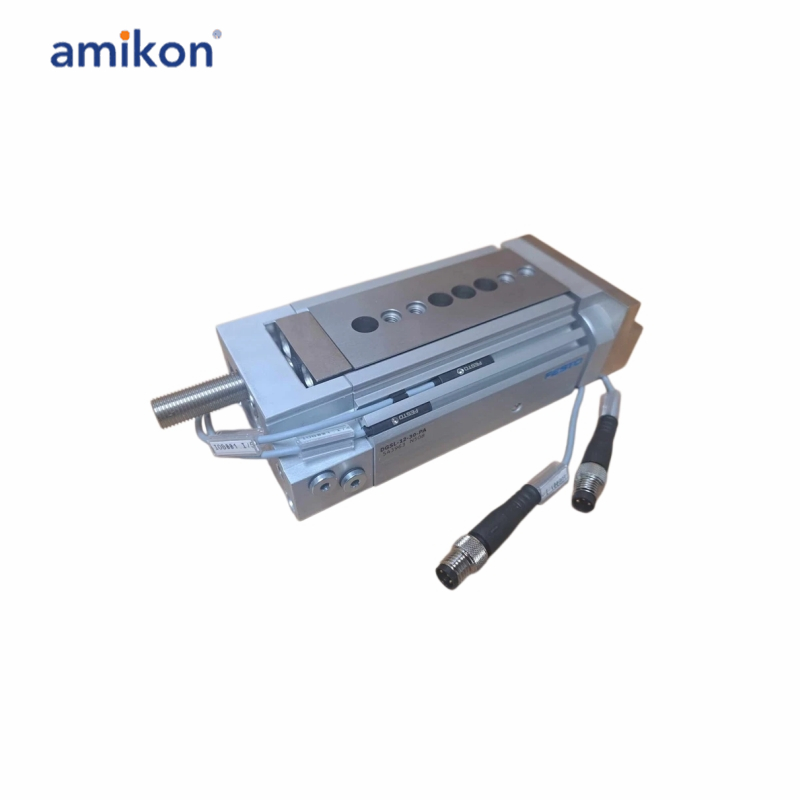

The Festo DGSL-12-30-PA Mini Slide is a compact pneumatic linear actuator designed for precise guiding and positioning tasks in automated machinery. Featuring a 30 mm stroke and a ball bearing cage guide system, it delivers smooth motion, high load capacity, and excellent repeatability. The double-acting actuator operates with compressed air pressures from 0.1 MPa to 0.8 MPa and provides theoretical forces up to 121 N at 6 bar. Its compact aluminum construction and stainless-steel piston rod make it suitable for space-constrained applications, including assembly equipment, material handling systems, electronics manufacturing, and packaging machinery. The integrated proximity-switch position detection capability further enhances control accuracy and system reliability.

Frequently asked questions：

Q1: What is the Festo DGSL-12-30-PA used for?
A1: The DGSL-12-30-PA is a compact pneumatic mini slide used for precision linear motion, positioning, and handling applications in industrial systems.

Q2: What is the stroke length of the DGSL-12-30-PA?
A2: The DGSL-12-30-PA actuator provides a stroke length of 30 mm.

Q3: What operating pressure range does the DGSL-12-30-PA mini slide support?
A3: The DGSL-12-30-PA operating pressure range is 0.1 MPa to 0.8 MPa (1 to 8 bar).

Q4: What guide system is used in the DGSL-12-30-PA?
A4: The actuator uses a ball bearing cage guide, providing smooth movement and high positioning accuracy.

Q5: What is the DGSL-12-30-PA maximum operating speed?
A5: The DGSL-12-30-PA maximum operating speed is 0.8 m/s.

Product Applications

Electronics and Semiconductor Industry
Automotive and Parts Manufacturing
Lithium-ion Battery and New Energy Manufacturing
Food Packaging and Consumer Goods Industry

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
