Product Specifications

Part Number	729798-01
Series	XHI 861
Shaft Specification	016 mm blind hollow shaft
Resolution	1024 pulses per revolution (ppr)
Supply Voltage	9～30 VDC
Output Type	High Current HTL(HCHTL)
Signal Channels	6 Channel(S00,S00,S90,S90,Sref,Sref)
Cable Entry	Cable Gland (Radial direction)
Mount Flange	86-flange
Torque Arm	120° orientation
Operating Temperature	-20℃～+85℃
Vibration Resistance	≤20 g，55～2000 Hz（IEC 60068-2-64）
Shock Resistance	≤400 g，3.5 ms（IEC 60068-2-27）
Max Rotating Speed	6000 rpm
Max Incremental Output Load	±40 mA
Max Output Frequency	200 kHz
Max Cable Length	350 m @100 kHz
Phase Shift	90 ºel ± 25 ºel

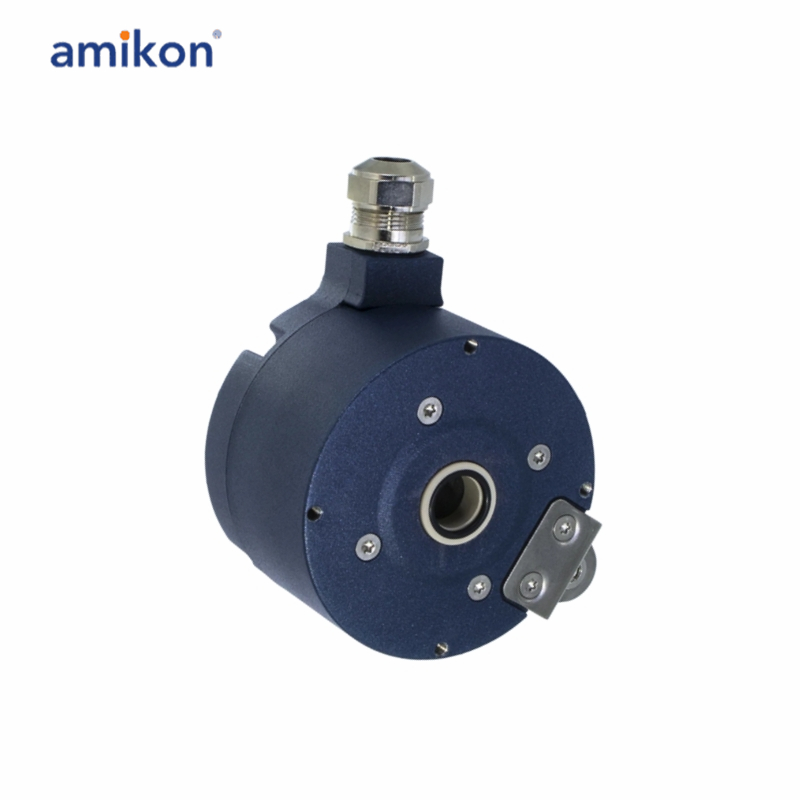

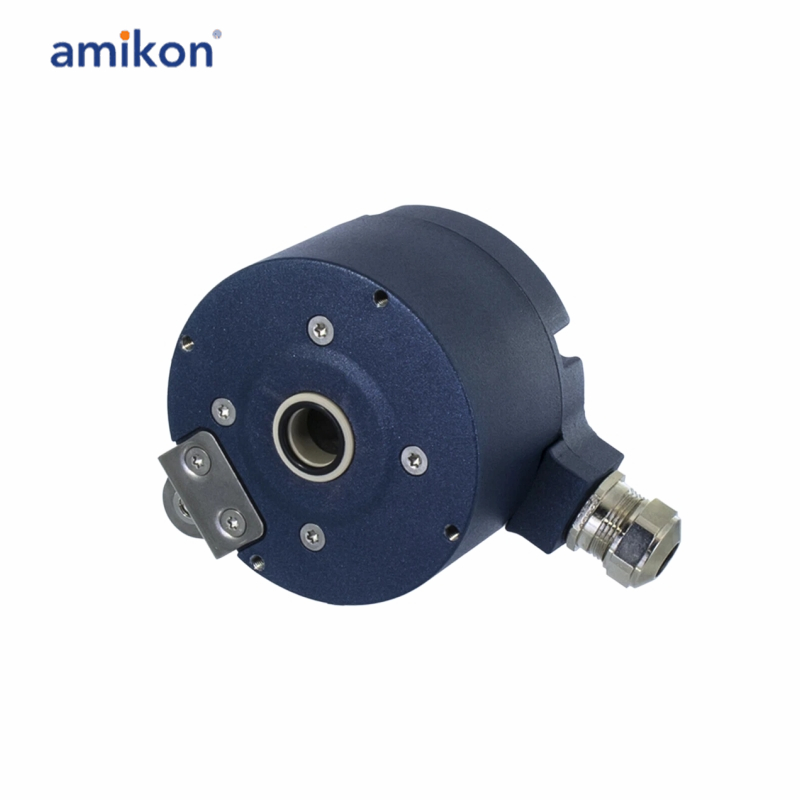

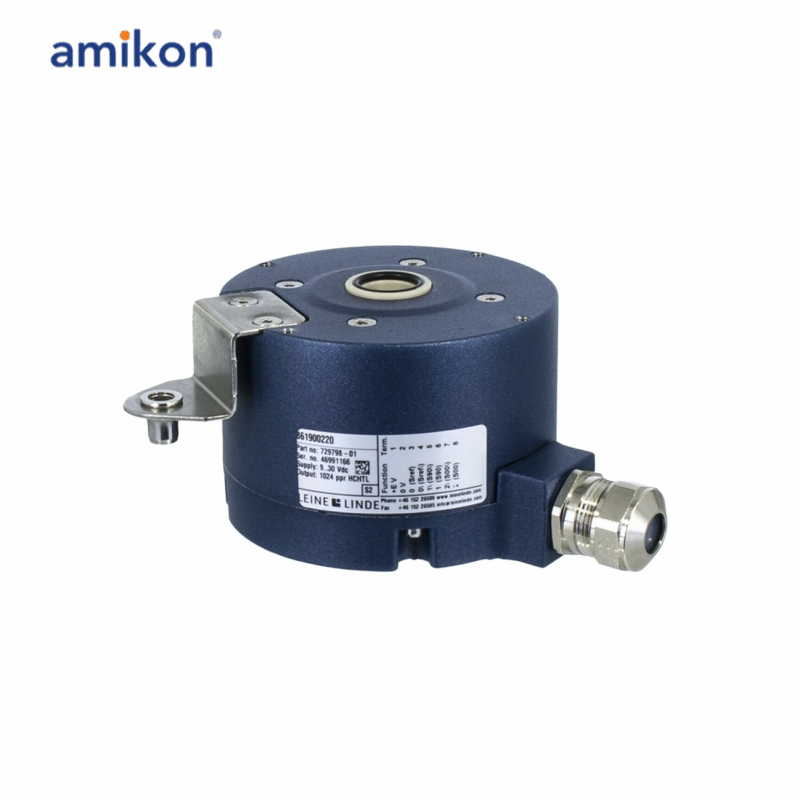

729798-01 is a heavy-duty incremental hollow shaft encoder designed for demanding industrial applications requiring precise speed and position feedback. The encoder features a rugged mechanical design with excellent resistance to vibration, shock, dust, moisture, and harsh operating conditions, making it ideal for steel mills, mining equipment, cranes, conveyors, marine systems, and other heavy industries.
The encoder utilizes a Ø16 mm blind hollow shaft and delivers a resolution of 1024 pulses per revolution (PPR). It operates from a wide 9–30 VDC power supply and provides High Current HTL (HCHTL) output signals for reliable long-distance transmission and superior noise immunity.

Frequently asked questions：

1. What is the 729798-01 encoder used for?
The 729798-01 is a heavy-duty incremental hollow shaft encoder used for speed measurement, position feedback, and motion control in industrial systems. It is particularly suitable for heavy industries such as steel production, mining, cranes, conveyors, and marine applications.

2. What type of encoder is the 729798-01?
The encoder is an XHI series incremental hollow shaft encoder featuring a Ø16 mm blind hollow shaft design and a resolution of 1024 pulses per revolution (PPR).

3. What is the 729798-01 operating voltage range?
The encoder operates from a wide supply voltage range of 9 to 30 VDC, making it compatible with most industrial control systems.

4. What output signal does the 729798-01 encoder provide?
The 729798-01 provides High Current HTL (HCHTL) output signals, offering excellent noise immunity and reliable signal transmission over long cable distances.

Product Applications

Steel and metal processing plants
Mining machinery
Cranes and hoisting systems
Conveyors and material handling equipment
Pulp and paper industries
Marine and offshore installations
Heavy-duty motor control systems
