Product Specifications

Part Number	38B5786X092
Type	Single Acting Reverse Relay
Operating Temperature Range	-40°C to 85°C (-40°F to 185°F)
Maximum Supply Pressure	100 psig (6.9 bar)
Air Connection	1/4-18 NPT Internal Thread
Steady State Air Consumption	0.38 normal m³/hr (13.4 scfh)

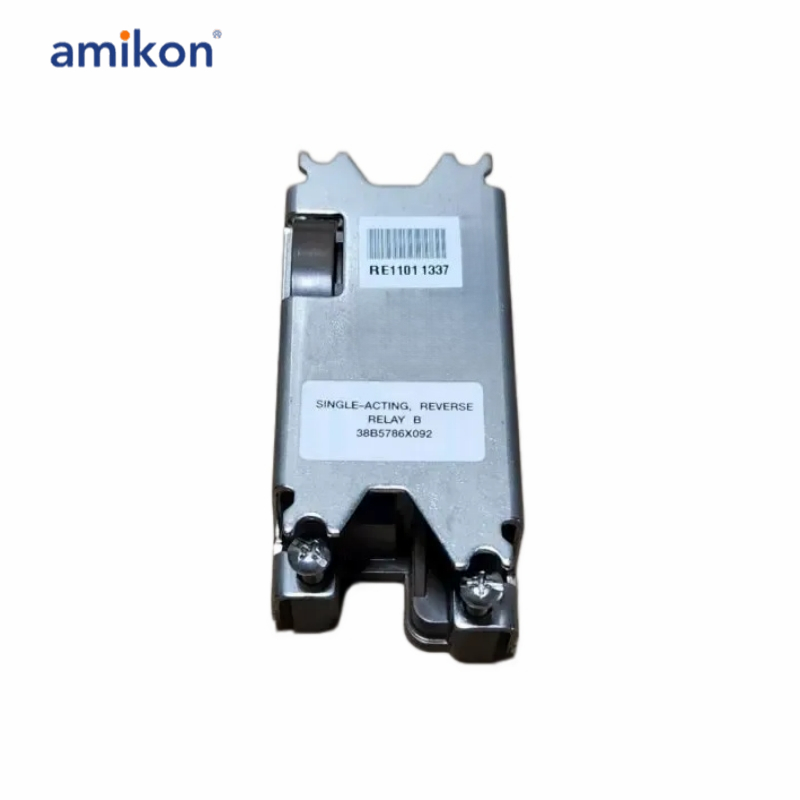

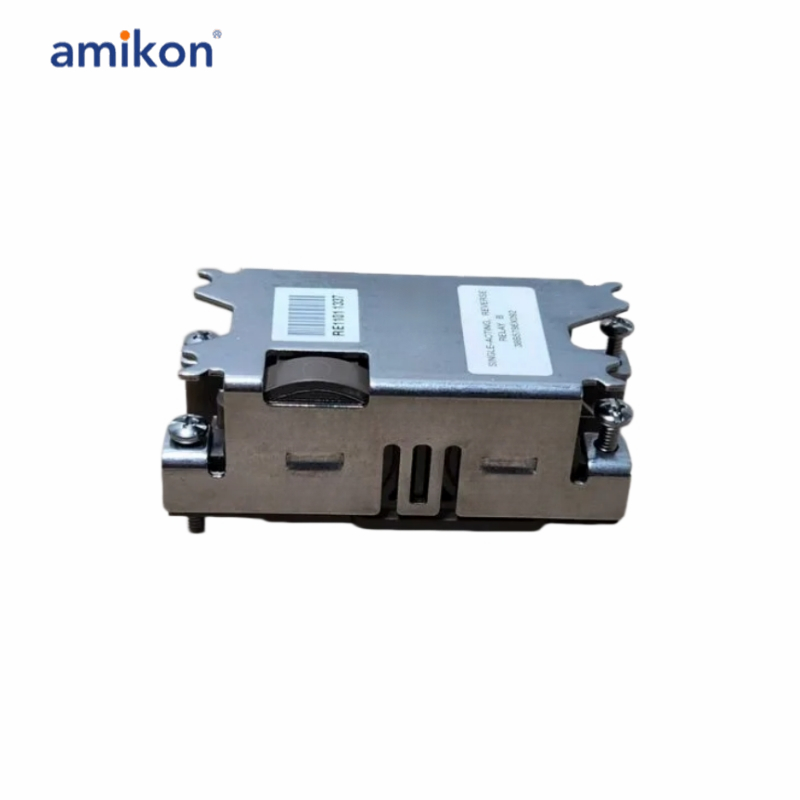

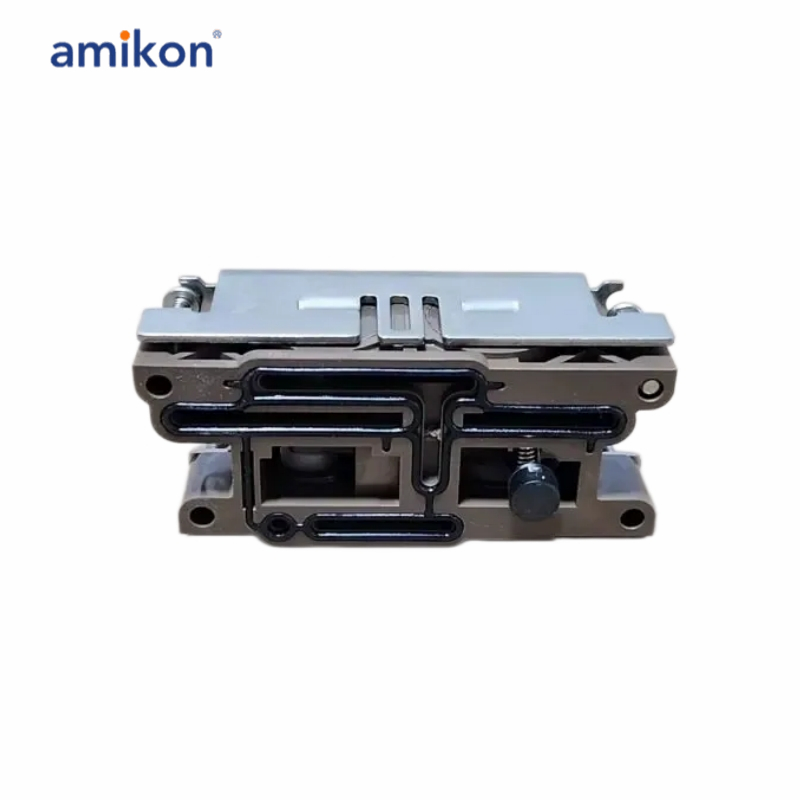

The Fisher 38B5786X092 is a premium, genuine single-acting reverse relay assembly engineered specifically for Fisher FIELDVUE DVC6200 and DVC6205 series intelligent valve positioners.Designed to withstand the most demanding processing environments, this high-performance relay operates flawlessly within a wide temperature range from -40°C to 85°C (-40°F to 185°F). It supports a maximum supply pressure of up to 100 psig (6.9 bar), providing robust and accurate pressure output to drive single-acting pneumatic actuators.

Frequently asked questions：

Q1: What is the Fisher 38B5786X092 Single Acting Reverse Relay used for?
A1: The Fisher 38B5786X092 Single Acting Reverse Relay is a pneumatic control device used to reverse pneumatic output signals in industrial control systems. It is commonly installed with control valves and actuators to improve response and ensure reliable pneumatic signal transmission.

Q2: What is the 38B5786X092 operating temperature range of the relay?
A2: The 38B5786X092 relay operates within a temperature range of -40°C to +85°C (-40°F to +185°F), making it suitable for harsh industrial environments.

Q3: What is the 38B5786X092 maximum supply pressure?
A3: The 38B5786X092 maximum allowable supply pressure is 100 psig (6.9 bar), providing sufficient pneumatic power for reliable valve and actuator operation.

Q4: What type of air connection does the 38B5786X092 relay use?
A4: The 38B5786X092 relay is equipped with a 1/4-18 NPT internal thread air connection, allowing easy integration with standard industrial pneumatic piping.

Product Applications

Oil & Gas
Chemical & Petrochemical
Power Generation
Water & Wastewater
Metallurgy & Steel
Cement & Mining

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
