Product Specifications

Part Number	38B6041X152
Input Control Signal	4-20 mA DC
Minimum Drive Current	3.5 mA
Digital Communication Protocol	Overlay with upper-layer HART 5 / HART 7 protocol
Maximum Air Supply Pressure	145 PSI (10.0 bar / 1.0 MPa)
Minimum Air Supply Pressure	0.2-0.3 bar
Operating Ambient Temperature	-40°C to 85°C (-40°F to 185°F)

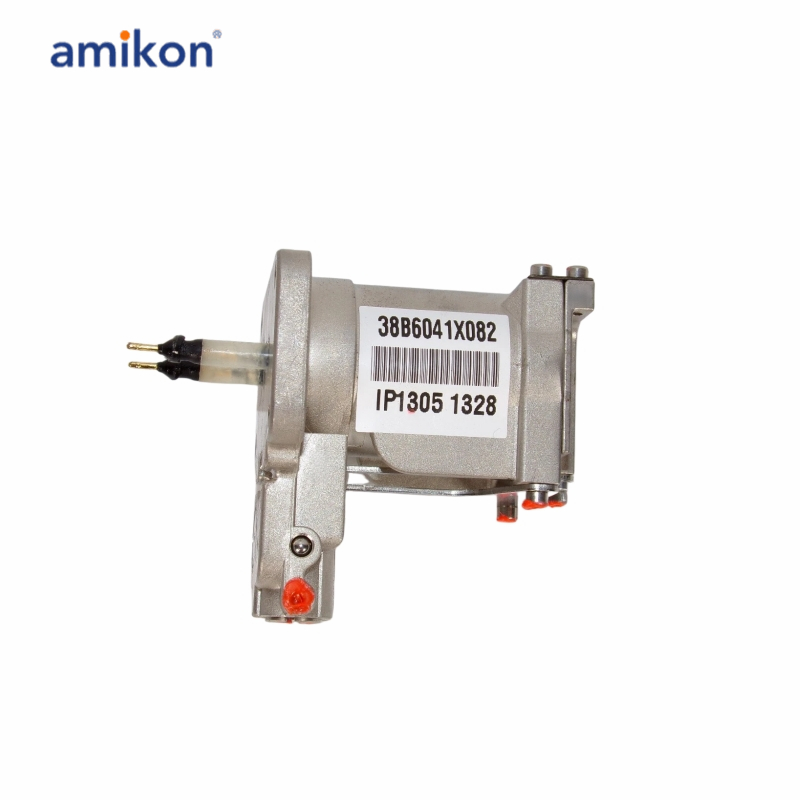

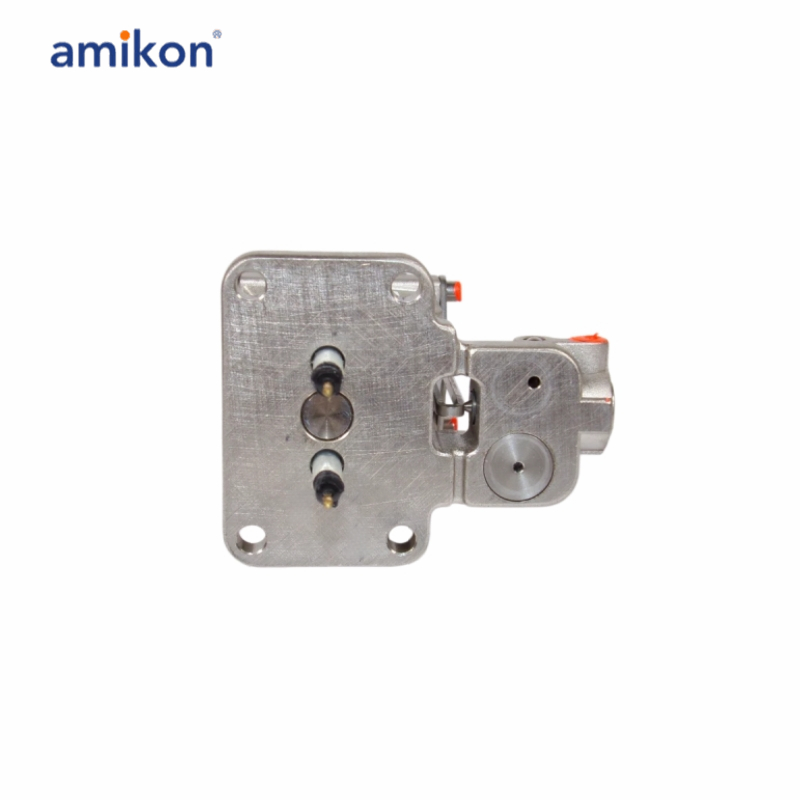

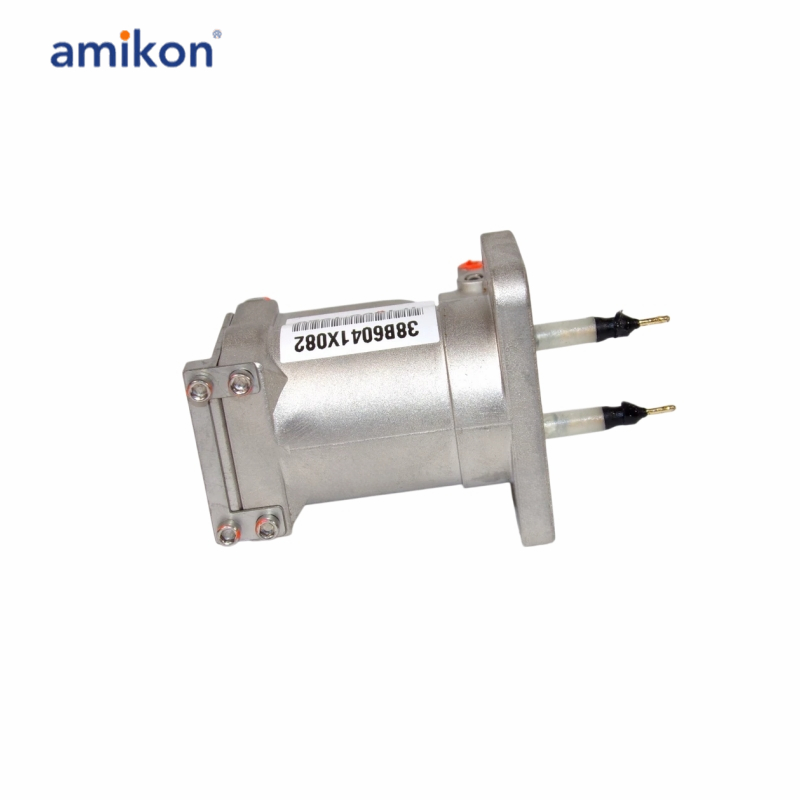

The Fisher 38B6041X152 I/P Assembly Shroud is a precision electro-pneumatic interface assembly designed for use with Fisher control valves and valve positioners in industrial process control systems. It converts standard 4–20 mA DC control signals into proportional pneumatic output while supporting HART 5 and HART 7 digital communication overlays for advanced diagnostics, configuration, and remote asset management. With a minimum drive current of just 3.5 mA, the assembly ensures responsive and accurate valve control across a wide range of operating conditions.

Frequently asked questions：

Q1: What is the Fisher 38B6041X152 I/P Assembly Shroud used for?
A1: The Fisher 38B6041X152 I/P Assembly Shroud is used as part of an I/P (current-to-pressure) converter assembly. It helps protect internal components while supporting the conversion of electrical current signals into proportional pneumatic output signals for valve and actuator control.

Q2: What input control signal does the I/P assembly support?
A2: The 38B6041X152 assembly accepts a standard 4–20 mA DC input control signal, making it compatible with most industrial control systems and transmitters.

Q3: What is the 38B6041X152 minimum drive current required?
A3: The 38B6041X152 minimum drive current required is 3.5 mA, ensuring reliable operation at the lower end of the input signal range.

Q4: What is the 38B6041X152 operating ambient temperature range?
A4: The 38B6041X152 operating ambient temperature range is -40°C to +85°C (-40°F to +185°F), allowing dependable performance in harsh industrial environments.

Product Applications

Oil & Gas
Chemical Industry
Power Generation
