Product Specifications

Part Number	DS200TCCAG1AJB
Manufacturer	General Electric
Series	Mark V
Product Type	Terminal Board
Input Channels	8 Analog Inputs
Input Type	Voltage (0-10V, ±10V)
Input Resolution	12-bit / 16-bit
Output Type	Voltage (0-10V, ±10V)
Output Resolution	12-bit / 16-bit
Communication Protocol	RS-485
Power Supply	24V DC ±10%, ＜5W
Isolation Voltage	1500V
Mounting Type	DIN Rail
Operating Temperature	-20°C to 70°C

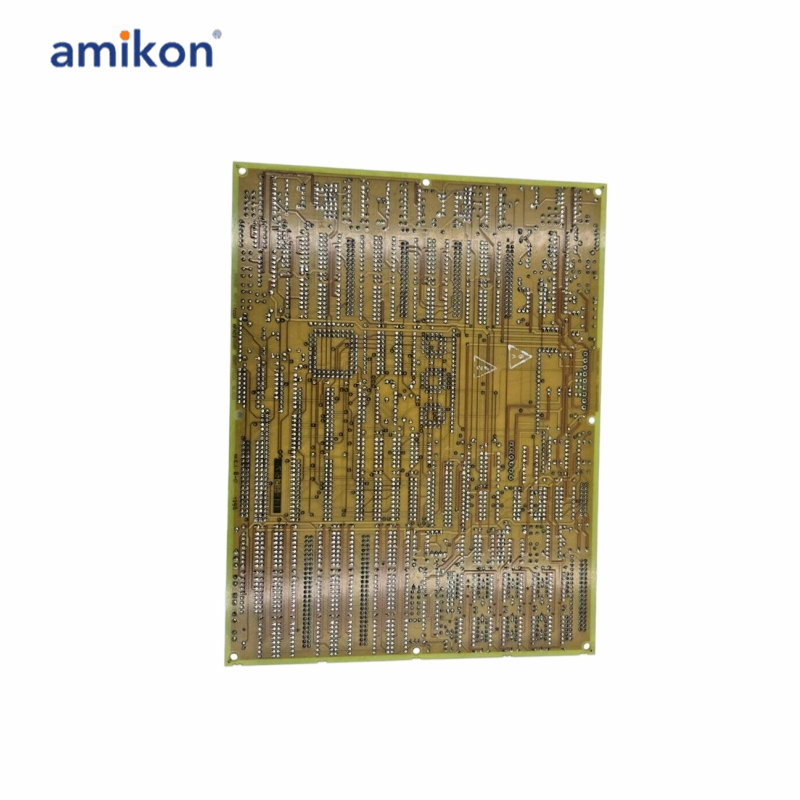

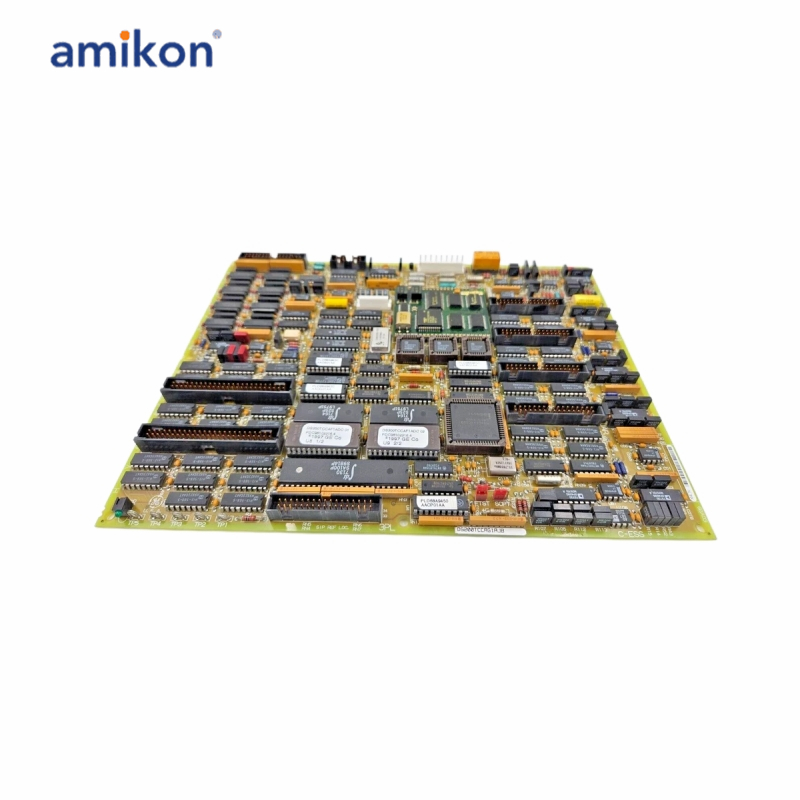

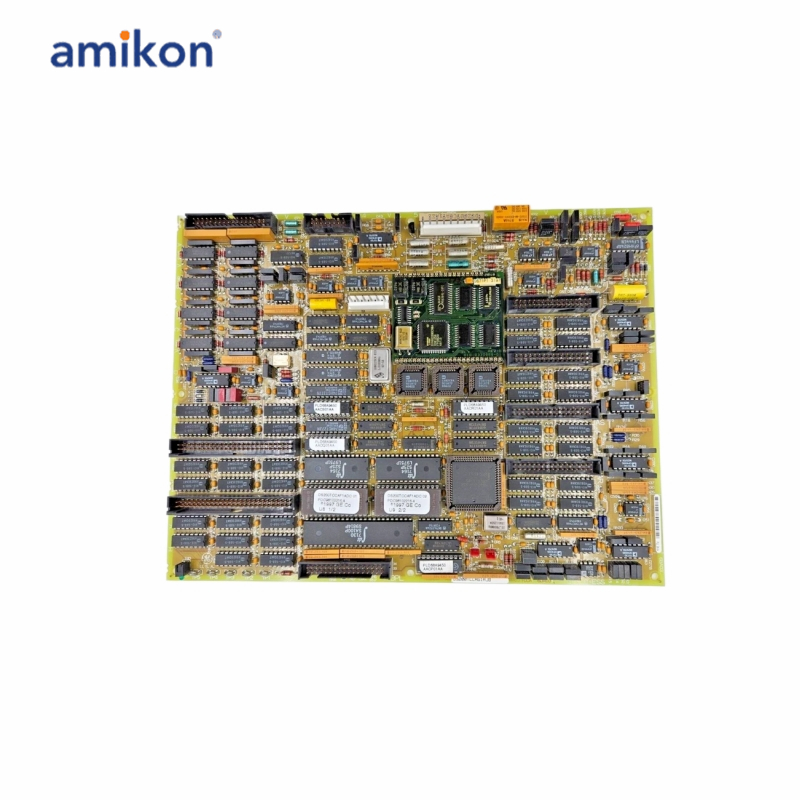

DS200TCCAG1AJB is a Common Analog I/O Board manufactured and designed by General Electric as part of the Mark V Series used in gas turbine contol systems. The Analog I/O Board is an integral component of the turtine conto ystem ocated within the core.Is primay function is to condition, scale and intertacearious analog signals that originate from the terminal boards namely, the CTBA, TBQA, and TBCAall of which are also mounted inside the core Ey performingessential signal conditioning tasks, the TCCA ensures that the incoming data is accurate, stable, and ready for further digital processing.The ypes of signals handed by the TCCA board incud 4 20 mA analog inputs and outputs which are widely used in industrial control systems for transmiting processariables over long distances with high noise immunity, Additionly, the board supports RTD (Resistance Temperature Detectod nputs enabing precise and relabletemperature monitoring critical for turbine operation and safety.

Frequently asked questions：

Q1: What is the GE DS200TCCAG1AJB Common Analog I/O Board used for?
A1: It is used for analog signal acquisition and control in GE industrial and drive systems.

Q2: How many analog input channels does the DS200TCCAG1AJB board provide?
A2: The DS200TCCAG1AJB board provides 8 analog input channels.

Q3: What input resolutions are supported by the DS200TCCAG1AJB board?
A3: The DS200TCCAG1AJB input resolution options are 12-bit and 16-bit.

Q4: What DS200TCCAG1AJB output types are supported?
A4: The DS200TCCAG1AJB board supports voltage outputs of 0–10 V and ±10 V.

Q5: What DS200TCCAG1AJB output resolutions are available?
A5: The DS200TCCAG1AJB output resolution options are 12-bit and 16-bit.
