Product Specifications

Part Number	DS215TCCAG1BZZ01A DS200TCCAG1BAA
Manufacturer	General Electric
Operating Voltage	+5 Vdc ±5%
Power Consumption	Approx. 12 W
Temperature Range	-20°C to +70°C (-4°F to +158°F)
Dimensions	6.5 in × 4.5 in × 1 in
Weight	1.2 lbs (0.54 kg)
Input Signal Range	0 to 10
Output Signal Range	4 to 20 mA
Signal Resolution	12 bits
Input Impedance	＞1 MΩ

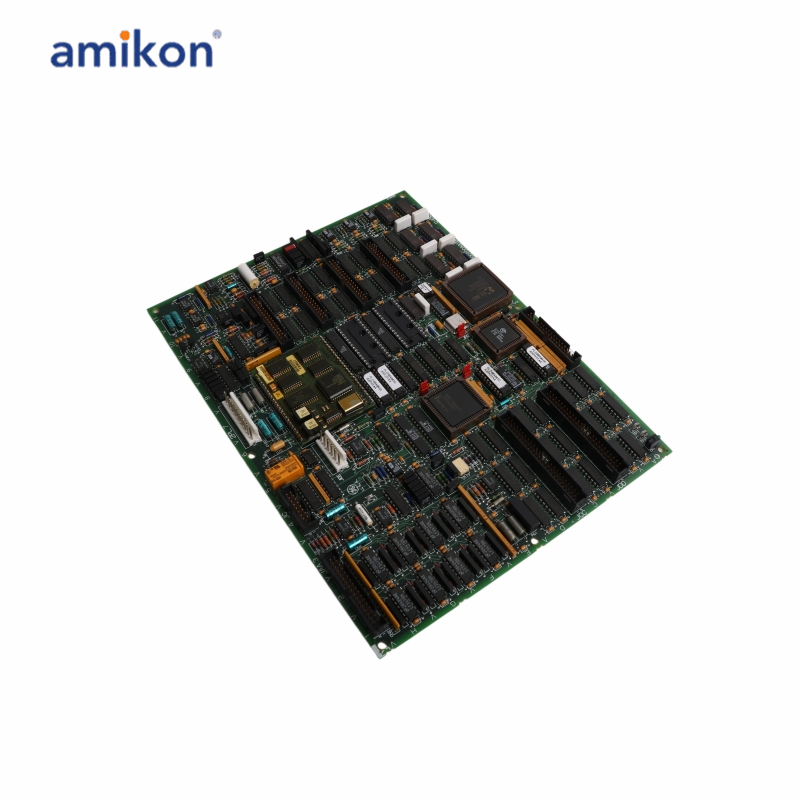

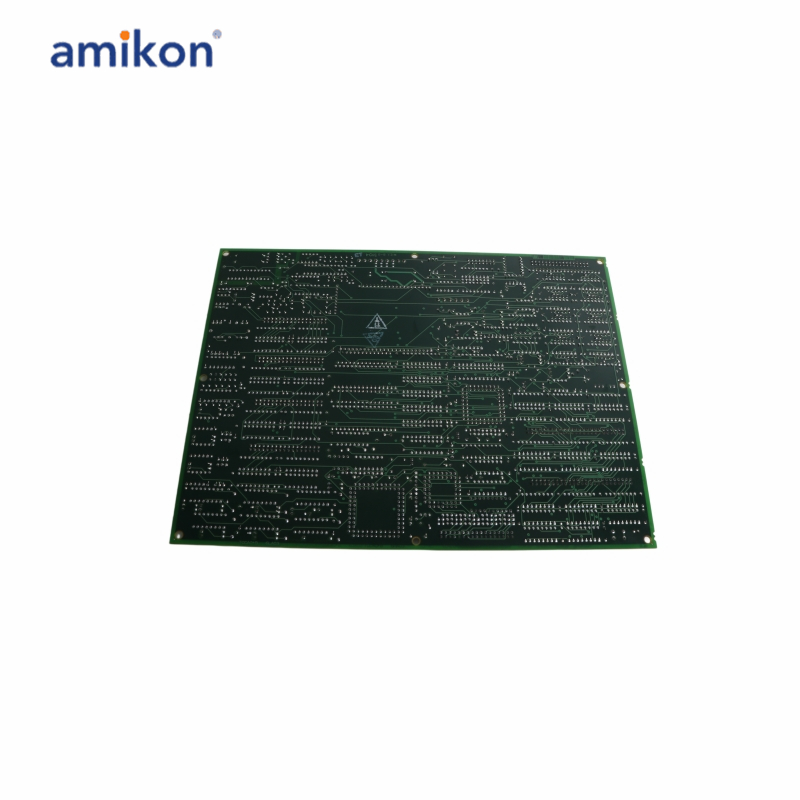

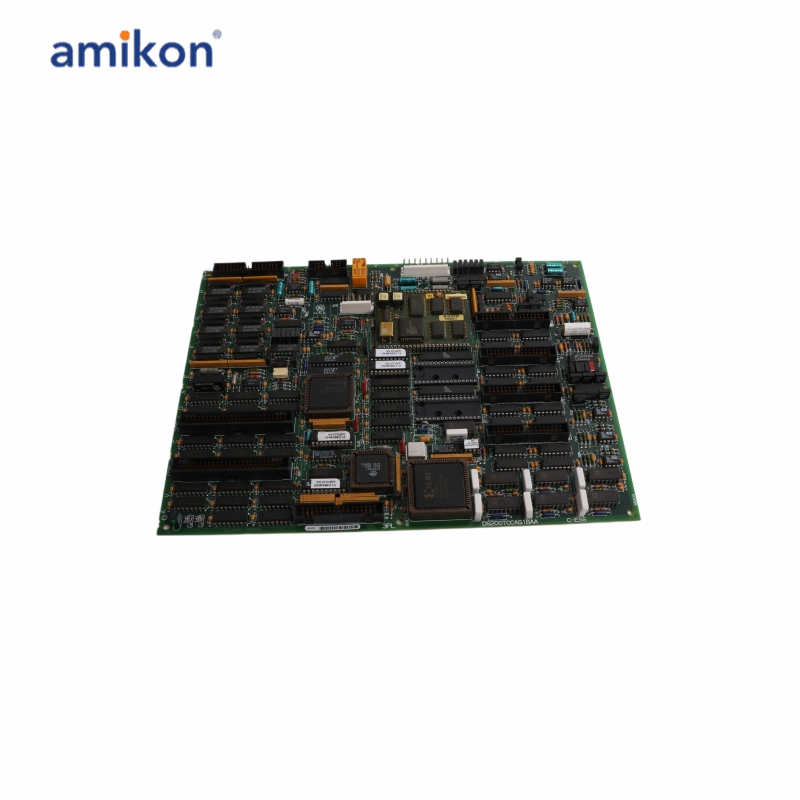

DS215TCCAG1BZZ01A DS200TCCAG1BAA is a TC2000 Common Analog O Board manufactured and designed by General Eectric as part of the Mark V Series used in GE Spedtronic GasTurbine Control Systems. The Common Analog I/O Board (ICCA) located in the core, scales and condifions analog signals from the CTBA, TBQA, and TBCA terminalboards mounted in the core These signals incude 4-20 mA inputs and outputs,RTD inputs, thermocouple inputs, shaft voltage inputs, and shat curent inputs. Thesignals are written to the STCA board via the 3PL connector.

Frequently asked questions：

Q1: What is the GE DS215TCCAG1BZZ01A DS200TCCAG1BAA used for?
A1: It is used for analog signal acquisition and output control in GE industrial and drive systems.

Q2: What is the DS215TCCAG1BZZ01A DS200TCCAG1BAA input signal range of the board?
A2: The DS215TCCAG1BZZ01A DS200TCCAG1BAA input signal range is 0 to 10 V.

Q3: What is the DS215TCCAG1BZZ01A DS200TCCAG1BAA output signal range?
A3: The DS215TCCAG1BZZ01A DS200TCCAG1BAA output signal range is 4 to 20 mA.

Q4: What is the signal resolution of the DS215TCCAG1BZZ01A DS200TCCAG1BAA board?
A4: The DS215TCCAG1BZZ01A DS200TCCAG1BAA signal resolution is 12 bits.

Q5: What is the input impedance of the DS215TCCAG1BZZ01A DS200TCCAG1BAA board?
A5: The DS215TCCAG1BZZ01A DS200TCCAG1BAA input impedance is greater than 1 MΩ.

Product Applications

Thermal power plants
Oil and gas industry
Combined heat and power (CHP) and combined cycle power plants
