Product Specifications

Manufacturer	GE General Electric
Part Number	DS200TCQAG1BFD、DS215TCQAG1BZZ01A
Rated Current	250A
Rated Voltage	600V
Input Voltage Range	0–10 VDC
Output Voltage Range	0–10 VDC
Resolution	12 bits
Number of Channels	8

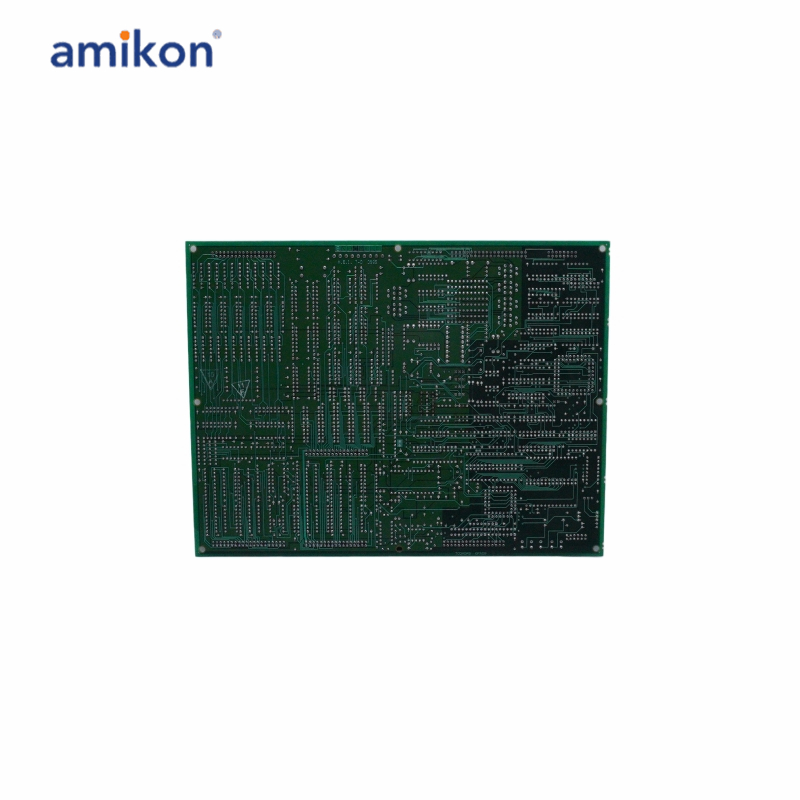

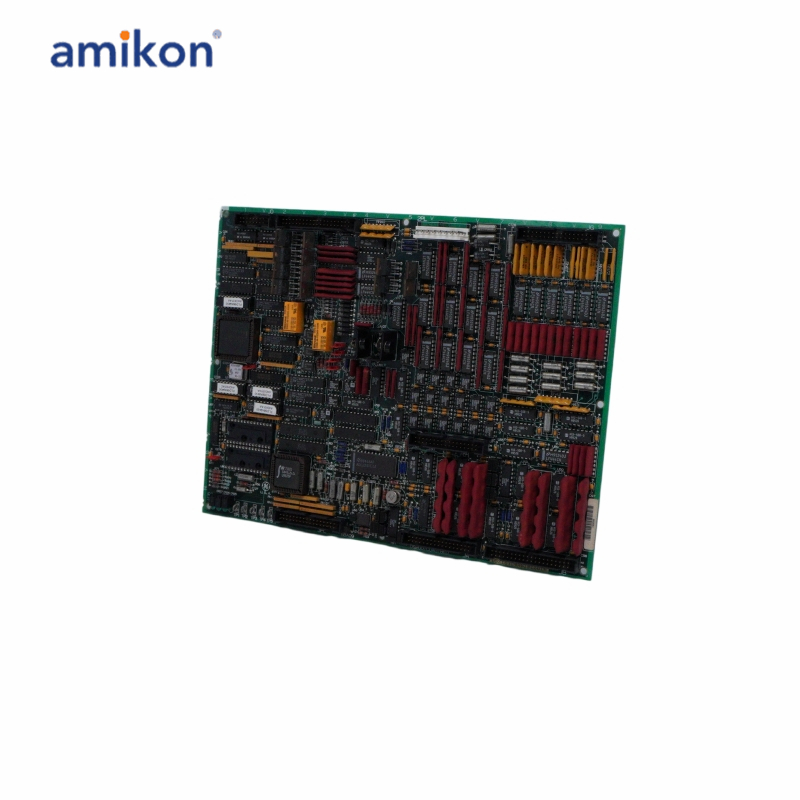

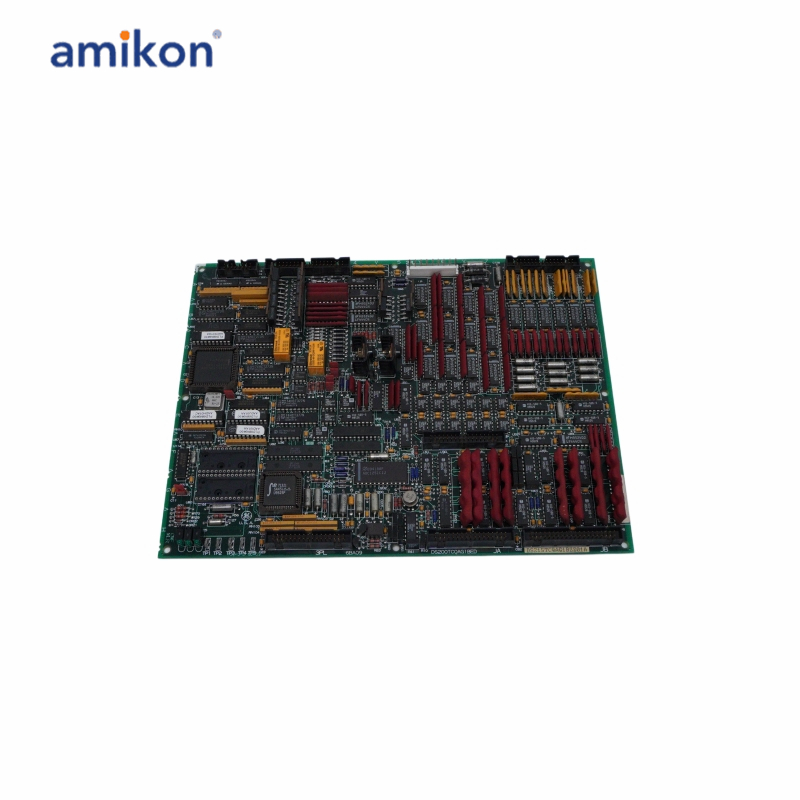

DS200TCQAG1BFD DS215TCQAG1BZZ01A is an Analog I/O Board manufactured and designed by General Electric as part of the Mark V LM Series used in turbine control systems. The Analog I/O Board (TcQA) scales and conditions a large number of the analog signals that terminal boards mounted on the I/O cores R1, R2, and R3 read in. Included in this group of signals are the LvDT inputs, servo valve outputs, thermocouple inputs, 4-20 mA inputs and outputs, vibration inputs, relay driver outputs, pulse inputs, voltage inputs, and generator and line signals. On the STCA board, some of the signals are written via the 3PL connector. Through the JE connector, the TCQc board receives and transmits generator and line signals. The TcQA board scales and conditions input signals that are 420 mA, including the fuel flow pressure and compressor stall-detect signals.

Frequently asked questions：

Q1: What is the GE DS200TCQAG1BFD DS215TCQAG1BZZ01A Analog I/O Board used for?
A1: The GE DS200TCQAG1BFD DS215TCQAG1BZZ01A Analog I/O Board is used in industrial control and systems to process analog input and output signals.

Q2: What is the rated current of the DS200TCQAG1BFD DS215TCQAG1BZZ01A board?
A2: The DS200TCQAG1BFD DS215TCQAG1BZZ01A board is designed with a rated current of 250 A, making it suitable for demanding industrial applications.

Q3: What is the DS200TCQAG1BFD DS215TCQAG1BZZ01A rated voltage specification?
A3: The DS200TCQAG1BFD DS215TCQAG1BZZ01A module supports a rated voltage of 600 V, providing reliable operation in industrial power and control environments.

Q4: What input voltage range does the DS200TCQAG1BFD DS215TCQAG1BZZ01A board support?
A4: The DS200TCQAG1BFD DS215TCQAG1BZZ01A analog input voltage range is 0 to 10 VDC, allowing the board to receive and process standard industrial analog signals.

Product Applications

Thermal and Gas-fired Power Plants
Upstream/Midstream Oil and Gas Industry
Large Petrochemical and Refinery Plant
Heavy Steel and Metallurgical Industry
