Model
|
DS215TCCAG1BZZ01
|
|
Input Voltage
|
5 V DC
|
|
Current Consumption
|
Max. 150 mA
|
|
Signal Type
|
Analog input and output (0-10V, 4-20 mA)
|
|
Analog Inputs
|
8 channels, differential
|
|
Analog Outputs
|
4 channels, single-ended
|
|
Resolution
|
16-bit
|
|
Sampling Rate
|
1 ms per channel
|
|
Protection
|
IP20
|
|
Operating Temperature Range
|
-20°C to +70°C
|
|
Storage Temperature Range
|
-40°C to +85°C
|
|
Humidity
|
5% to 95% non-condensing
|
|
Vibration Resistance
|
1g, 10-500 Hz
|

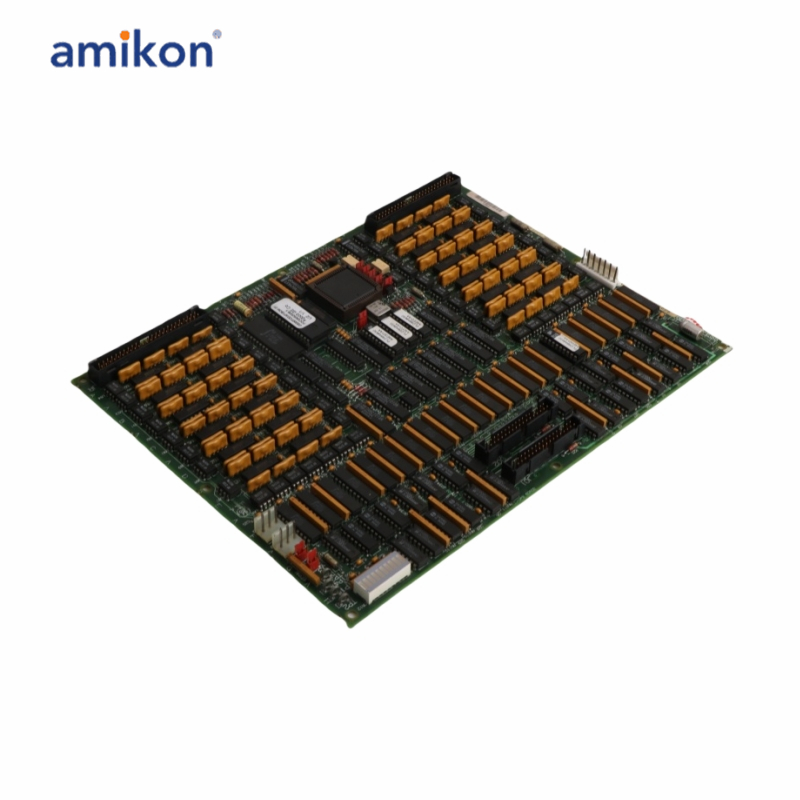

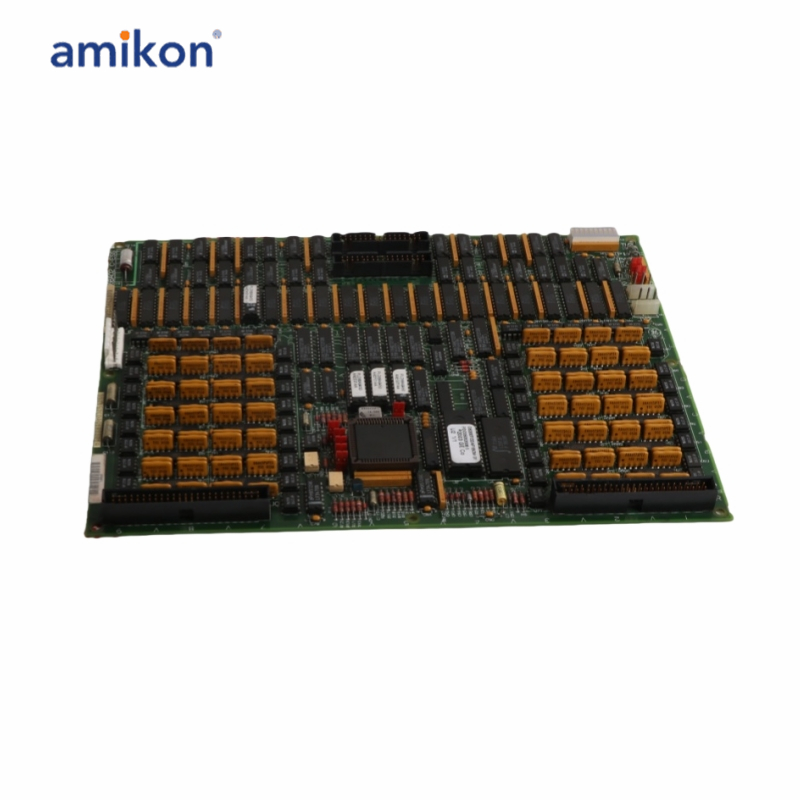

The GE DS215TCCAG1BZZ01 is a PC Processor Board designed by General Electric (GE) for use in Speedtronic Mark V turbine control systems. It functions as a critical processing and control module within the Mark V hardware architecture, hosting core control , communications interfaces, and system firmware that coordinate turbine control, monitoring, and I/O tasks. The DS215TCCAG1BZZ01 board’s robust industrial design and integration into the Mark V backplane make it suitable for continuous duty in power generation and heavy industrial environments.
Frequently asked questions：
Q1: What is the DS215TCCAG1BZZ01?
A1: The DS215TCCAG1BZZ01 is a PC processor board designed for industrial control systems, providing processing capabilities and analog signal interfacing for applications.
Q2: What is the input voltage and current requirement?
A2: The DS215TCCAG1BZZ01 board operates at 5 V DC and has a maximum current consumption of 150 mA.
Q3: How many analog input channels does it support?
A3: It supports 8 differential analog input channels, allowing precise measurement from various sensors.
Q4: How many analog output channels are available?
A4: The board provides 4 single-ended analog output channels for control or feedback signals.
Q5: What is the DS215TCCAG1BZZ01 resolution of the analog inputs/outputs?
A5: The DS215TCCAG1BZZ01 board features 16-bit resolution, ensuring high-precision signal processing.
Product Applications
Electric power industry (core application): Used for gas turbines and steam turbines in thermal power plants and combined cycle power plants.
Petroleum and natural gas: Applied to large turbine-driven compression units in offshore platforms, refineries, or oil/gas pipelines.
Heavy industry power systems: Used in steel mills, chemical plants, and other scenarios where large power sources are needed to drive production lines.
Module Function Features
Signal Processing: As an expansion of the analog I/O board, it is responsible for processing signals from on-site sensors, such as RTD (thermoresistor) temperature signals and milliampere (mA) current inputs, and performing filtering.
Safety Protection: It has built-in diagnostic functions and can participate in critical overspeed protection (Overspeeding Functions) and online maintenance tasks.
Communication Integration: Data is transmitted between different control boards (such as STCA, TCCA, etc.) through data buses (such as 3PL connectors).
