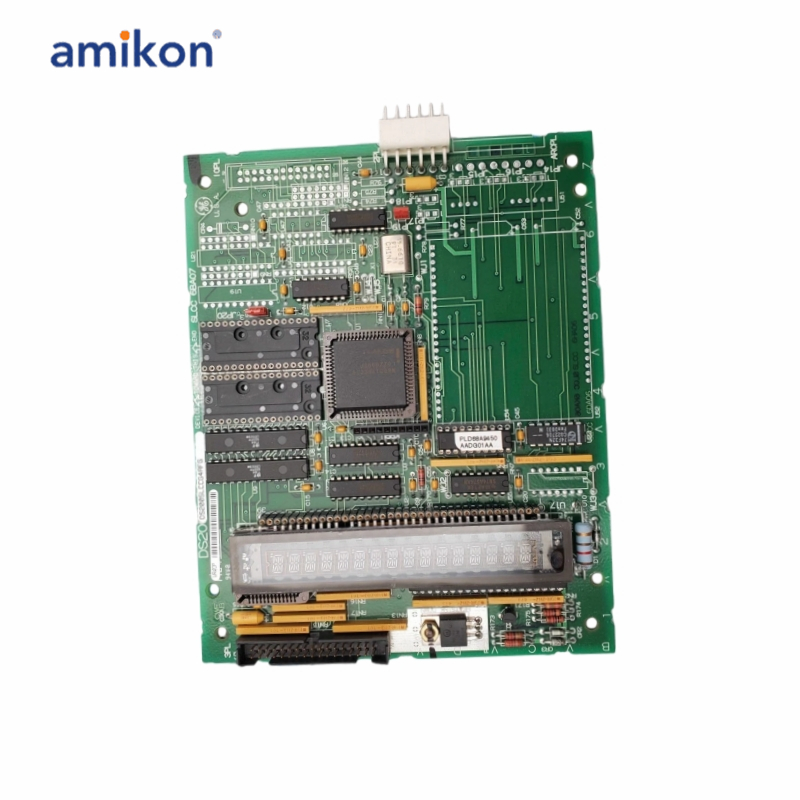

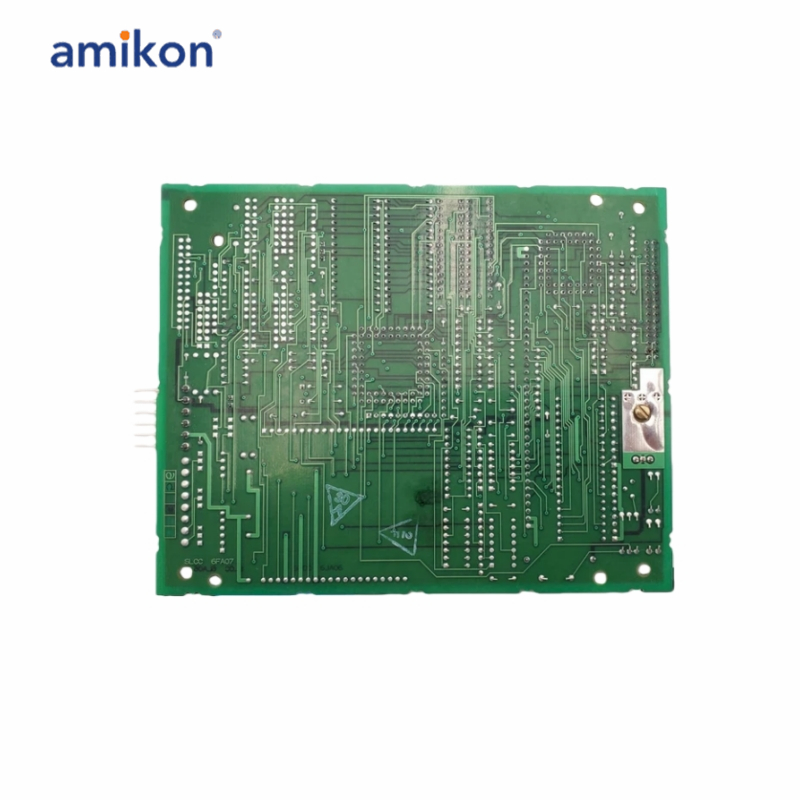

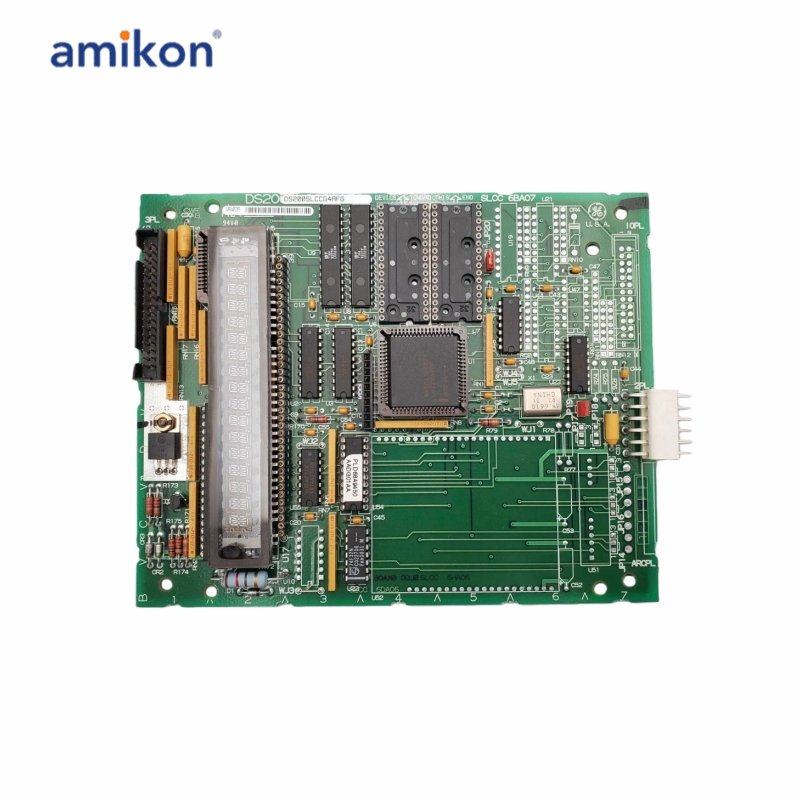

GE DS200SLCCG4AF Communication board

The GE DS200SLCCG4AFG is a communication interface module designed for use in General Electric Mark V and Mark VI turbine control systems and related industrial control platforms. It functions as an SLCC (System Local Control & Communication) board that provides high‑speed communication between the control system and external devices or networks, enabling reliable data exchange within turbine control racks and with peripheral I/O devices or supervisory systems. The robust design, compact form factor, and support for standard industrial communication protocols make this board suitable for mission‑critical applications in power generation and heavy industrial environments.

Frequently asked questions：

Q1: What is the DS200SLCCG4AF?
A1: The DS200SLCCG4AF is a communication board used in the Mark VI control system series to enable data exchange between system components and external devices.
Q2: What operating voltage does the board require?
A2: The DS200SLCCG4AF operates with a 24 V DC power supply, which is standard in many industrial systems.
Q3: Which communication protocols are supported?
A3: The board supports RS-232 and RS-485 communication protocols, allowing flexible integration with various industrial devices and controllers.
Q4: What is the maximum data transmission rate?
A4: The maximum data rate is up to 115.2 kbps, ensuring reliable serial communication.
Q5: What is the operating temperature range?
A5: The DS200SLCCG4AF can operate within a temperature range of −40 °C to +85 °C, making it suitable for harsh industrial environments.

Product Applications

Power energy industry:
Gas turbine control: It is the core communication interface of the GE Mark V control system and is widely used in the monitoring of gas turbine units in power plants.
Generator excitation system: It is used to connect and control the excitation equipment of the generator units.
Heavy industry manufacturing:
Large industrial drives: In large drive systems that require complex network control, it is responsible for data exchange between various components and the central control network.
Steel and paper mills: Used in these industries for old but stable heavy automated production lines.
Oil and chemical industry:
In the power unit control systems of refineries and chemical plants, it ensures the reliability of real-time data transmission.

Main technical functions
Communication interface: As the main communication interface between the control processor and other system components, it supports high-speed data transmission.
Signal processing: The onboard local area network control processor (LCP) is responsible for filtering and processing the signals entering and leaving the drive.
System diagnosis: Supports an external alphanumeric keyboard, allowing operators to directly access system settings and perform fault diagnosis.
