Manufacturer: GE Fanuc
Part Number: IC697ALG320J
Product Description: Analog Output Module
Number of Outputs: 4 Outputs
Analog Output Signal: 0-20 mA / 4-20 mA; -10 VDC / +10 VDC
Voltage Output Range: -10 to +10 Volts
Current Output Range: 0 to 22.2 milliamps
Conversion Rate: 2.0 ms
Maximum Number of Output Channels: 252 channels
Power Requirement: 1.66 Amps (8.3 watts) at +5 Volts
External Supply Voltage Range: 10 to 30 VDC (24 VDC typical)

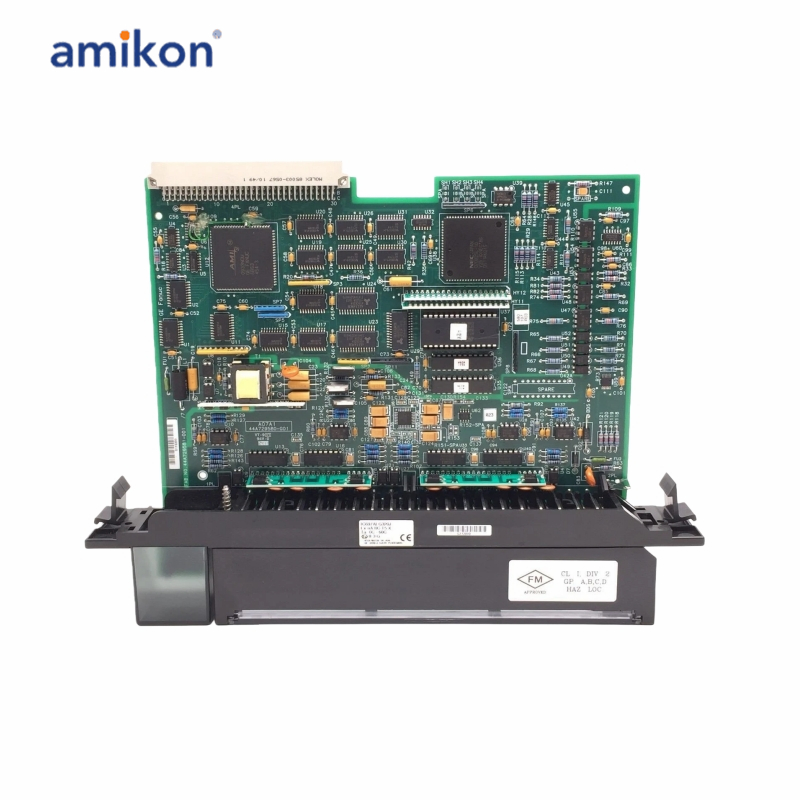

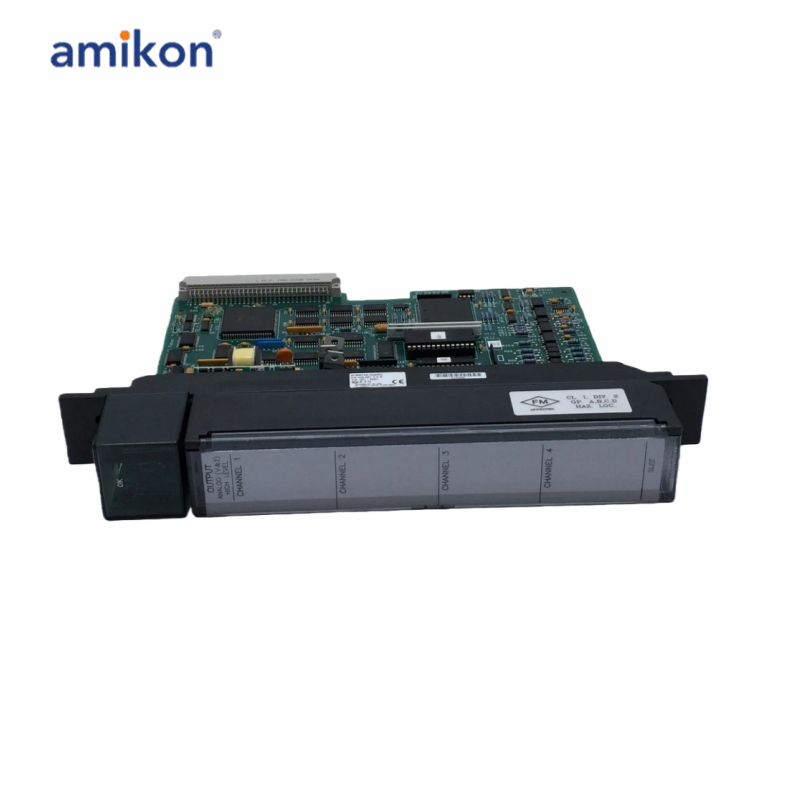

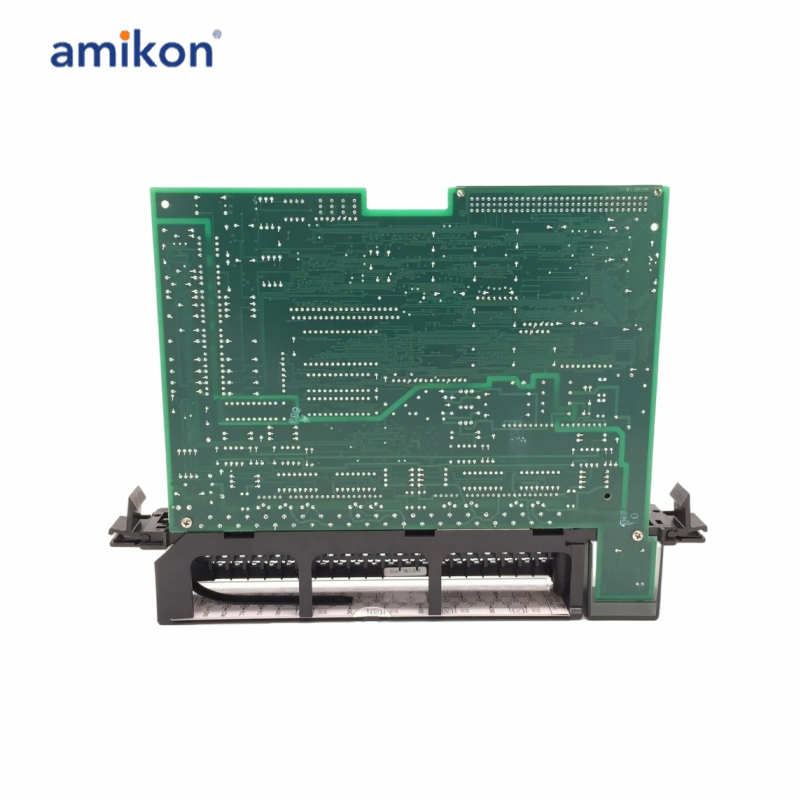

The IC697ALG320J is a high-level analog output module from the series 90-70 Programmable Logic Controller (PLC) that is formerly manufactured by GE Fanuc . This module is designed to occupy a single slot of a 5-slot or 10-slot baseplate and draws current from the backplane amounting to a maximum of 1.66A (8.3 Watts) at 5VDC and 150 mA from the user power supply to enable current output. The IC697ALG320 comes with Four (4) individually configured output channels that generated voltage and current outputs specifically, 0-20 mA / 4-20 mA current output signal and -10VDC / +10 VDC voltage output signals. It has built-in digital to analog converter (DAC) circuit with a resolution of 16-bits with monotonicity specifically, 312.5 microvolts per LSB step on voltage and 0.5 microamps per LSB step on 4 to 20 mA. It has a maximum sequential conversion rate of the conversion rate of 2.0 ms for all analog output channels.

Frequently asked questions：

1.What are the output signals of the IC697ALG320J?
The IC697ALG320J delivers 0-22.5 mA and +/- 10VDC.
2.What is the output module resolution of the IC697ALG320J ?
The IC697ALG320J has 16-bit resolution.
3.How many output channels does the IC697ALG320J have?
The IC697ALG320J has Four (4) analog output resolutions.
4.What are the supported signals of the IC697ALG320J ?
The IC697ALG320J configurable signals are 0-20 mA / 4-20 mA current output signal and -10VDC / +10 VDC voltage output signals.

Key Features
Software Configuration: The module requires no hardware jumpers or DIP switches; configuration is handled entirely through MS-DOS or Windows-based programming software.
Fast Update Rate: All four channels are updated sequentially every 2.0 milliseconds (maximum).
Factory Calibration: Calibration data is factory-set and stored in non-volatile EEPROM memory.
Physical Connectivity: Features a removable 40-terminal connector block mounted on the front for easier wiring.
