Manufacturer: GE Fanuc
Product Line: Series 90-70
Part Number: IC697MDL653H
Weight: 1.69 lbs (0.77 kg)
Product Description: Discrete Input Module
Rated Voltage: 24 Volts DC
Required Current: 0.3 Amps
Current Draw: 300 mA
Number of Inputs per Module: 32
Nominal Input Voltage: 24 VDC
Nominal Output Voltage: 24 VDC
Isolation Voltage: 1500 Volts
On-state Voltage: 13.5 – 30 VDC
Off-state Voltage: 0 – 5 VDC
On-state Current: 6 mA to 15 mA VDC
Off-state Current: 0 – 2 mA

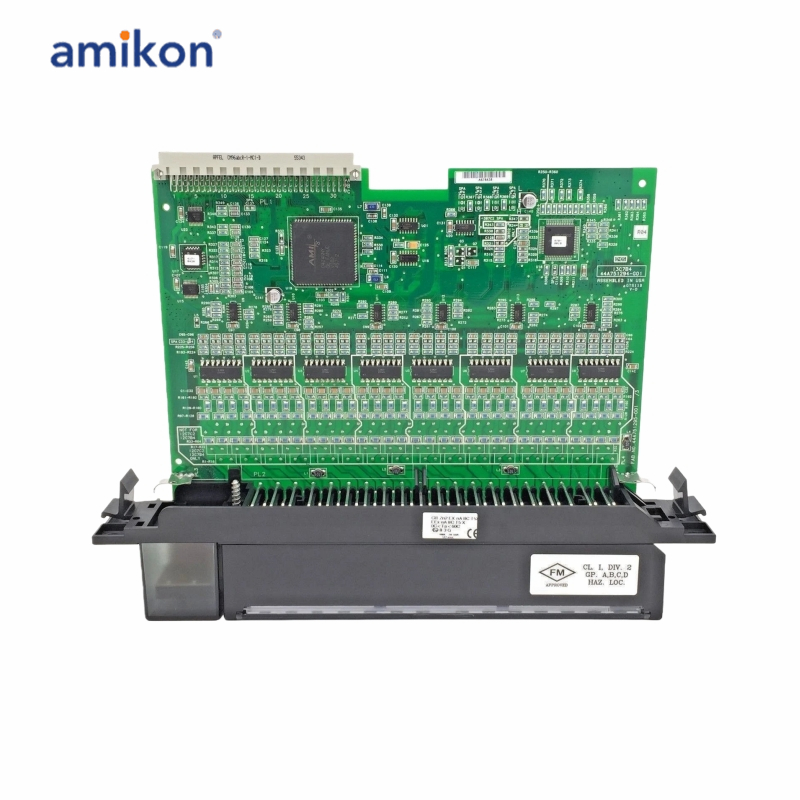

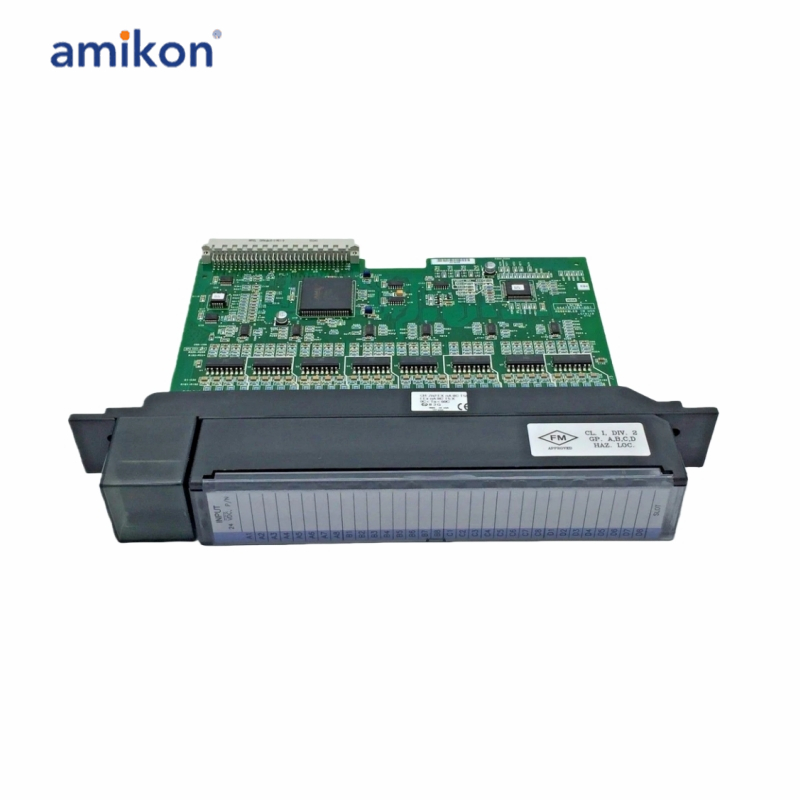

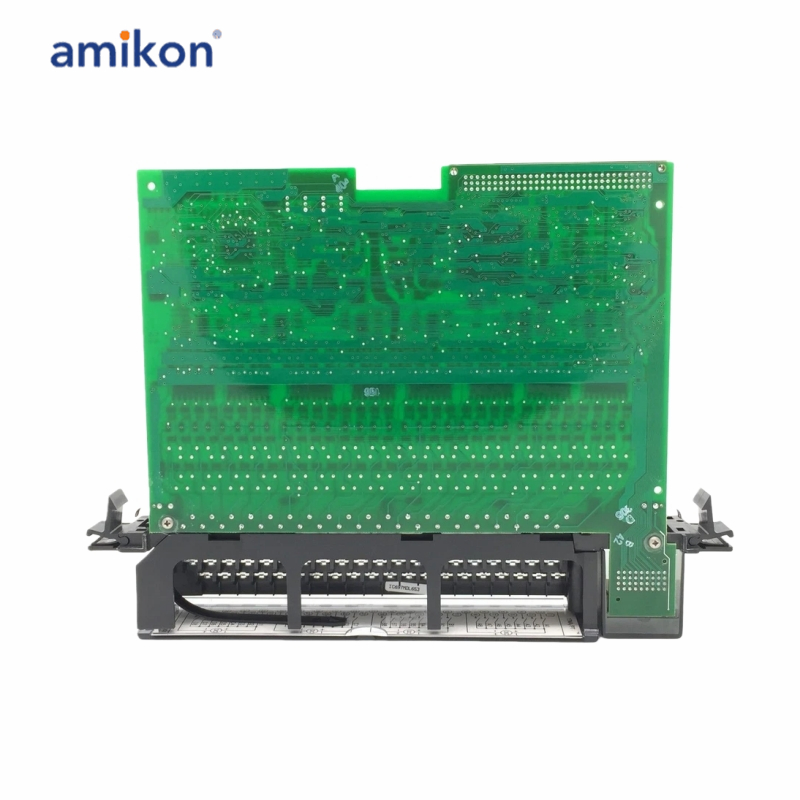

The IC697MDL653H is a digital input module that is part of the Serie 90-70 PLC series. This module is formerly manufactured by GE Fanuc however, recently acquired . It features high-density input channels, specifically Thirty-Two (32) discrete input channels in Four (4) groups of Eight (8) channels each, providing group isolation. This module is designed to operate at an input voltage range of -3 to +3 VDC with a rated voltage of 24 VDV along with an input current of 10 mA at 24 VDC and a typical input impedance of 2.6 KOhm. The IC697MDL653H has an on-state voltage and on-state current of 13.5 volts to 30 volts and 6mA to 15mA. Conversely, the Off-state voltage and Off-state currents are 0 volts to 5 volts and 0 to 2mA (2mA minimum at 5V input), respectively. Every input channel of this module exhibits an input delay time of 1 ms or 10 ms, software configurable. This module draws current from the 5VDC bus amounting to 300 mA and is also designed compatibly with VME standard C.1.

Frequently asked questions：

1.How many input groups does the IC697MDL653H have?
The IC697MDL653H has Four (4) groups of Eight (8) inputs each.
2.Does the IC697MDL653H supports interfacing with proximity switch?
The IC697MDL653H supports proximity switch as input device.
3.What are the configurable filters available to the channels of the IC697MDL653H?
Supported filters are 1 ms - 10 ms.
4.What is the accepted input voltage range of the IC697MDL653H?
Accepted input voltage range is -3 to +30 VDC.

Features and Compatibility
Interrupt Capability: The first input point can be configured as an interrupt to the PLC CPU for time-critical applications.
Proximity Switch Support: The module is compatible with 2-wire and 3-wire proximity switches.
Configuration: Requires no jumpers or DIP switches; all I/O references and filter settings are configured via software.
