Part Number
|
IS200TBAIH1C
|
|
Manufacturer
|
General Electric
|
|
Series
|
Mark VI Speedtronic
|
|
Function
|
Analog Input Terminal Board
|
|
Analog Inputs
|
Supports 10 analog input channels
|
|
Configurable Outputs
|
2 analog outputs
|
|

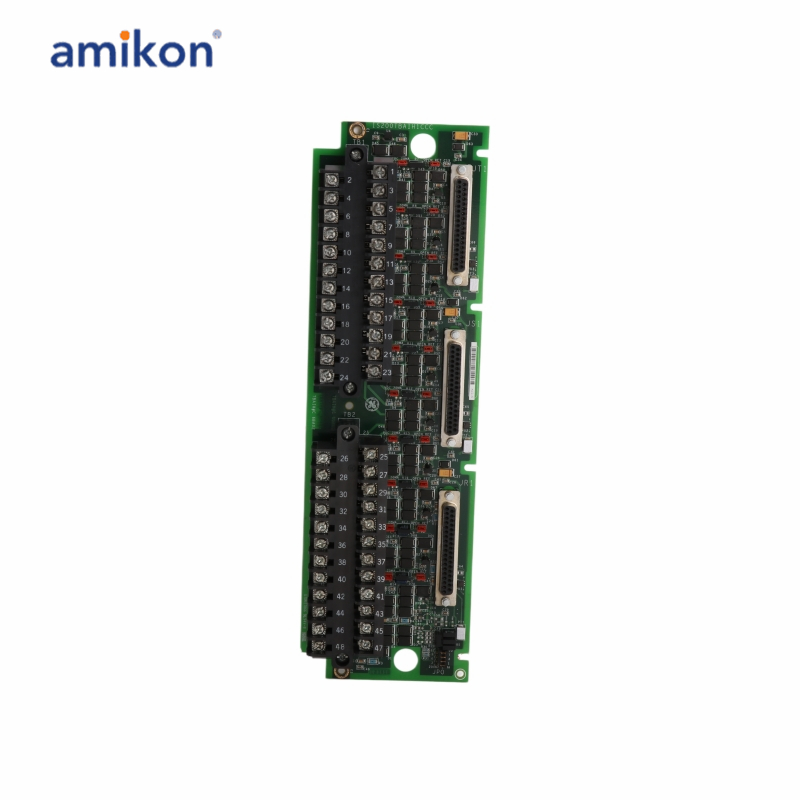

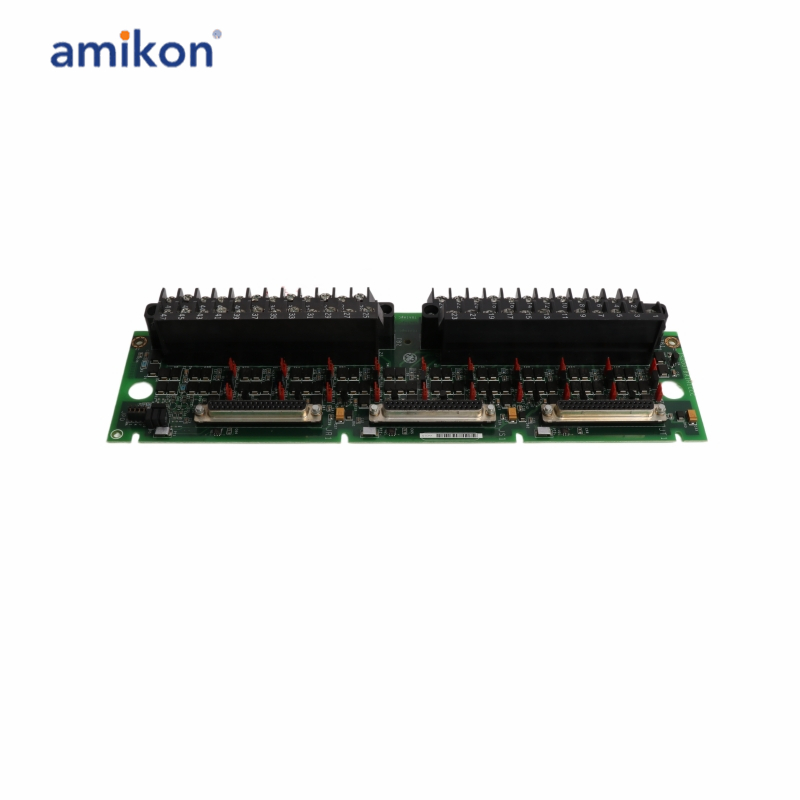

Terminal Blocks
|
2 black terminal blocks, 24 terminals each (total: 48 terminals)
|
|
Connector Ports
|
3 long connectors (JT1, JS1, JR1)
|
|
Jumpers
|
2 rows of red jumpers with metal pins
|
|
Potentiometers
|
10 in center + 4 on the lower right
|
|
Transistors
|
9 small black transistors
|

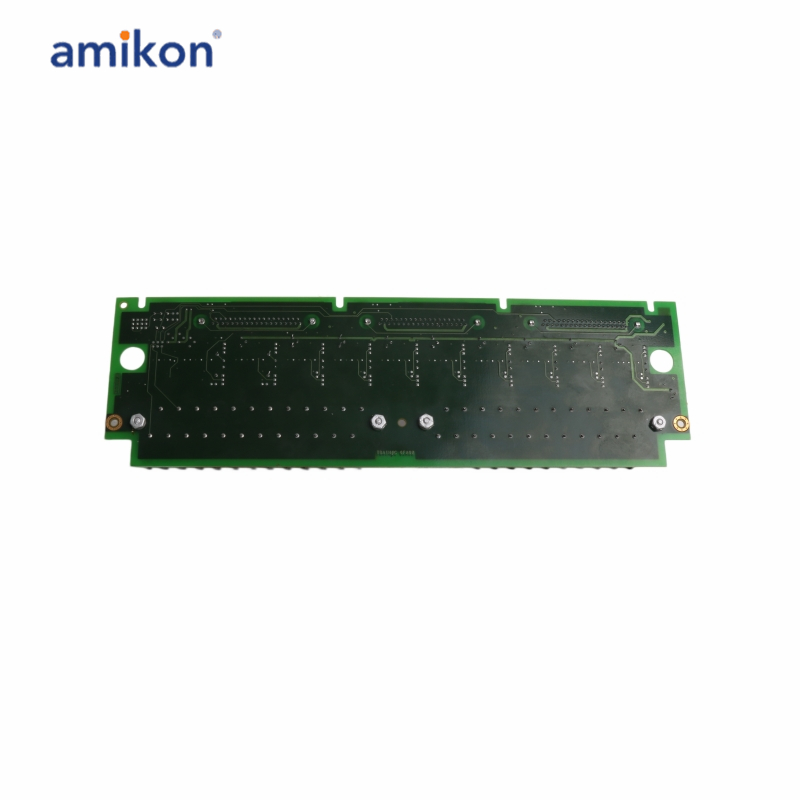

IS200TBAIH1C is an Analog nput Terminal Board manufactured and designed by General Electric as part ot the Mank v senies used in gas turbine control systemsTwo outputs and 10 analog inputs are supported by the Analog input terminal board. wo-wire, three wire, fourwire, or transmiters that are powered extemmaly can allbe plugged into one of the ten amalog inputs, A curent of 0-20 mA or 0-200 mA can be confiqured forthe analog output, surge and hioh frequency noise are protectedfrom by noise suppression circuitry in the inputs and outputs.
Frequently asked questions：
Q1: What is the IS200TBAIH1C?
A1: The IS200TBAIH1C is an analog input terminal board used in industrial control systems to interface field analog signals with the main control modules.
Q2: How many analog input channels does it support?
A2: The IS200TBAIH1C supports 10 analog input channels, allowing multiple sensor signals to be connected and monitored.
Q3: Does the IS200TBAIH1C board provide analog outputs?
A3: Yes, the board includes 2 configurable analog outputs for transmitting processed signals to external devices or control systems.
Q4: What type of terminal blocks are included?
A4: The board features 2 black terminal blocks, each with 24 terminals, providing a total of 48 terminals for field wiring.
Q5: What connector ports are available on the IS200TBAIH1C board?
A5: The IS200TBAIH1C includes three long connectors identified as JT1, JS1, and JR1, which are used for internal system connections.
Product Applications
Power Generation: This is its most important application field, widely used in the automatic control systems of gas turbines and steam turbines.
Oil & Gas: Applied in oil extraction, refineries, and long-distance pipelines for the control of turbine-driven compressors.
Heavy Manufacturing: Includes large cement plants, steel mills, and mining facilities, used for monitoring complex production processes.
Marine: Used in the power propulsion systems and energy management control of large ships.
Typical application scenarios in factories
Turbine Control: Real-time monitoring of critical analog signals such as pressure, temperature, and rotational speed.
Signal Conditioning and Protection: Provides interfaces for 2-wire, 3-wire or 4-wire transmitters, and features anti-noise interference and surge protection capabilities to ensure signal integrity in harsh industrial environments with high temperatures and high vibrations.
Redundant System (TMR): Supports triple modular redundancy (TMR) configuration, suitable for factories with extremely high safety requirements, to prevent production downtime caused by single-point failures.
