Part Number	IS200EGEDMH1AFG
Operating Voltage	24V DC
Input Voltage	24V DC
Current Consumption	150mA max
Operating Temperature	-40°C to 70°C
Storage Temperature	-40°C to +85°C
Humidity Range (Operation)	5% to 95%, non-condensing
Signal Type	Digital and Analog Inputs/Outputs
LED Indicators	Power and Status LEDs
Power Consumption	3.5W max

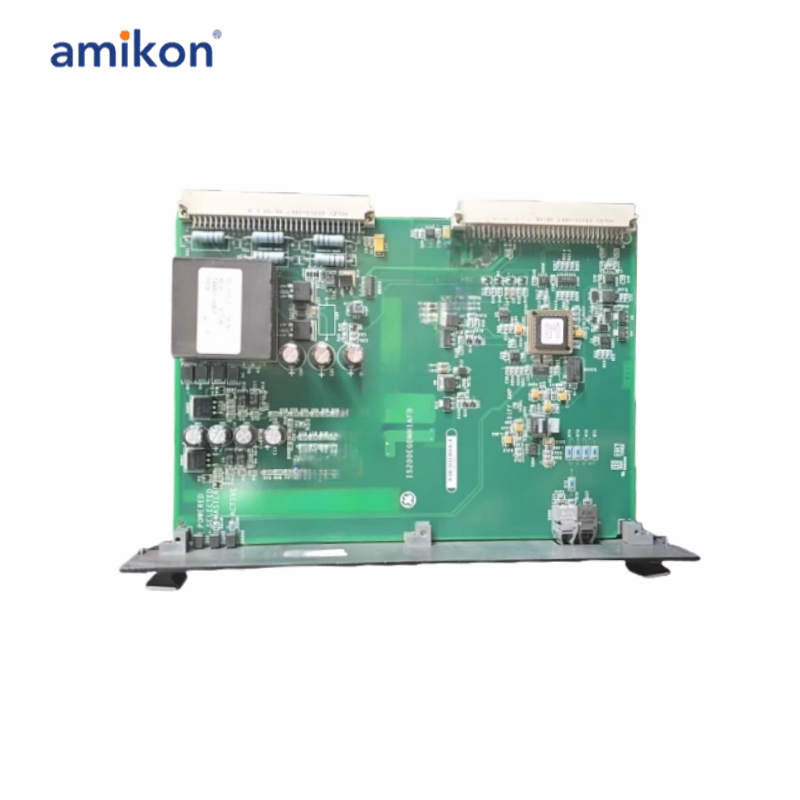

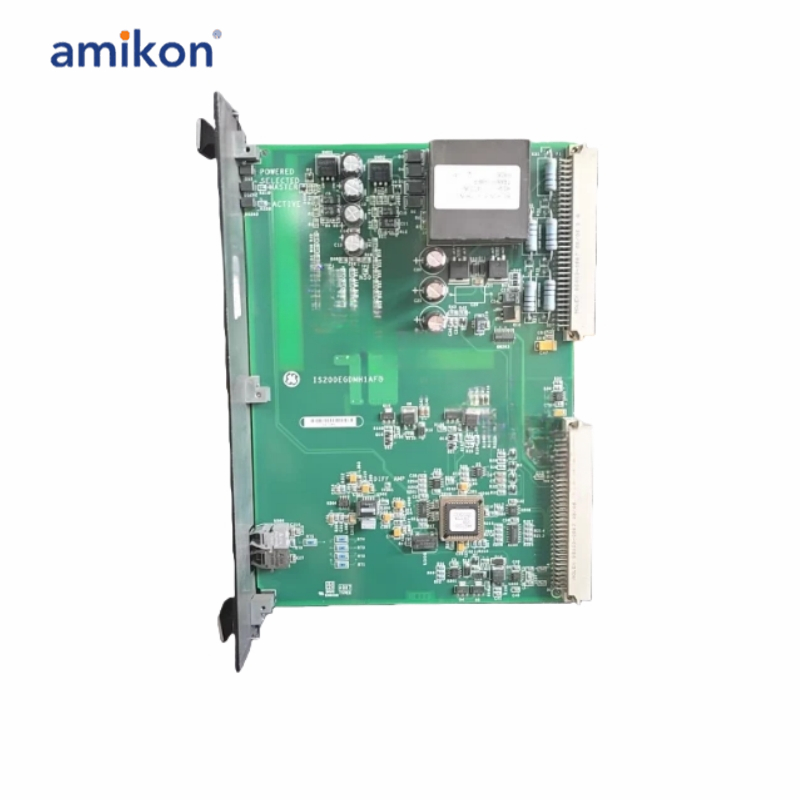

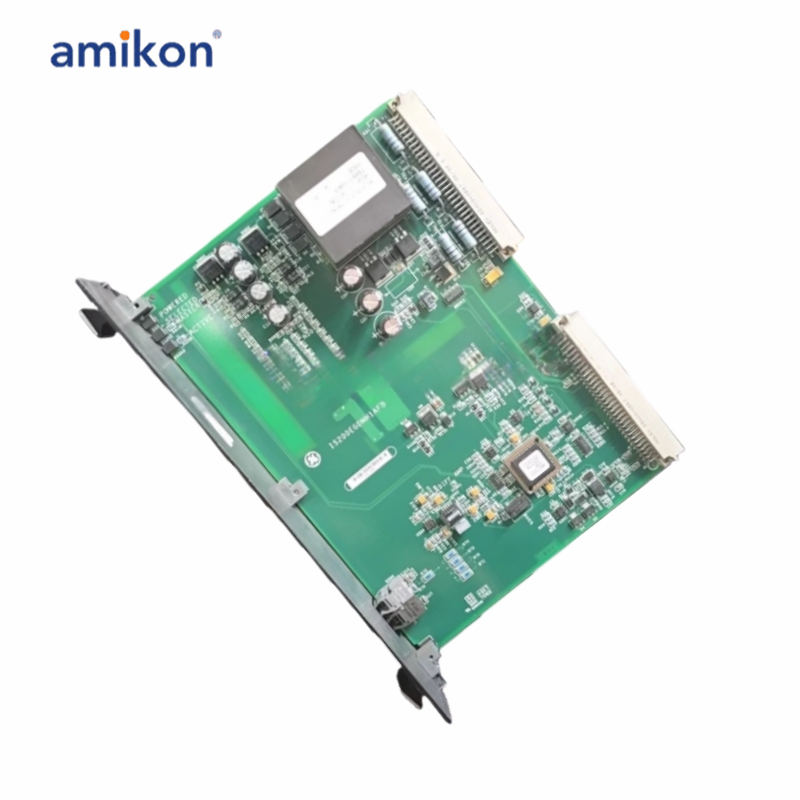

The GE IS200EGEDMH1AFG is an Exciter Ground Detector Module manufactured by General Electric (GE) for use in the EX2100 excitation control system, which is part of the broader GE Mark VI/EX2100 turbine control and exciter platform. This IS200EGEDMH1AFG module continuously monitors ground leakage resistance in the generator field circuit by injecting a controlled test signal and measuring resulting leakage currents. It plays a critical protection and diagnostic role in power generation systems, helping detect insulation faults early to avoid damage, unscheduled shutdowns, or safety hazards.

Frequently asked questions：

Q1: What is the IS200EGEDMH1AFG?
A1: The IS200EGEDMH1AFG is a control board used in industrial and control systems to manage signal processing, system coordination, and communication between modules.
Q2: What is the operating voltage of the control board?
A2: The IS200EGEDMH1AFG operates with a 24 V DC supply voltage, which is standard in many industrial control environments.
Q3: What is the IS200EGEDMH1AFG input voltage requirement?
A3: The IS200EGEDMH1AFG board also uses an input voltage of 24 V DC for stable operation within the system.
Q4: What is the IS200EGEDMH1AFG maximum current consumption?
A4: The IS200EGEDMH1AFG maximum current consumption is 150 mA, ensuring efficient power usage in control cabinets.
Q5: What is the IS200EGEDMH1AFG maximum power consumption?
A5: The IS200EGEDMH1AFG has a maximum power consumption of approximately 3.5 W.

Product Applications

Power Generation Plants: Used within GE Excitation Control Systems to monitor generator fields in gas and steam turbine systems.
Metal Processing: Applied in aluminum smelters and both hot and cold rolling mills for iron and steelmaking.
Industrial Manufacturing: Used in packaging machinery control and material handling equipment.
Energy & Resource Facilities: Integrated into systems for oil and gas compression, desalination, and gasification plants.

Technical Context within Mark VIe
Redundancy Support: In typical Mark VIe applications, these boards can be configured in triple redundant sets (Controller, Master 1, and Master 2) to ensure high system availability.
Interface: It communicates via fiber-optic links (typically through a DSPX or EISB board) to send information regarding drive signals and relay statuses.
Measurement Method: It typically uses a high-impedance voltage source to apply a test voltage and measure the resulting current to determine resistance.
