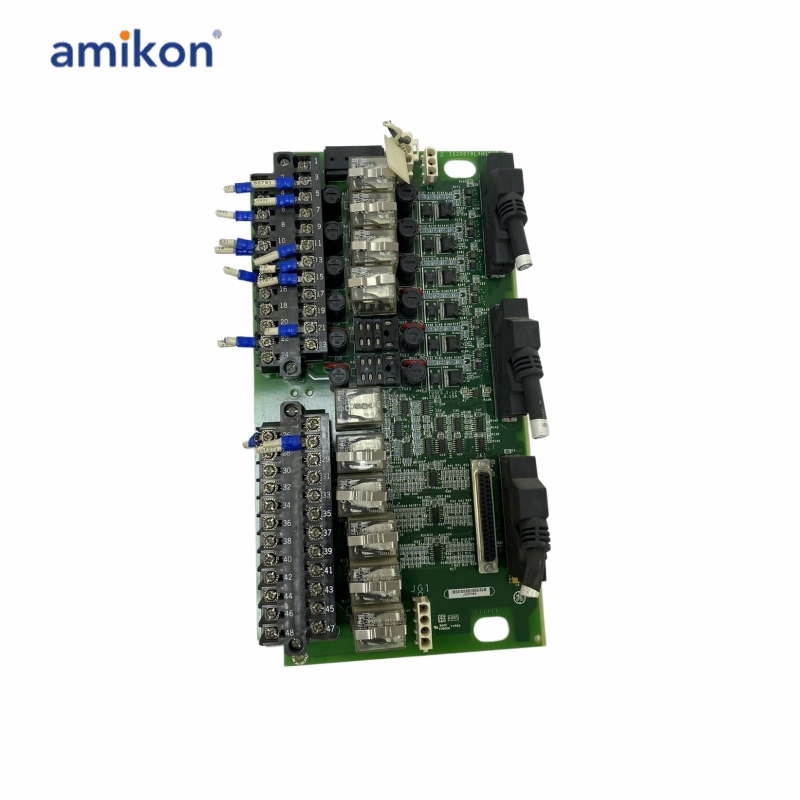

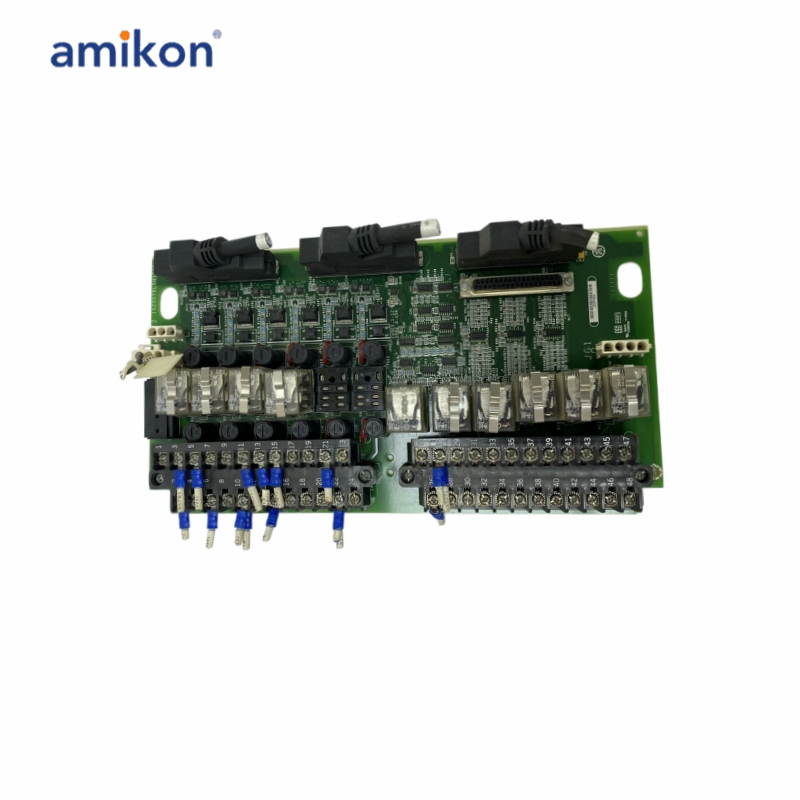

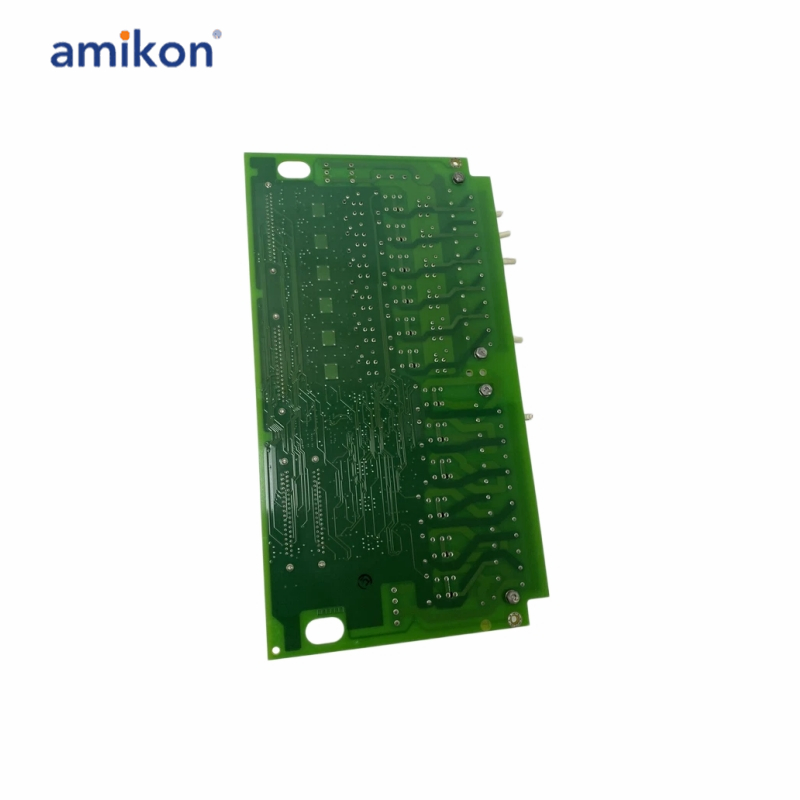

Part No.:IS200TRLYH1BGF
Manufacturer: General Electric
Temperature rating: 0 to 60 °C
Size: 17.8 cm wide x 33.02 cm high
Temperature:-30 to + 65°C
Product Type: Relay Output Board
Availability: In Stock
Series: Mark VI

IS200TRLYH1BGF is a relay output board developed by GE. It is a part of Mark V conto system In Mark V systems, TRLY s under the control of ether the VCC.VCRC or VGEN board. catering to both simplex and TMR configurations. Cables featuring molded plugs estabish the conection between the terminal board and theVME rack, where the Vo boards reside. For simplex setups, Connector JA1 is utlized, while TMR systems employ connectors JR1, S1, and JT1.

Frequently asked questions：

1.What is IS200TRLYH1BGF?
It is a relay output board developed by GE under the Mark VI series.
2.What is the IS200TRLYH1BGF typical operation time for the relays?
The typical time to operate the relays is 10 ms.
3.What are the specifications of the relays used on the TRLYH1B board?
The relays are driven at the frame rate and have a 30 A rating. They have a rated contactto contact voltage of 500 VAC for one minute and a rated coil to contact voltage of 1,500 V AC for one minute.

Key Features and Functionality
The IS200TRLYH1BGF is engineered for high reliability in critical control applications.
Configurable Outputs: The first six relay circuits (1–6) can be configured via jumpers to drive external solenoids or act as dry, Form-C contact outputs.
Isolated Contacts: Relays 7–11 are unpowered isolated Form-C contacts, while relay 12 is dedicated to specialized high-demand uses like ignition transformers.
System Redundancy: Fully compatible with both Simplex and Triple Modular Redundant (TMR) applications. It uses connector JA1 for simplex and JR1, JS1, and JT1 for TMR systems.
Protection & Diagnostics: Includes MOV (metal oxide varistor) suppression to protect against voltage spikes and individual jumper-selectable fuses for enhanced safety.
