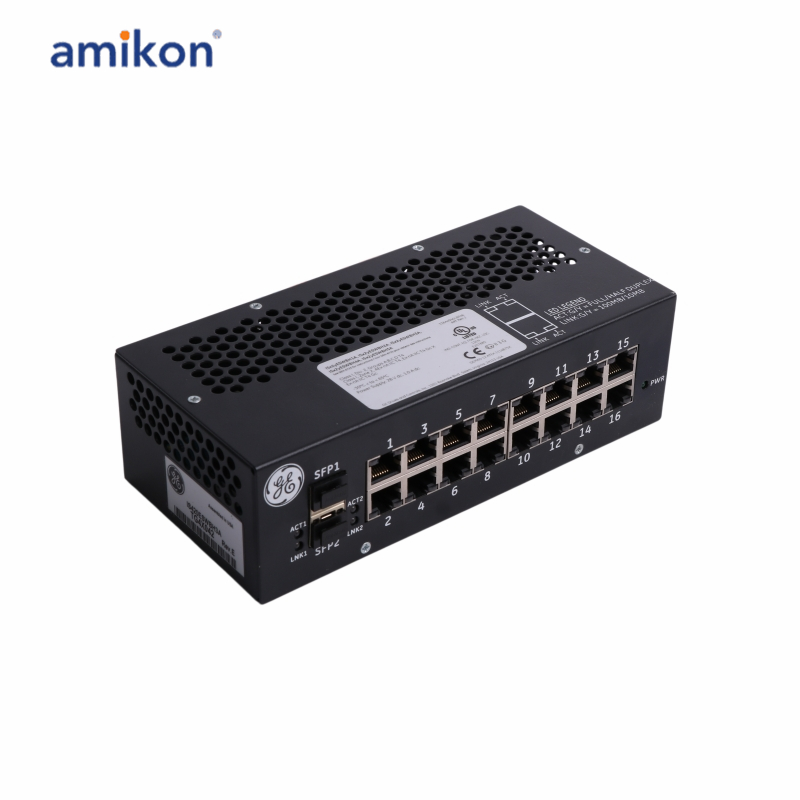

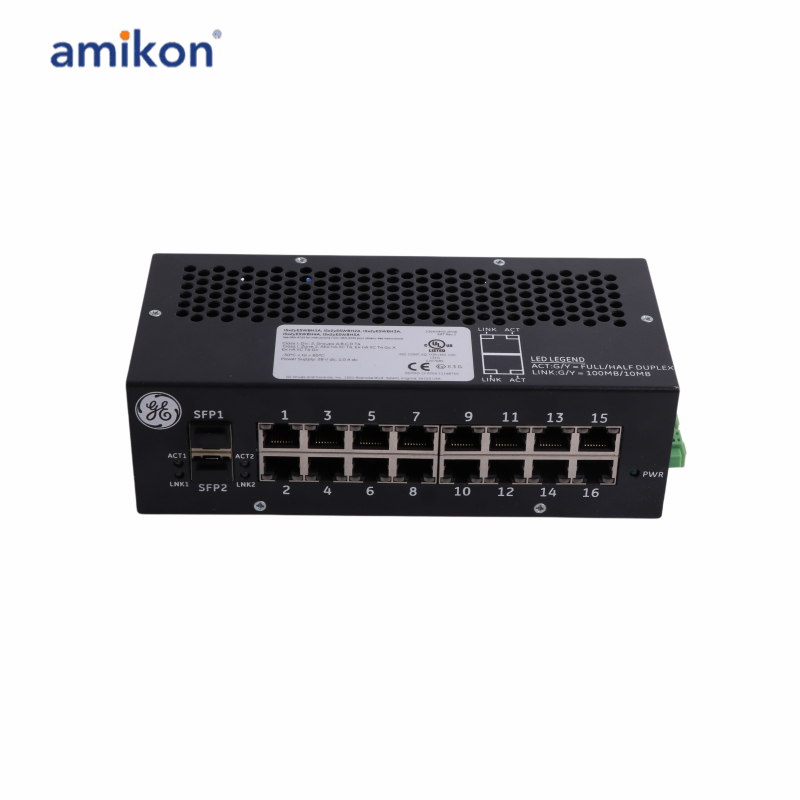

GE IS420ESWBH2A Industrial ESWB Ethernet Switch

Part Number:IS420ESWBH2A
Manufacturer: General Electric
Number of Ports: 16 ports,10/100Base-TX copper, RJ-45
Power Requirements: 24 /28 V dc，1 A max
Power Supply Connector: Phoenix contact (Mc 1.5/S-STF-3.81)
Dimensions (H x W x D): 18.8 x 8.6 x 5.6 cm(
Temperature: -40 to 70°C(-40 to 158°F)
Storage Temperature -40 to 85C(-40 to 185°F)

The standard operation of the IS420ESWBH2A switch will operate centered on the ability to buffer streams of multicast and broadcast packets. There are multiple streams that will come into the switch and has enough space to buffer one packet per port, please note that multiple streams typically only allow buffering for one incoming stream and has to save the remaining streams for later transmission.
Since high reliability is needed when using the IS420ESWBH2A switch there are several performance criteria that should be considered during operation, switch architecture, inrush current, and switch latency. The inrush current of the switch will provide a soft start that will help to limit the inrush current to less than two hundred percent of the normal operating current.

Frequently asked questions：

1.What is GE Mark Vle IS420ESWBH2A?
It is an industrial Ethernet IONet Switch used for Safety control systems.
2.What styles of fiber ports does this IS420ESWBH2A Industrial Ethernet Switch device offer?
This IS420EswBH2A Industrial Ethernet Switch device utlizes two 100Base FX multi mode LC-type connection fiber ports in its modularassembly
3.Can I contact you on Email?
Yes, absolutely. You can contact me online, or email me directly at sales7@amikon.cn for any inquiries.

Industrial Features
Environment: Designed for harsh conditions with an operating temperature range of -40 to 70°C (-40 to 158°F).
Durability: RJ-45 connectors are rated for up to 200 insertion/removal cycles.
Redundancy: Features diode-OR’d power supply inputs to ensure continuous operation if one power source fails.
Diagnostic LEDs: Includes per-port LEDs for Link Presence, Activity, Duplex, and Speed, plus a dedicated power LED.
