Product Specifications

Part Number	CC-PSV201 51454123-175
Output Channels	2
Dither	0–10% of FS, 25–60 Hz
Output Temperature Drift	300 ppm / °C；0.005% of full scale/°C
Output Current Linearity	0.325%；±0.05% of full scale nominal
Resolution	16-bit DAC；±0.05% of full scale
Maximum Open Circuit Voltage	±14 V
A/D Converter Resolution	16-bits
I/O Range (Channel 1)	8V RMS max., 2.5–3.2 kHz
Voltage Input Impedance	＞25 kΩ (2.5 kHz～3.2 kHz)
Input Scan Rate	2.5 ms
Hardware Accuracy (@ CMV=0 V)	＜1%
Output Ripple	＜100 mV (250 Ω load)
Output Readback Accuracy	±4% of full scale

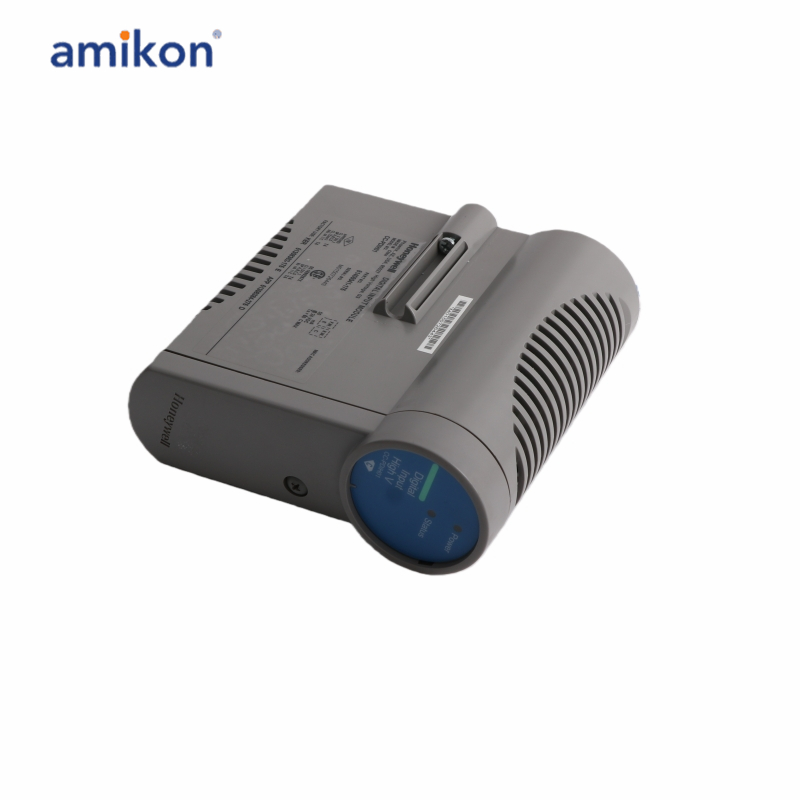

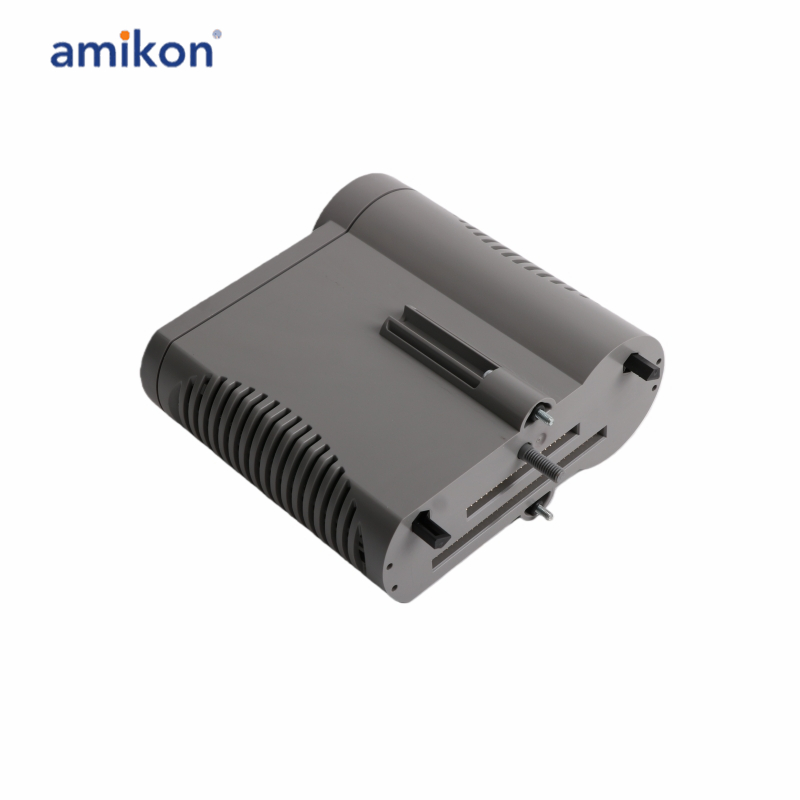

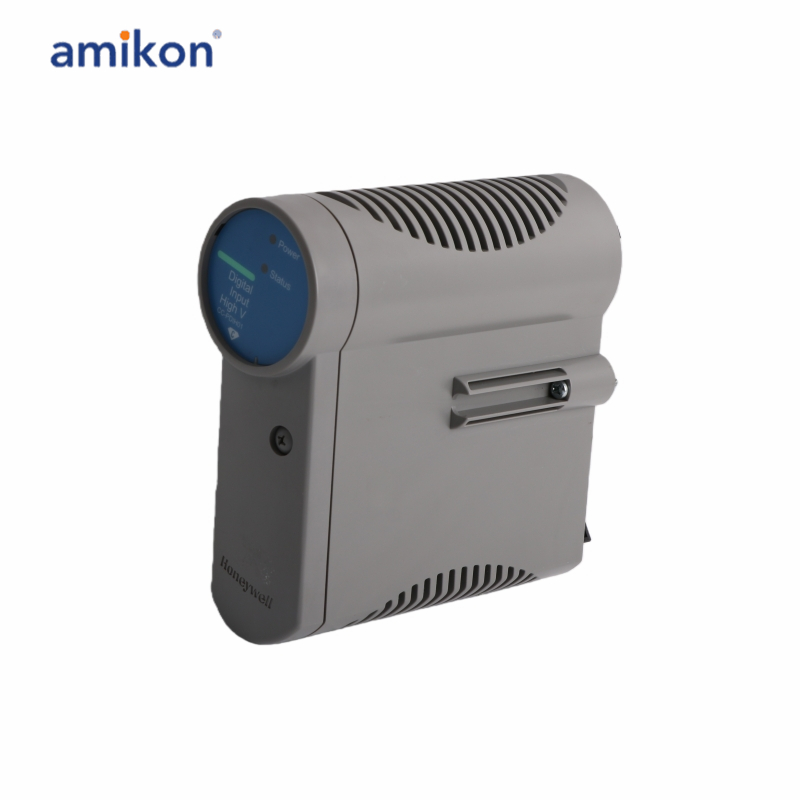

The Honeywell CC-PSV201 is a servo valve positioning module for the Experion Process KnowledgeSystem (PKS). It provides eight channels of analog output for driving servo valves. The module has a 16-bitdigital-to-analog converter (DAC) with a resolution of 0.0015%. It has a maximum output current of 10 mAand a maximum output voltage of 10 V. The CC-PSV201 has a response time of less than 1 millisecond. Itis designed for use in hazardous areas and is certified for Class I, Division 2, Groups A, B, C, and D. It is alsocertified for Class Il, Division 1, Groups E, F, and G. The module has a DIN rail mounting and can be installedin a standard 19-inch rack. It is powered by 24 VDC and consumes 60 watts. The CC-PSV201is a reliableand versatile servo valve positioning module that can be used in a wide variety of applications.

Frequently asked questions：

Q1: What is the Honeywell CC-PSV201 51454123-175?
A1: It is a servo valve positioner module designed to precisely control valve positioning in industrial process control systems.

Q2: How many output channels does it have?
A2: The CC-PSV201 51454123-175 module provides 2 output channels, allowing control of two independent servo valves.

Q3: What is the CC-PSV201 51454123-175 resolution of the output signal?
A3: It features a 16-bit DAC (Digital-to-Analog Converter), ensuring high precision in valve control.

Q4: What is the CC-PSV201 51454123-175 maximum open circuit voltage?
A4: The CC-PSV201 51454123-175 maximum open circuit voltage is ±14 V, supporting accurate actuator control signals.

Q5: What is the CC-PSV201 51454123-175 input scan rate?
A5: The CC-PSV201 51454123-175 module has a fast input scan rate of 2.5 milliseconds, enabling quick response to control signals.

Product Applications

Oil & Gas
Turbomachinery Control
Power Generation
Chemical Processing
Pharmaceuticals
