Product Specifications

Model Number	CSNK500M-600
Nominal Current (In)	500 A.t rms
Continuous Measuring Range	0 to ±1200 A.t
AC Peak Measuring Range	0 to ±1275 A.t
Turns Ratio	1 / 5000
Accuracy at +25°C	Max. ±0.5% of In
Supply Voltage	±15 to ±18 Vdc (±5%)
Galvanic Isolation	6 kV rms / 50 Hz / 1 min
Zero Offset Current at +25°C	Better than ±0.2 mA
Thermal Drift of Offset Current (0°C–70°C)	Better than ±0.3 mA
Linearity	Better than ±0.1%
Response Time	Better than 1 µs
Bandwidth	DC to 100 kHz
dI/dt	Better than 50 A/µs
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +90°C
Current Consumption	20 mA plus output current
Secondary Internal Resistance (@ +70°C)	50 Ω

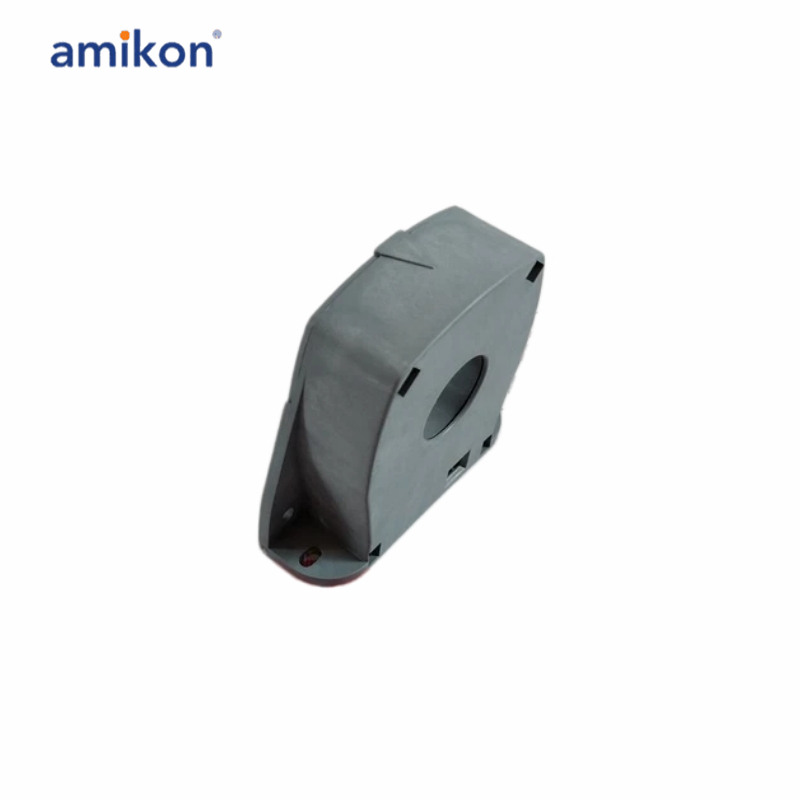

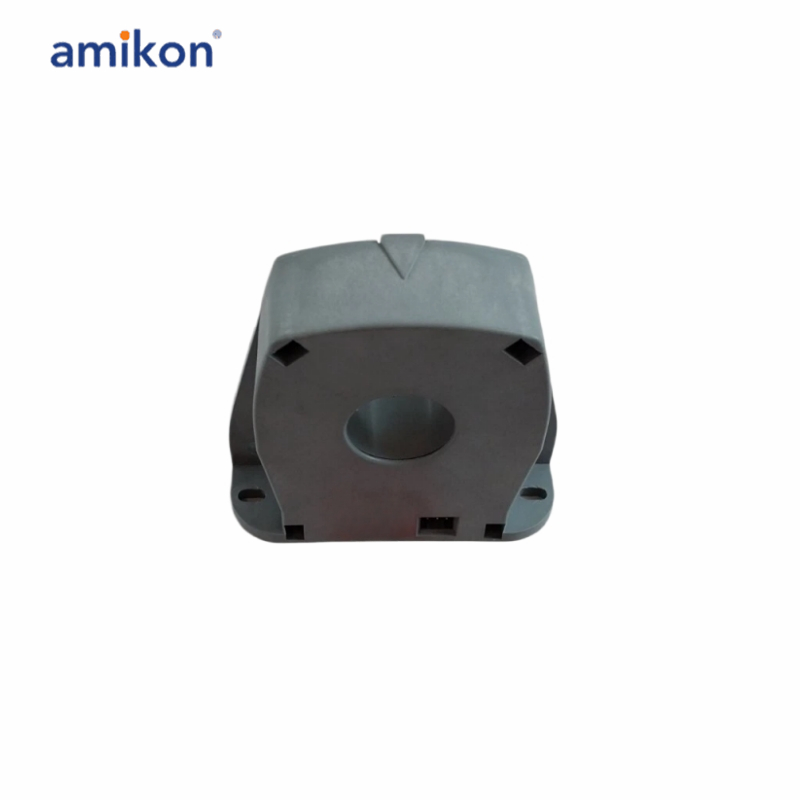

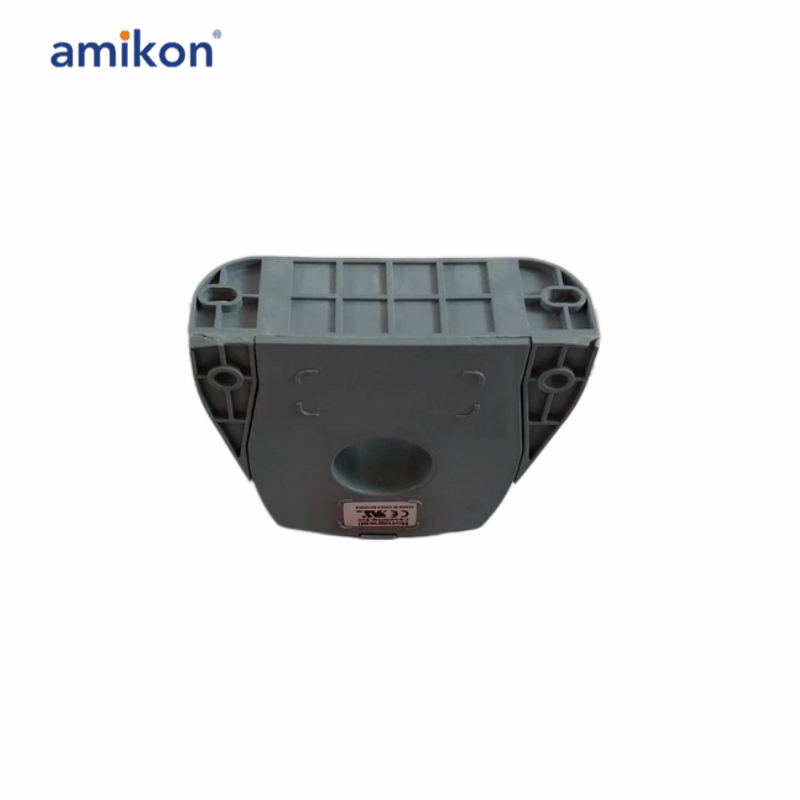

The CSNK500M is a current transducer based on the principle of magnetic compensation. It provides electronic measurement of DC, AC or pulsed currents, and their combinations, with galvanic isolation between the primary (high current) and secondary circuits.
The Honeywell CSNK500M-600 Current Transformer Sensor is a high-precision device designed for accurate current flow measurement in various electrical systems. Ideal for industrial and commercial applications, this sensor ensures reliable performance and long-term durability.
This cutting-edge sensor from Honeywell ensures accurate and reliable readings. The CSNK500M 600 is essential for electrical systems requiring precise current monitoring. Its lightweight design and durable construction make it easy to install and depend on for consistent performance.

Frequently asked questions：

Q1: What is the Honeywell CSNK500M-600?
A1: It is a closed-loop current transducer designed for accurate current measurement and electrical isolation in industrial power and control systems.

Q2: What is the CSNK500M-600 nominal current rating of this transducer?
A2: The CSNK500M-600 nominal current rating (In) is 500 A·t rms.

Q3: What is the CSNK500M-600 continuous measuring range?
A3: The CSNK500M-600 continuous measuring range is 0 to ±1200 A·t.

Q4: What is the CSNK500M-600 AC peak measuring range?
A4: The CSNK500M-600 AC peak measuring range is 0 to ±1275 A·t.

Q5: What is the CSNK500M-600 operating temperature range?
A5: The CSNK500M-600 transducer operates within a temperature range of −40°C to +85°C.

Product Applications

Variable Speed Drives
Power Supply Systems
Robotics and Servo Systems
Welding Equipment
Battery Management Systems - BMS
Frequency Converters & Renewables
Overcurrent Protection
