Product Specifications

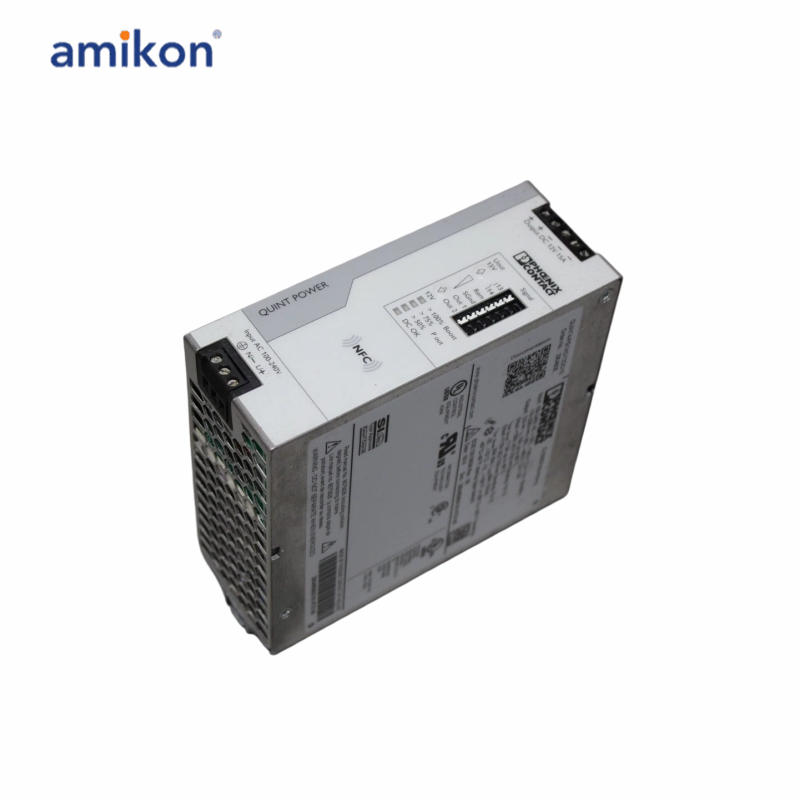

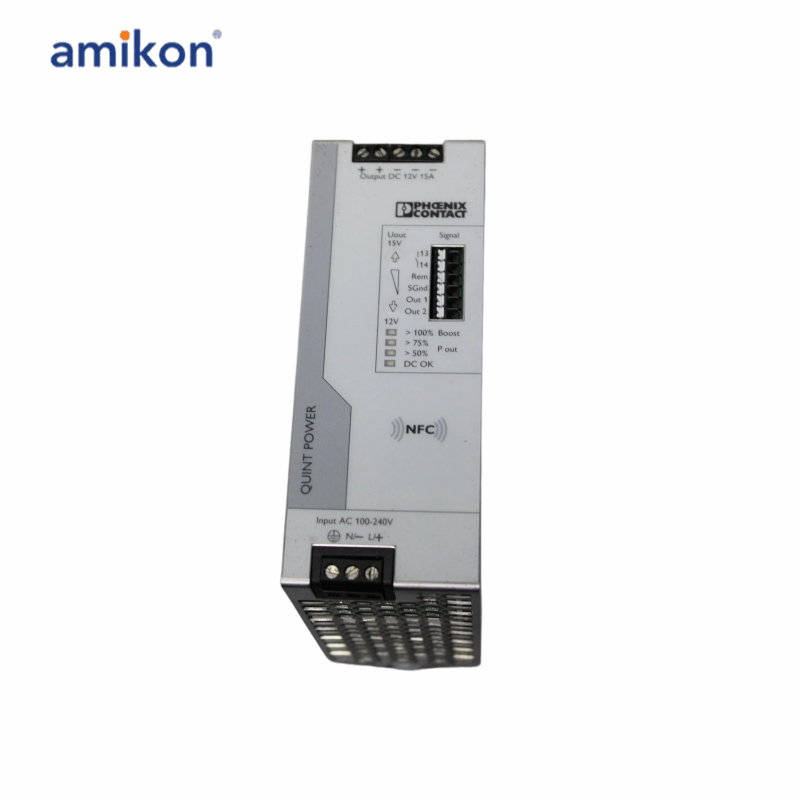

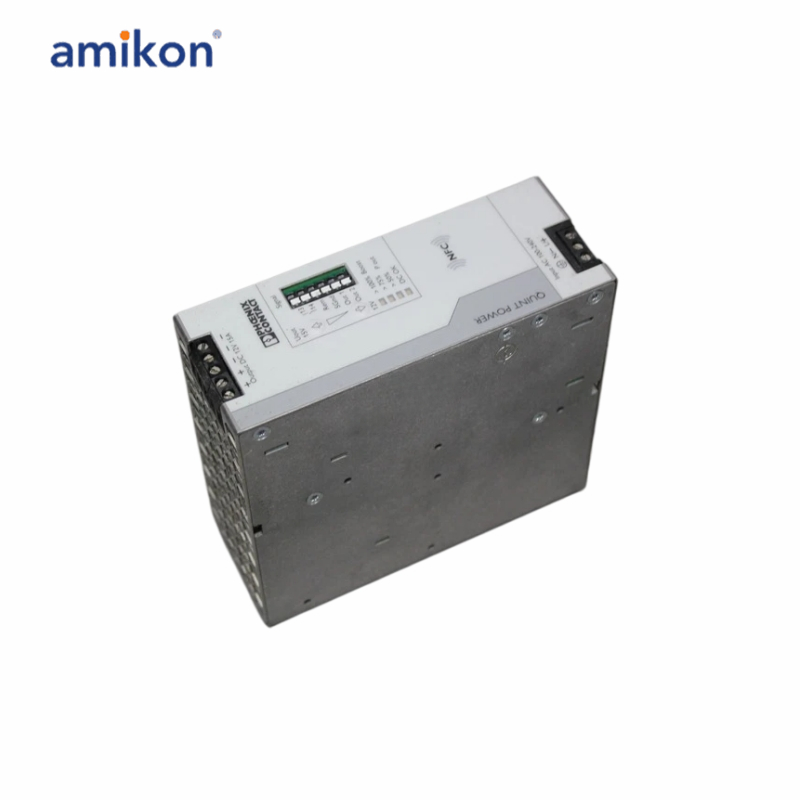

Product Model	QUINT4-PS/1AC/12DC/15
AC Operation
Nominal Input Voltage Range	100 V AC ... 240 V AC
Input Voltage Tolerance Range	100 V AC ... 240 V AC -15 % ... +10 %
Max Electric Strength	300 V AC for 60 s
Typical National Grid Voltage	120 V AC / 230 V AC
Supply Voltage Type	AC
Typical Inrush Current (25 °C)	15 A
Inrush Current Integral (I2t)	< 0.6 A²·s
Inrush Current Limitation	15 A (after 1 ms)
AC Frequency Range	50 Hz ... 60 Hz -10 % ... +10 %
Rated Frequency Range (fN)	50 Hz ... 60 Hz -10 % ... +10 %
Rated Frequency Range (fN)	16.7 Hz (acc. to EN 50163)
Mains Buffering Time	Typ. 55 ms (120 V AC)
Mains Buffering Time	Typ. 56 ms (230 V AC)
DC Operation
Nominal Input Voltage Range	110 V DC ... 650 V DC
Input Voltage Tolerance Range	110 V DC ... 250 V DC -18 % ... +40 %
Supply Voltage Type	DC
Current Consumption	2.2 A (110 V DC)
Current Consumption	1 A (250 V DC)
Output Data
Nominal Output Voltage	12 V DC
Output Voltage Setting Range (USet)	12 V DC ... 15 V DC (constant capacity)
Nominal Output Current (IN)	15 A
Static Boost Current (IStat.Boost)	17.5 A
Dynamic Boost Current (IDyn.Boost)	20 A (5 s)
Selective Fuse Breaking Current (ISFB)	60 A (15 ms)
Magnetic Circuit Breaker Tripping Type	A1...A6 / B2...B6 / C1...C2 / Z1...Z6
Temperature Derating	> 60 °C ... 70 °C (2.5 %/K)
Feedback Voltage Resistance	≤ 25 V DC
Output Overvoltage Protection (OVP)	≤ 18 V DC

The fourth generation of the high-performance QUINT POWER power supplies ensures superior system availability by means of new functions. Signaling thresholds and characteristic curves can be individually adjusted via the NFC interface. The unique SFB technology and preventive function monitoring of the QUINT POWER power supply increase the availability of your application.

Frequently asked questions：

Q1: What is the Phoenix Contact QUINT4-PS/1AC/12DC/15?
A1: It is an industrial DIN-rail power supply designed to provide stable 12 V DC output power for and control system applications.

Q2: What is the QUINT4-PS/1AC/12DC/15 maximum electric strength of this power supply?
A2: The QUINT4-PS/1AC/12DC/15 maximum electric strength is 300 V AC for 60 seconds.

Q3: What national grid voltages are supported?
A3: The QUINT4-PS/1AC/12DC/15 unit supports typical AC input voltages of 120 V AC and 230 V AC.

Q4: What is the QUINT4-PS/1AC/12DC/15 feedback voltage resistance specification?
A4: The QUINT4-PS/1AC/12DC/15 feedback voltage resistance is ≤ 25 V DC.

Q5: What is the QUINT4-PS/1AC/12DC/15 output overvoltage protection level?
A5: The QUINT4-PS/1AC/12DC/15 output overvoltage protection (OVP) is limited to ≤ 18 V DC.
