Product Specifications

Manufacturer	National Instruments (NI)
Model Number	PCI-5122
Product Type	Oscilloscope
Analog Input Channels	2 channels
Sampling Rate	100 MS/s per channel
Resolution	14-bit
Bandwidth	100 MHz
Input Impedance	1 MΩ
Input Voltage Range	Programmable
Onboard Memory	Up to 256 MB

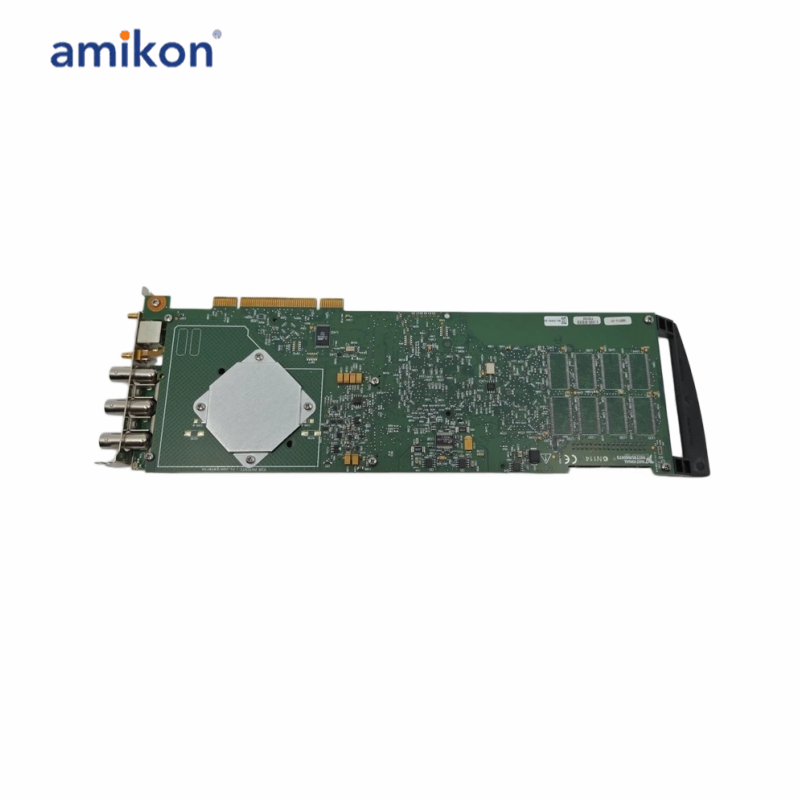

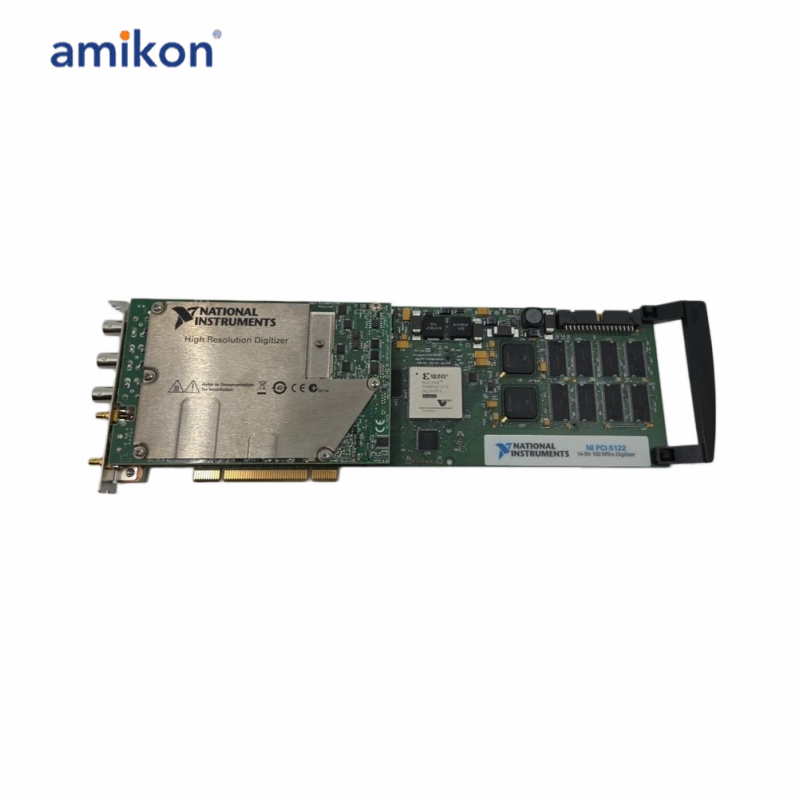

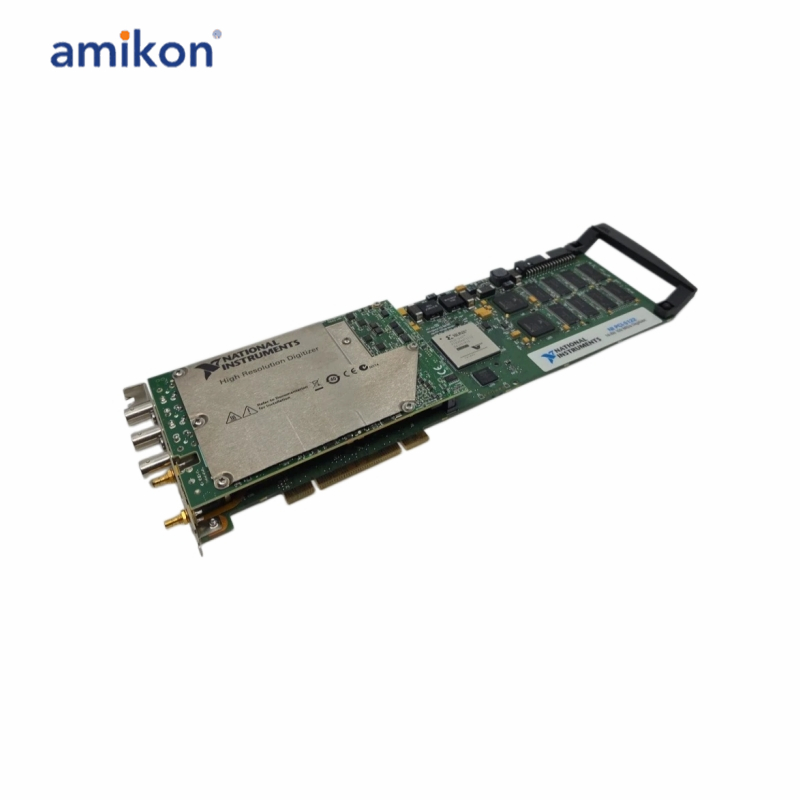

The National Instruments PCI-5122 / PXI-5122 high-resolution digitizer is suited for a wide variety of applications in automotive, communications, scientific research, military/aerospace, and consumer electronics. With the large dynamic range, software-selectable 50 Ω or 1 MΩ input, ranges from 200 mV to 20 V (up to 100 V with TEGAM signal conditioning amplifier), and ability to acquire more than 1 million waveforms in onboard memory, the PXI-5122 is ideal for both time- and frequency-domain analysis. You can program more than 50 built-in measurement and analysis functions directly from the driver and expand them to more than 400 with NI LabVIEW and LabWindows™/CVI software. The PXI-5122 (32, 256, and 512 MB models only) includes the NI Spectral Measurements Toolkit, which provides additional sophisticated frequency-domain measurements such as power spectrum, peak power and frequency, in-band power, adjacent-channel power, and 3D spectrogram.

Frequently asked questions：

Q1: What is the National Instruments PCI-5122?
A1: It is a high-speed PCI-based digital oscilloscope designed for signal acquisition, waveform analysis, and automated test applications.

Q2: How many input channels does this oscilloscope provide?
A2: The PCI-5122 features 2 analog input channels for simultaneous signal measurement.

Q3: What is the PCI-5122 sampling rate?
A3: The PCI-5122 oscilloscope supports a sampling rate of 100 MS/s (mega samples per second) per channel.

Q4: What is the PCI-5122 resolution of the device?
A4: It provides 14-bit resolution for accurate waveform capture and signal analysis.

Q5: What is the PCI-5122 bandwidth of the oscilloscope?
A5: The PCI-5122 offers a bandwidth of 100 MHz.

Product Applications

Communication and RF Signal Analysis
Automotive Electronic Pulse Testing
Defense and Military Equipment Inspection
Research and Experimental Testing
Consumer Electronics Research and Development
Power Electronics Monitoring
