Product Specifications

Model Number	A9C30212
Pole Contact Composition	2 NO
Rated Current [In]	16 A
Network Type	AC
Control Circuit Voltage [Uc]	48 V AC 50/60 Hz；24 V DC
Network Frequency	50/60 Hz
Rated Operational Voltage [Ue]	250 V AC 50/60 Hz
Switching Frequency	100 switching operations/day
Switching Frequency	5 switching operations/minute
Impulse Duration	50 ms … 1 s
Relative Humidity	95 % at 55 °C
Operating Ambient Temperature	-20 … 50 °C
Storage Ambient Temperature	-40 … 70 °C

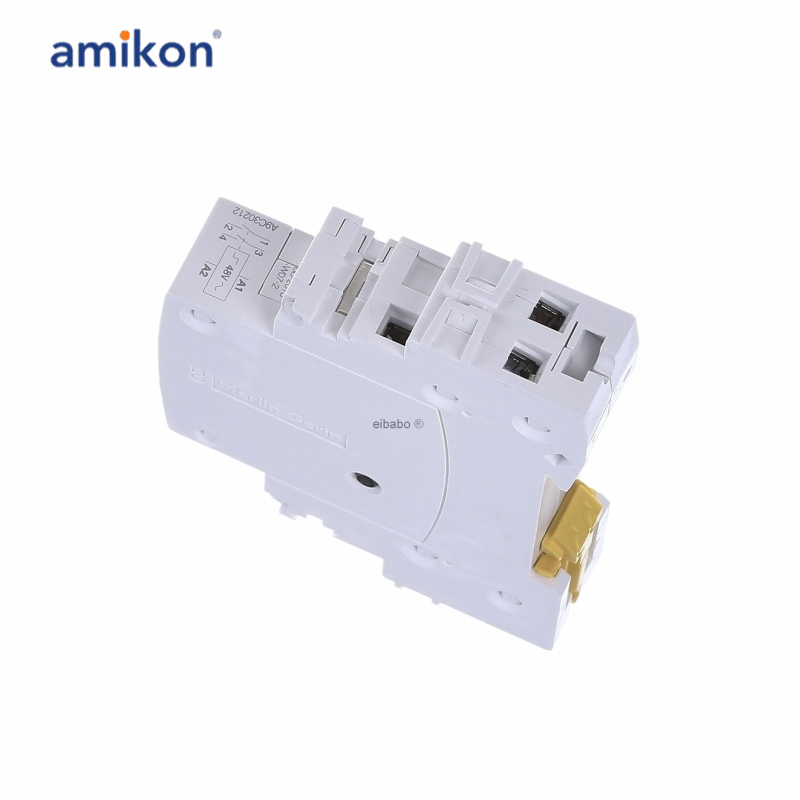

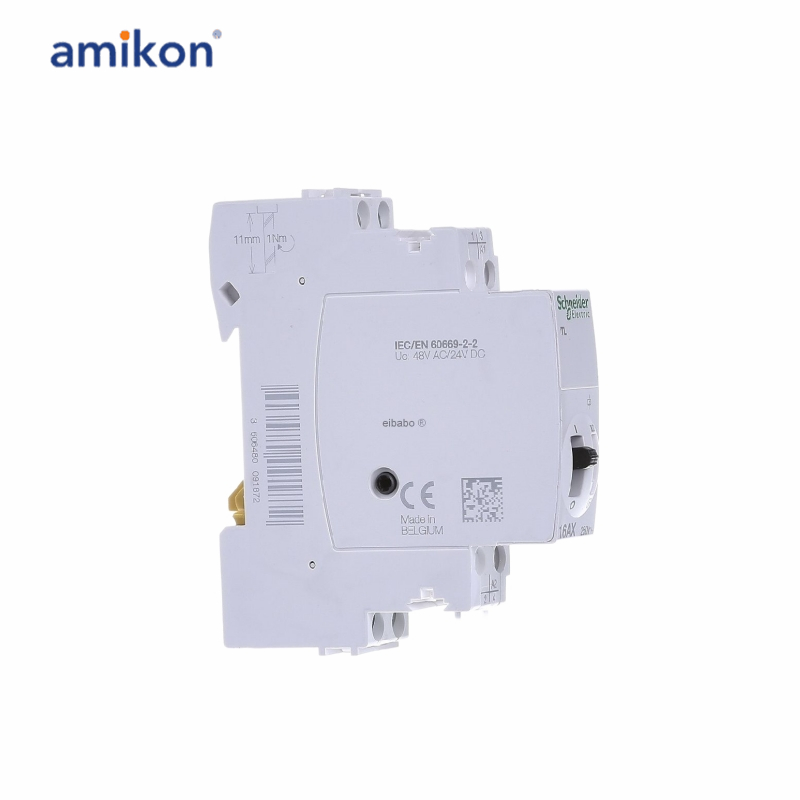

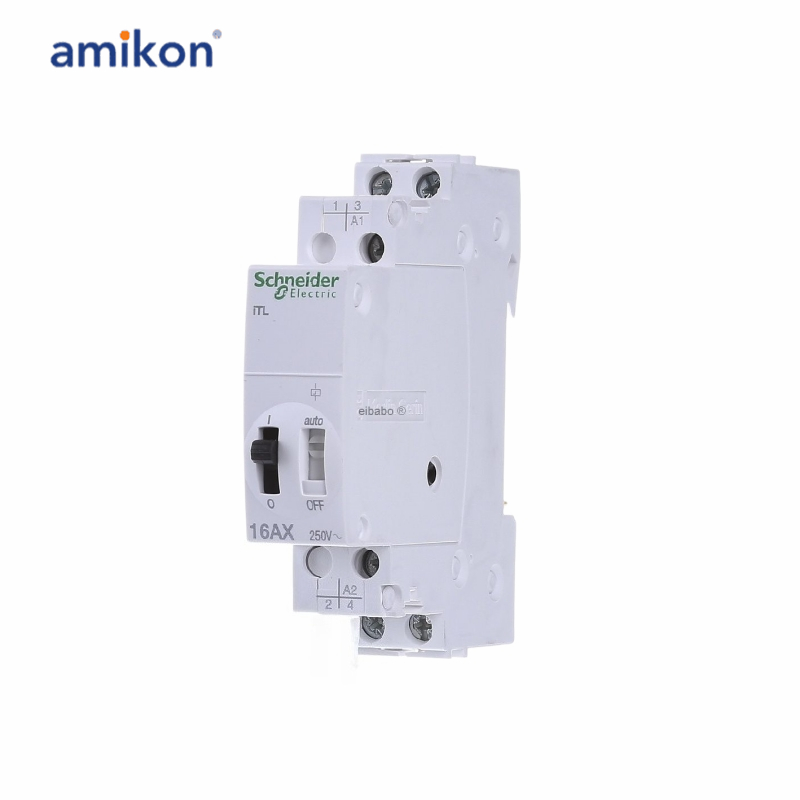

This Acti9 iTL is a modular impulse relay. This 2P device has 2 normally open contacts. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 48VAC or 24VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 100 switching operations/day or 5 switching operations/minute. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.

Frequently asked questions：

Q1: What is the Schneider A9C30212 Modular Impulse Relay?
A1: It is a modular impulse (latching) relay used in electrical control systems to switch circuits on and off using momentary control signals.

Q2: What is the A9C30212 control circuit voltage (Uc)?
A2: The A9C30212 control circuit supports 48 V AC (50/60 Hz) and 24 V DC.

Q3: What is the A9C30212 rated operational voltage (Ue)?
A3: The A9C30212 rated operational voltage is 250 V AC (50/60 Hz).

Q4: What is the A9C30212 network frequency?
A4: The relay operates at 50/60 Hz, compatible with standard electrical systems.

Q5: What is the A9C30212 operating ambient temperature range?
A5: It operates within −20°C to +50°C, suitable for general industrial and building applications.

Product Applications

Industrial manufacturing plant
Architecture and infrastructure
Lighting control system
Motor control
