Product Specifications

Part Number	BSH1402P21A2A
Maximum Mechanical Speed	4000 rpm
Maximum Supply Voltage	480 V
Phases	Three phase (3 phases)
Continuous Stall Current	13.2 A
Maximum Continuous Power	4.2 W
Maximum Permanent Current	44.1 A
Torque Constant	1.47 N·m/A (at 120 °C)
Back EMF Constant	101 V/krpm (at 120 °C)
Rotor Inertia	12.68 kg·cm²
Stator Resistance	0.6 Ohm (at 20 °C)
Max Copper Winding Hot Temperature	120 °C
Max Magnet Hot Temperature	100 °C
Magnet Reference Temperature	20 °C

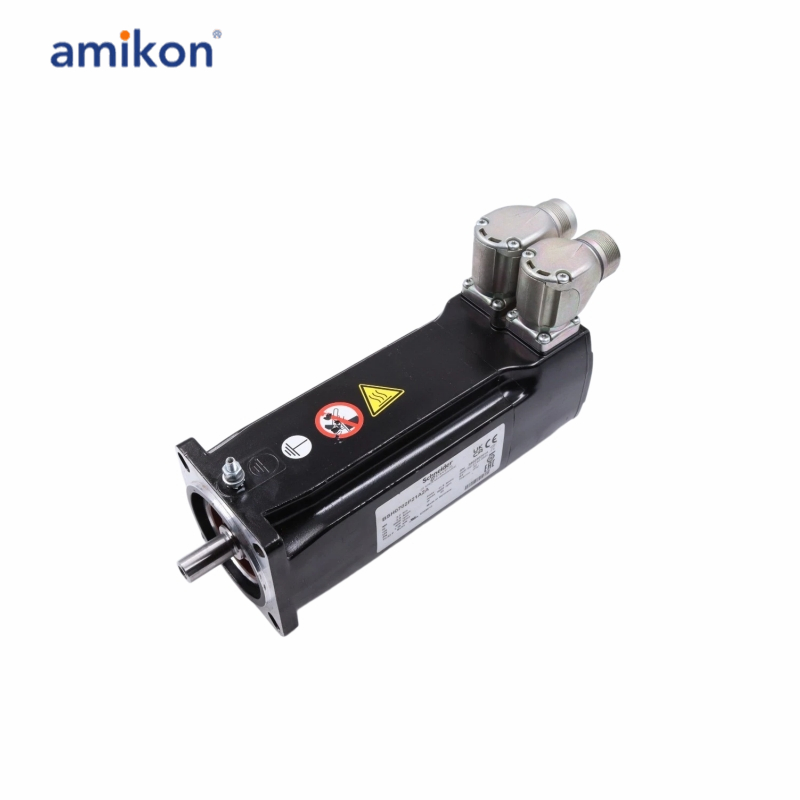

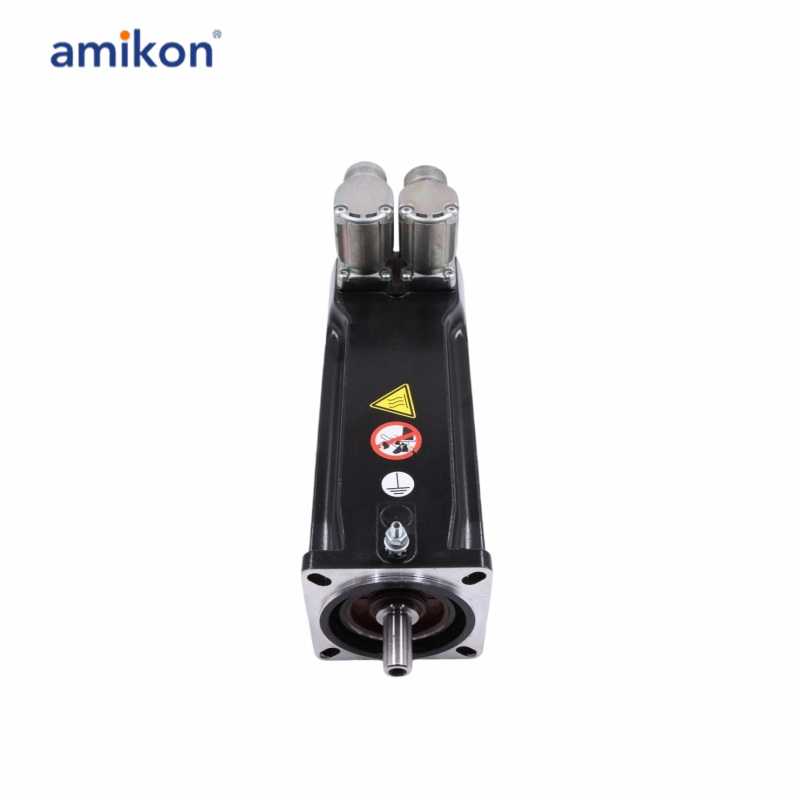

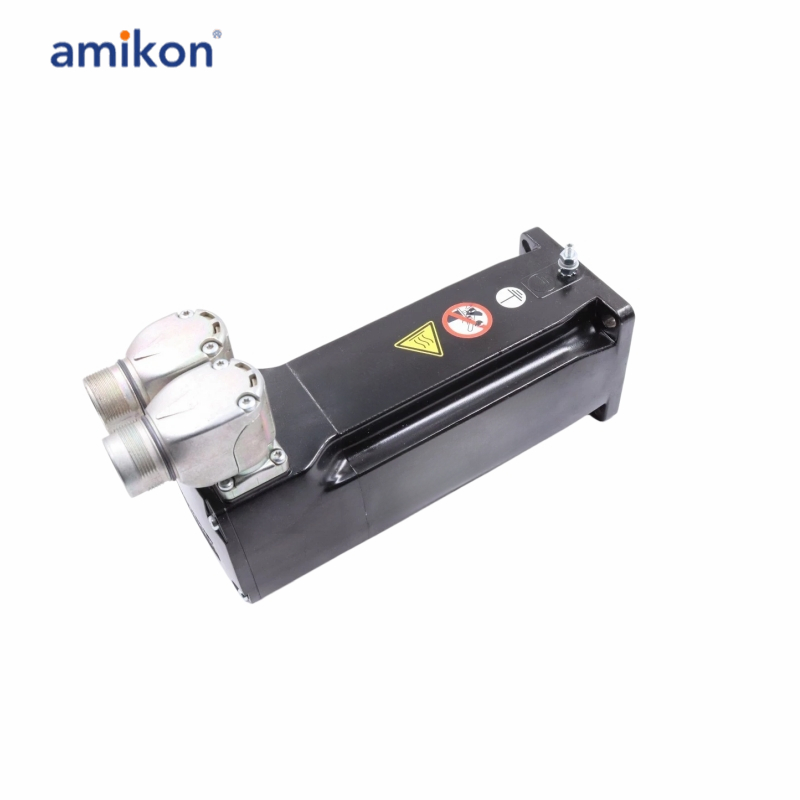

The Schneider BSH1402P21A2A AC Servo Motor is a high-performance motion control motor intended for applications that require fast response, precise positioning, and dependable operation.This three-phase synchronous servo motor is capable of reaching a maximum mechanical speed of 4000 rpm and supports supply voltages up to 480 VAC. Its robust electrical design ensures smooth torque delivery and efficient power utilization across a wide operating range. The motor provides a continuous stall current of 13.2 A and a maximum permanent current of 44.1 A, enabling strong acceleration capabilities and stable performance under varying load conditions. These characteristics make the BSH1402P21A2A an effective solution for demanding motion control environments where accuracy and reliability are essential.

Frequently asked questions：

Q1: What is the Schneider BSH1402P21A2A AC Servo Motor used for?
A: The Schneider BSH1402P21A2A is an AC servo motor designed for high-precision motion control. It is widely used in industrial systems that require accurate positioning, speed control, and dynamic performance.

Q2: What is the continuous stall current of the BSH1402P21A2A?
A: The BSH1402P21A2A motor has a continuous stall current of 13.2 A, allowing it to maintain rated torque while stationary under appropriate operating conditions.

Q3: What is the BSH1402P21A2A maximum permanent current of this servo motor?
A: The BSH1402P21A2A supports a maximum permanent current of 44.1 A, enabling it to handle demanding operating conditions and dynamic load changes.

Q4: What is the maximum supply voltage of the BSH1402P21A2A?
A: The BSH1402P21A2A servo motor supports a maximum supply voltage of 480 V, making it suitable for industrial power systems and high-performance servo drive applications.

Product Applications

Packaging Machinery
Material Handling and Conveying
Textile Machinery
Printing Equipment
Metalworking and Machine Tools
