Product Specifications

Product No	6AV6642-0EA01-3AX0
Product Type	Touch Multi Panel
Processor	32-bit RISC, 520 MHz
Maximum Main Memory Capacity	128 Mbyte
Protection Rating	IP65
Operating Ambient Temperature	0°C ~ 50°C
Storage & Transportation Ambient Temperature	-20°C ~ 70°C
Supported Online/Runtime Languages	5
Languages Available Per Single Project	32

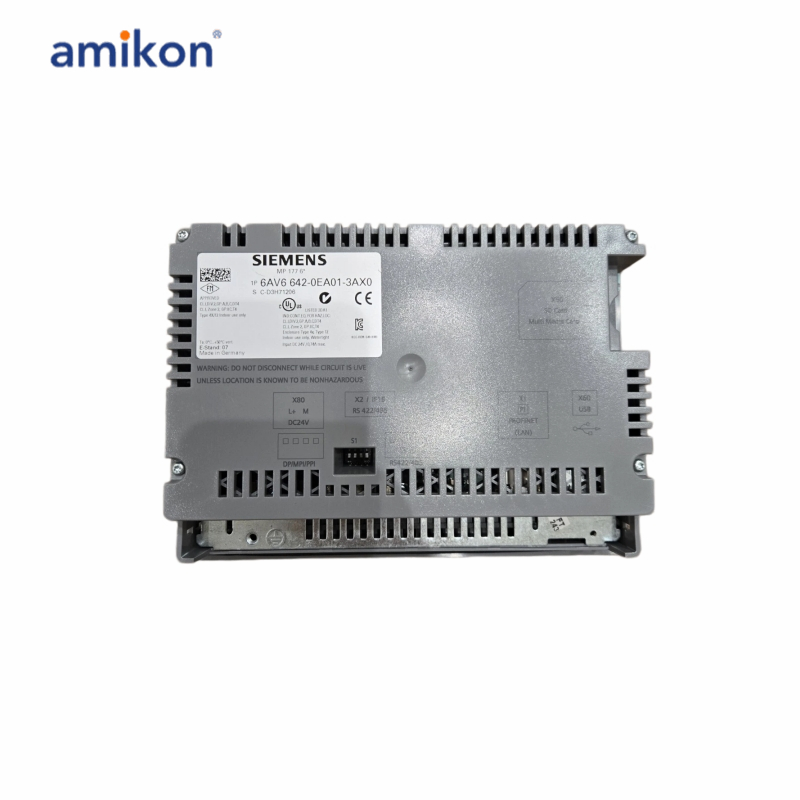

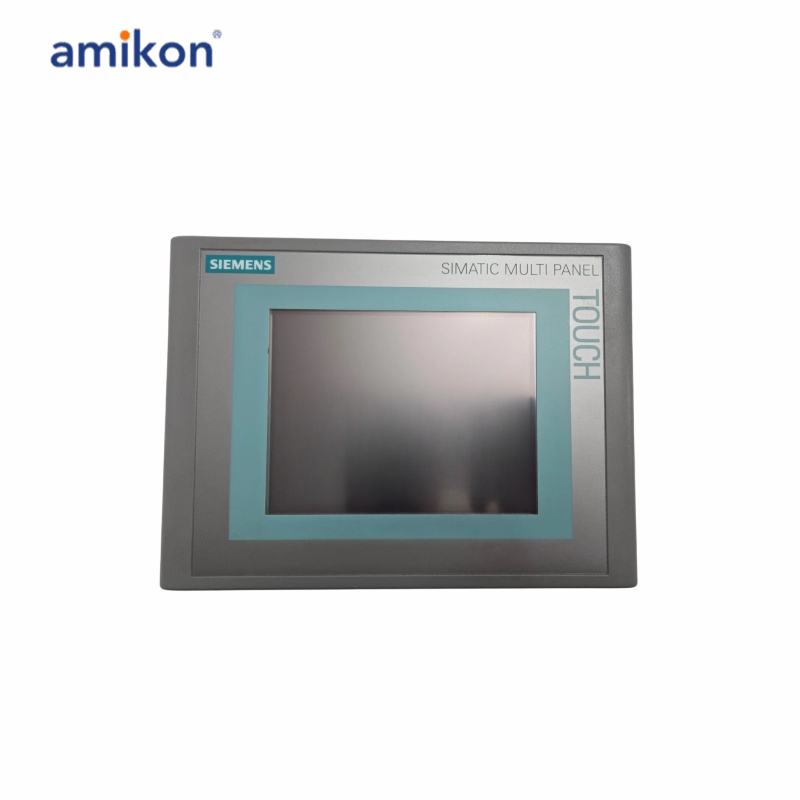

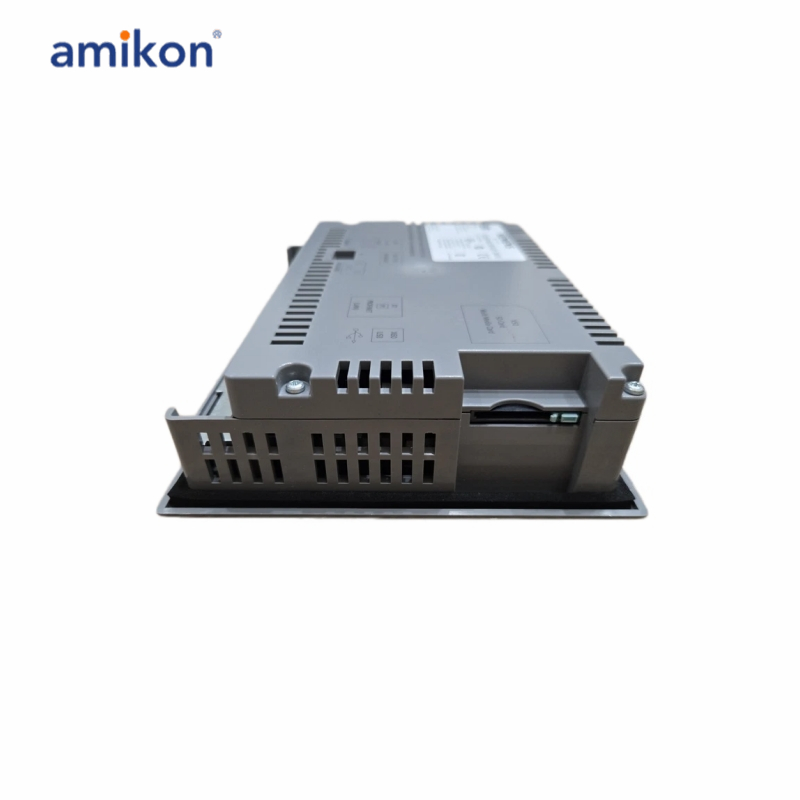

The Siemens 6AV6642-0EA01-3AX0 Touch Multi Panel is a SIMATIC MP 177 HMI operator panel designed to provide efficient visualization, monitoring, and control of industrial processes.

The panel is equipped with a 5.7-inch TFT display offering 320 × 240 pixel resolution and 65,536 colors for clear process visualization. It utilizes an analog resistive touchscreen with on-screen alphanumeric and numeric keyboards, eliminating the need for dedicated function keys while providing simple and reliable operation in industrial environments. A RISC 32-bit 520 MHz processor, 128 MB of main memory, and 2 MB of configuration memory ensure responsive performance for HMI applications.Designed for flexible connectivity, the 6AV6642-0EA01-3AX0 includes Ethernet (RJ45), RS-422, RS-485, and USB interfaces, supporting communication with SIMATIC controllers and industrial networks.

Frequently asked questions：

Q1: What is the Siemens 6AV6642-0EA01-3AX0 Touch Multi Panel?
A: The Siemens 6AV6642-0EA01-3AX0 is a Touch Multi Panel HMI designed for industrial applications, providing operators with an intuitive interface for monitoring, controlling, and managing production processes.

Q2: What processor does the 6AV6642-0EA01-3AX0 use?
A: The panel is equipped with a 32-bit RISC processor running at 520 MHz, delivering reliable performance for visualization, data handling, and operator interaction tasks.

Q3: How much memory does the 6AV6642-0EA01-3AX0 Touch Multi Panel provide?
A: The unit supports a maximum main memory capacity of 128 MB, enabling efficient execution of HMI applications and storage of process data.

Q4: How many languages can be configured in a single project?
A: The panel supports up to 32 languages per project, making it ideal for multinational facilities and machine builders serving global markets.

Product Applications

Automotive manufacturing and assembly plants
Food, beverage, and pharmaceutical plants
Packaging and printing machinery plants
Water treatment and environmental protection plants
Metallurgical, power, and chemical plants

Grab an Extra Discount - Contact Sales Manager Lisa Lin Today :
:sales7@amikon.cn :+86-18965423501 :AMKPLC

We provide a 12-month warranty and worldwide stock availability to guarantee smooth integration and prompt delivery for your daily operations.
