Product Specifications

Manufacturer	Siemens
Product Line	SIMATIC
Part Number	6AV6647-0AH11-3AX0
Product Name	Operator Interface
Screen Diagonal	3.6 in
Display Width	87 mm
Display Height	31 mm
Display Colors	4 colors (white, red, green, yellow)
Power Consumption	3 W
Protection Rating	Front: IP65，Rear: IP20
Screen Resolution	128 × 64 pixels
Communication Interface	PROFINET
Operating Temperature	0°C ~ +50°C
Relative Humidity	95% RH, non-condensing
Supply Voltage	24 V DC ± 20%

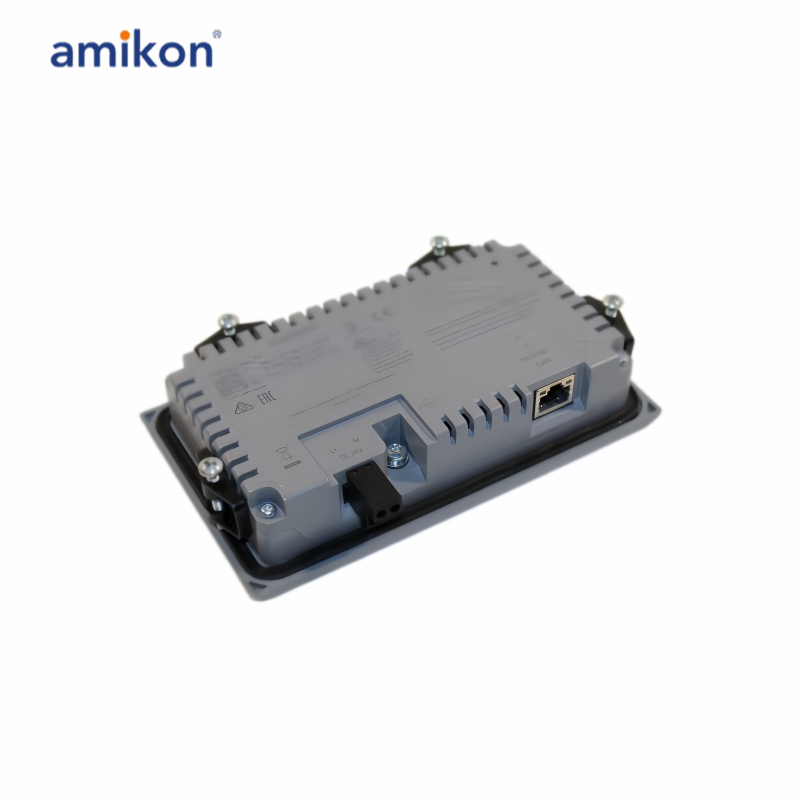

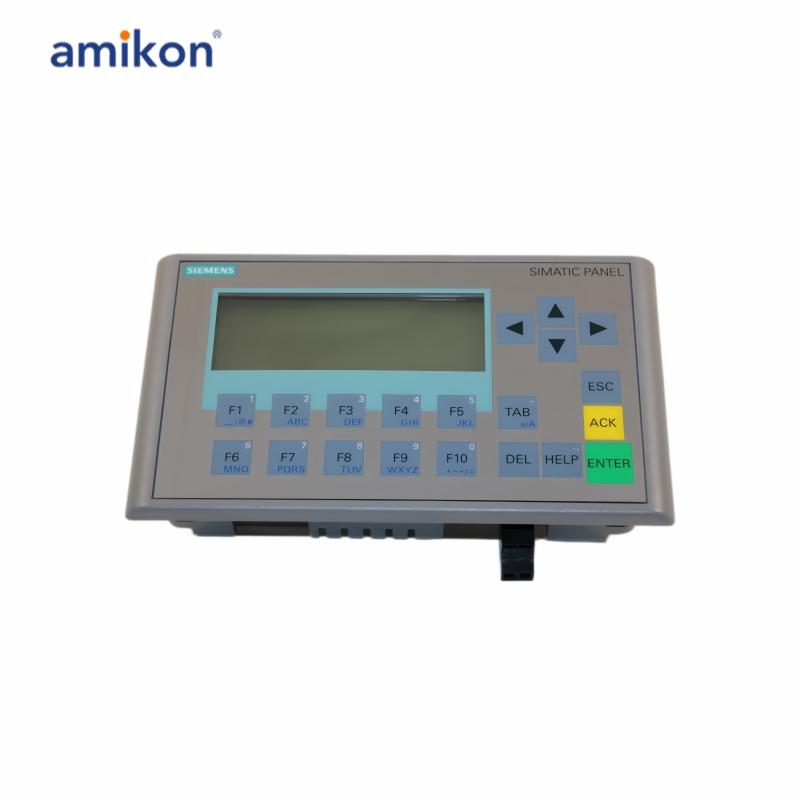

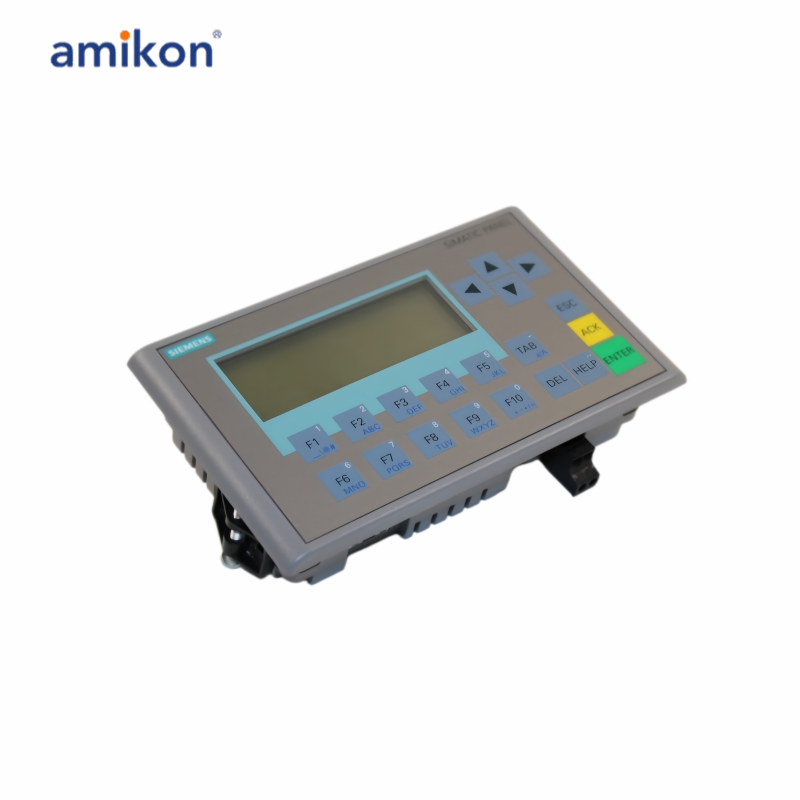

The Siemens part number 6AV6647-0AH11-3AX0 is a versatile operator interface tailored for industrial use. It features a FSTN LCD display that measures 3.6 inches diagonally and is equipped to present information in four distinct colors: white, red, green, and yellow. This interface is well-designed for environmental resilience, sporting a front protection rating of IP65 and a back rating of IP20.
It measures 87 mm wide and 31 mm tall, allowing for a compact installation. The unit operates effectively within a temperature range of 0°C to +50°C and can withstand relative humidity levels up to 95%, provided there is no condensation present.

Frequently asked questions：

What is the screen size and resolution of the KP300 Basic mono PN?
It features a 3.6-inch FSTN monochrome LCD screen with a resolution of 240 x 80 pixels.

What is the required supply voltage?
It operates on a nominal 24 V DC power supply (permissible range is 19.2 V to 28.8 V).

What is the maximum number of screens I can create in a project?
The system limit restricts configuration to a maximum of 50 screens.

How much user memory does this HMI panel offer?
It has 1 MB of integrated flash memory dedicated to storing the user configuration project.

Product Applications

Packaging and printing machinery industry
Food and beverage processing plants
Environmental protection and water treatment industry
