Product Specifications

Manufacturer	Siemens
Product Line	SINAMICS
Part Number	6SL3120-1TE31-3AA3
Module Type	Single motor module
Rated Current	132 amps
Base Load Current	105 amps
Intermittent Duty Current	150 amps at 40% duty cycle
Peak Current	210 amps
Output Voltage Range	0 to 0.717 times DC-link voltage
DC-Link Voltage Range	510 to 720 volts
DC-Link Capacitance	2820 µF
Electronics Power Input	24 VDC (20.4 to 28.8 V range)
Total Power Dissipation	1270.4 watts
Cooling System	Internal and mounted fan
Cooling Airflow Requirement	520 m³/h
Maximum Ambient Temperature	40 °C without derating
Pulse Frequency Limit	4 kHz maximum (16 kHz with derating)

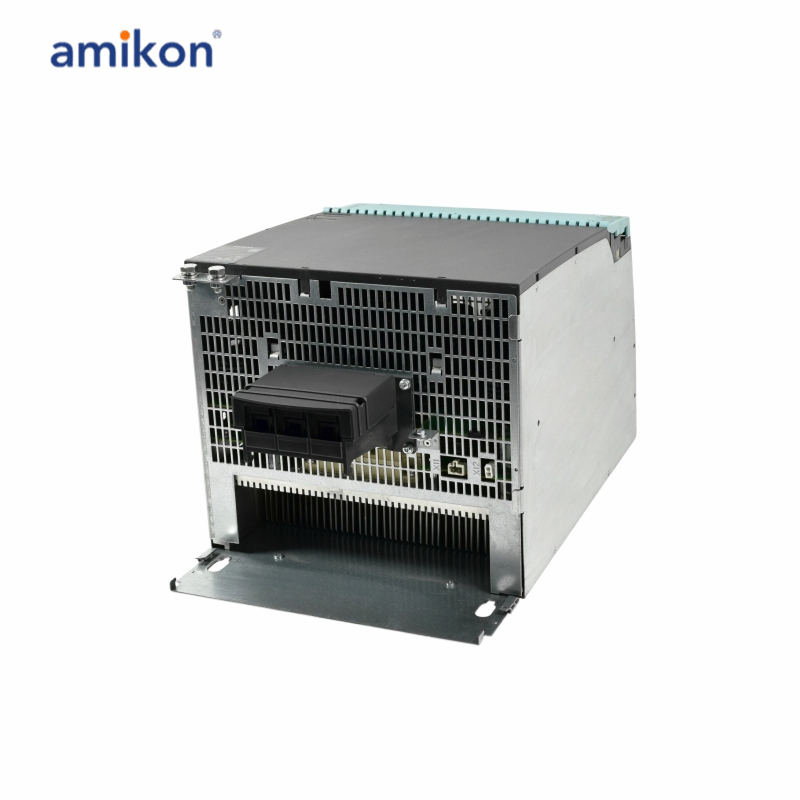

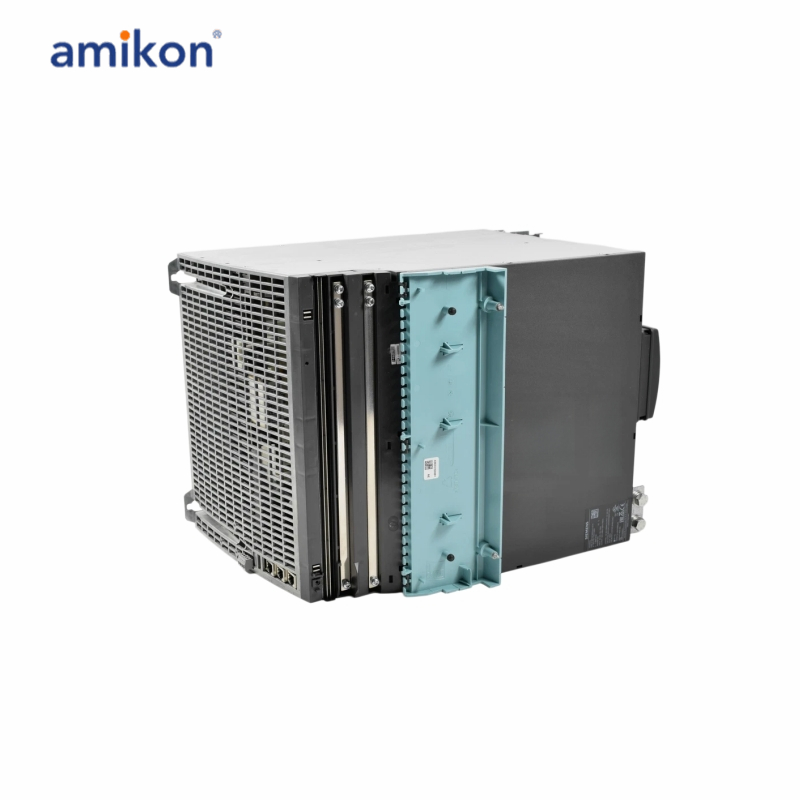

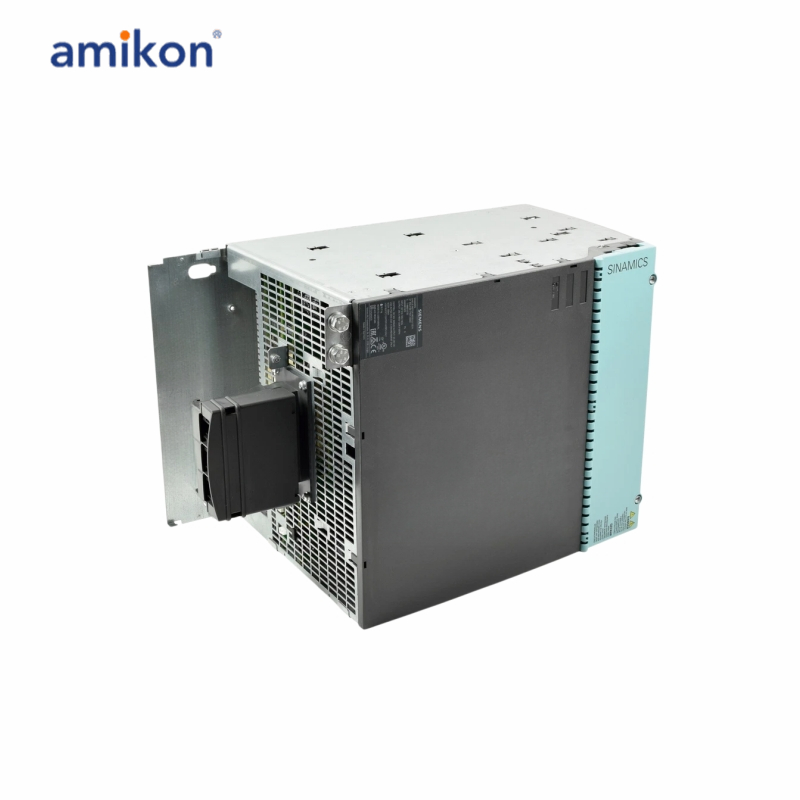

Siemens' model 6SL3120-1TE31-3AA3 is part of the SINAMICS series and is a booksize single motor module. This component can accommodate a rated current of 132 amps and supports a base load current of 105 amps. For short durations, it can manage an intermittent duty current of 150 amps at a 40% duty cycle, with a peak current threshold of 210 amps.

The output voltage for this module can range from 0 to 0.717 times the DC-link voltage, which operates within a range of 510 to 720 volts. The module features a DC-link capacitance of 2820 microfarads, providing stability during operation. An electronics power input of 24 VDC is required, with an acceptable input range from 20.4 to 28.8 Volts.

Frequently asked questions：

Q : What is the Siemens 6SL3120-1TE31-3AA3?
It is a SINAMICS S120 booksize single motor module designed for high-performance multi-axis motion control applications.

Q : What is the rated output current of this module?
The rated output current is 132 A, with a peak current capability of up to 210 A.

Q : What is the input DC link voltage required for this module?
It operates on a DC link voltage rating of 510 V DC to 720 V DC.

Q : Do I need to connect a separate 24 V DC supply to this module?
Yes, a 24 V DC electronic power supply via the red/blue busbars is required to power the internal control electronics.

Product Applications

Heavy-duty machine tool manufacturing
Metallurgy and metal rolling
Paper and printing machinery
Rubber and plastics and large extrusion machinery
Lifting and material handling
