Technical specifications for 5094-AEN2TR

Part Number	5094-AEN2TRXT
Adapter Type	FLEX 5000 EtherNet/IP Adapter with RJ45 Ports
Voltage and current ratings, MP	18...32V DC, 1880 mA
Voltage and current ratings, MP inrush	18...32V DC, 5700 mA for 100 ms
Voltage and current ratings, backplane	15V DC, 1800 mA
Recommended external overcurrent protection	MOD Power: 10...12A @ 22.5...43.2 A2t, Fast ActingSA Power: 20 A @ 250V AC
Power dissipation, max	6.2 W @ 18V DC
Thermal dissipation, max	21.1 BTU/hr @ 24V DC

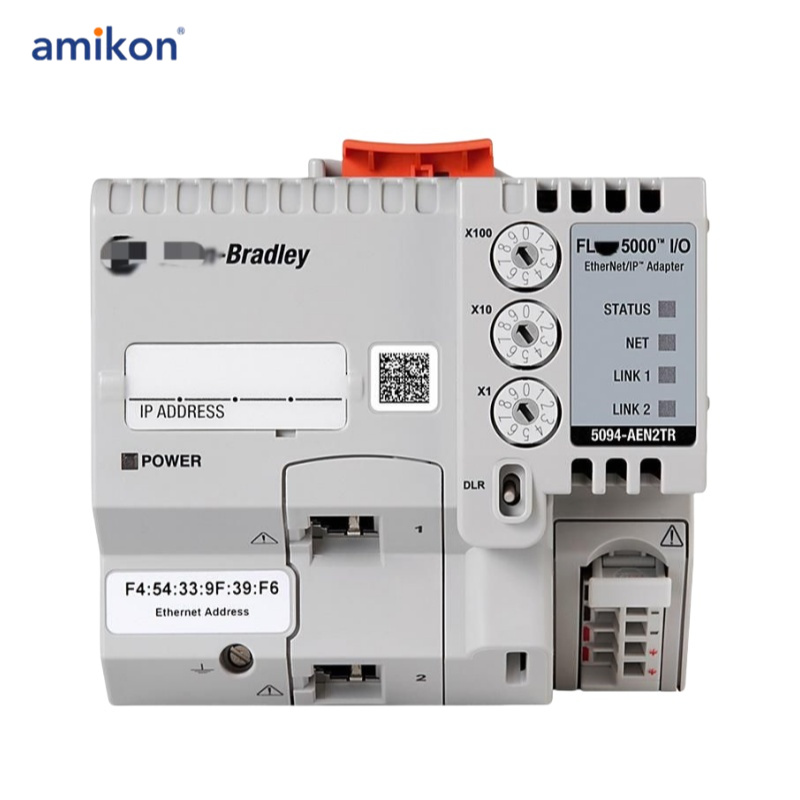

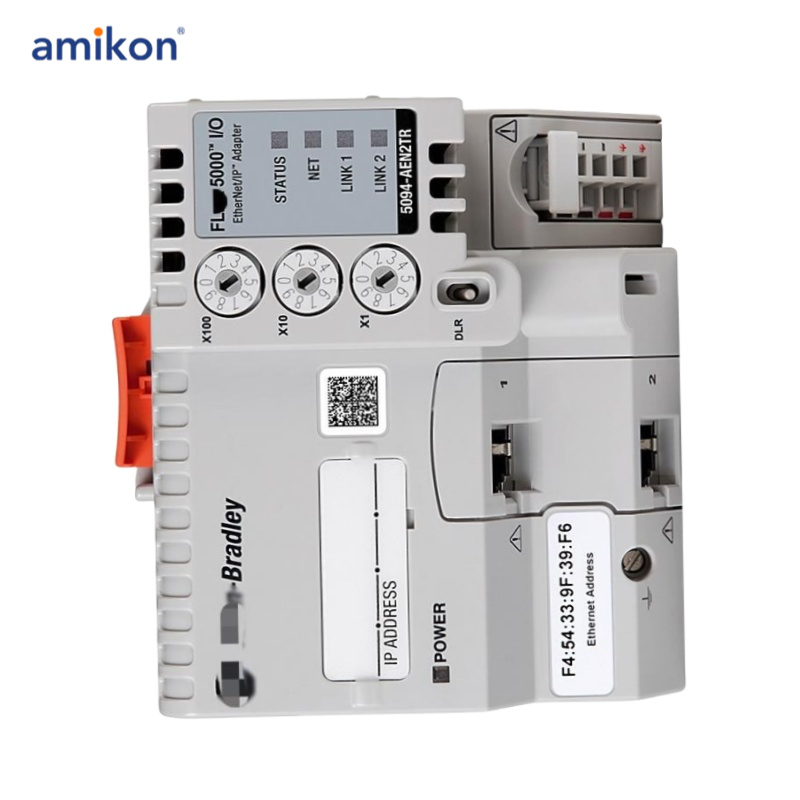

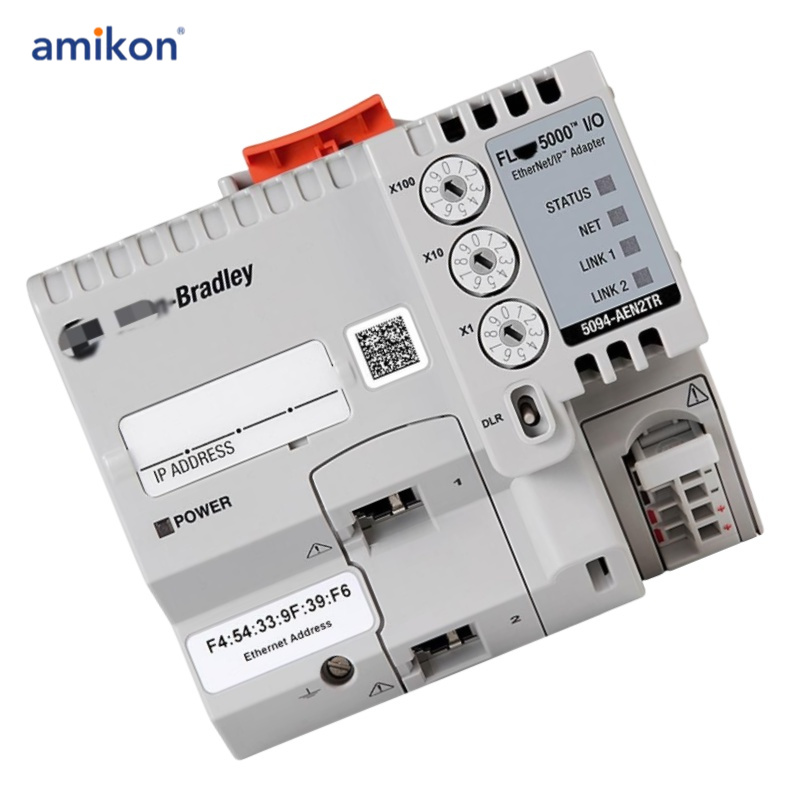

The 5094-AEN2TR adapter is an RJ45-enabled Ethernet/IP adapter designed for high-speed data transfer over an Ethernet/IP network between a Flex 5000 Input/Output module and a Logix 5000 controller. This model supports up to 16 Flex 5000 I/O modules simultaneously. It is intended for industrial use in environments that require rugged equipment, with an open enclosure suitable only for indoor applications. The adapter can be mounted on a DIN Rail and comes with a removable terminal block. It features a reset lever and a DIN Rail latch, as well as an IP address label on the front. Additionally, two RJ45 Ethernet ports are included, along with functional earthing and the adapter's Ethernet address.

The 5094-AEN2TR adapter is equipped with LED status indicators, which display machine status, network activity, and data transfer status via LINK 1 and LINK 2 indicators. It also includes an IP address rotary switch with corresponding LED indicators. The adapter complies with certifications such as c-UL-us, CE, RCM, and KC. It operates with a voltage range of 18 to 32 Volts DC and a current rating of 1880 milliamps, with an inrush current of 5700 milliamps for 100 milliseconds. The adapter works with a backplane current of 1800 milliamps and a backplane voltage of 15 Volts DC. It is designed to be used in environments free from dust, dirt, and harmful vapors or gases.
